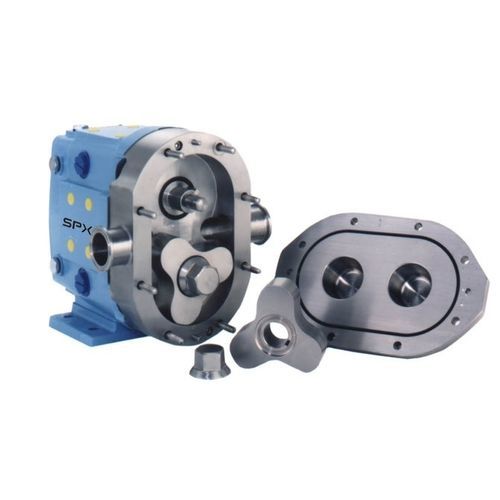

Gear pump Universal Lobe for food productsoilelectric
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Fluid
- for food products, oil
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Applications
- drain, sump
- Material
- stainless steel
- Fluid specification
- for low-viscosity fluids
- Protection level
- standard
- Other characteristics
- mechanical, vertical, bidirectional
- Flow
Min.: 7.5 m³/h
(264.86 ft³/h)Max.: 118.1 m³/h
(4,170.66214 ft³/h)- Pressure
Min.: 200 psi
Max.: 300 psi
- Length
Min.: 314 mm
(12 in)Max.: 703 mm
(28 in)- Width
Min.: 177 mm
(6.97 in)Max.: 406 mm
(15.98 in)- Height
Min.: 211 mm
(8.31 in)Max.: 568 mm
(22.36 in)- Weight
Min.: 29.5 kg
(65.04 lb)Max.: 406 kg
(895.08 lb)
Description
Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard.
Features:
No shaft alignment necessary. No coupling guard required.
Special base design enhances cleanability.
Reduces overall length of complete unit by an average of 20-25%.
Average of 20-25 gear ratios available per horsepower.
Separate oil sump for gear reducer and timing gears.
Options:
304 SS polished plate base.
NEMA or IEC frames available. Right angle reducer also available for
additional space savings.
1/2 through 60 horsepower drive options available.
Horizontal or vertical porting.
