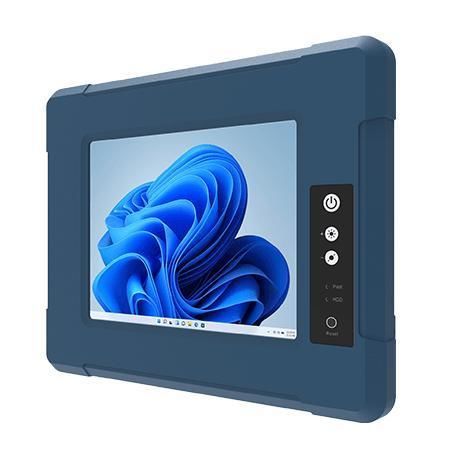

5-wire resistive touch screen panel PC R08IAN3S-VMU1

touch screen8.4"Intel® Processor N100

Overview
The R08IAN3S-VMU1 is an 8.4" vehicle-mount panel PC from the G-WIN VM series, engineered for mission-critical mobile industrial applications. It combines a fanless Intel® N100 processing option, MIL-STD shock and vibration resilience, front IP65 protection, and an isolated 10–60V DC input suitable for vehicle power systems.

Key features

• Intel® Processor N100 (page also lists Intel® Processor N150 in system spec)
• 8.4" display, 800 × 600 resolution, 600 nits brightness
• Front protection IP65 (except I/O)
• Aluminum housing with anti-corrosion treatment
• MIL-STD shock & vibration design (MIL-STD-810H/G references)
• 5-wire resistive touchscreen or optional anti-reflection protection glass
• Optional WLAN/Bluetooth (M.2 2230 E-Key)
• Isolated wide-range 10–60V DC input with optional ignition on/off control

Certifications

• CE
• FCC

Applications
Designed for vehicle-mounted industrial computing such as forklifts, warehouse vehicles and other mobile platforms where space is limited and reliability under shock, vibration and dust/water exposure is required.

Technical specifications

• Model: R08IAN3S-VMU1
• Processor: Intel® Processor N100 6M Cache, up to 3.40 GHz (system spec may list Intel® Processor N150 up to 3.60 GHz)
• Memory: 8 GB (default); 16 GB (optional)
• Storage: 128 GB SSD (default); options to 256/512 GB, 1/2/4 TB
• Ethernet: 2 × Intel® 2.5 Gb Ethernet
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 24.04 (optional)
• Display: 8.4", 800×600, 600 nits, contrast 600:1
• Touch: 5-wire resistive (optional) / Protection glass (optional)
• Dimensions: 277 × 219.5 × 59.6 mm; Weight: 2.2 kg
• Mounting: VESA (default); Yoke mount (optional)
• Environmental: Operating -10°C to 55°C; Storage -30°C to 70°C; 10–90% RH non-condensing
• Shock & vibration: MIL-STD-810G/H references (see spec)
• Front IP rating: IP65 (except I/O)
• IO: 2 × USB3.2 Gen1 Type-A; 1 × USB3.2 Gen2 Type-C (DP Alt Mode); 2 × 2.5G LAN; RS232/422/485 options; HDMI 2.0b (optional)
• Power: 1 × 10–60V DC isolated input (3-pin terminal); optional 100–240V AC→DC 84W adapter
• Indicators & buttons: Power LED, Storage LED, Power/Reset/Brightness Up/Down
• Accessories: Open wire cable with terminal block connector, VESA screws; optional yoke mount and AC adapter
