Resistive touch screen panel PC R15IAD3S-VMC3(HB)

1000 nitssunlight-readable15"

Overview

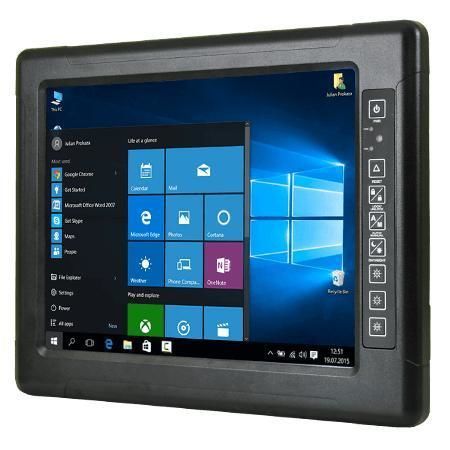

The R15IAD3S-VMC3(HB) is a 15" vehicle-mount Panel PC in the G-WIN family, powered by a 12th Gen Intel® Core™ i5-1235U. It is engineered for mobile industrial environments with front IP65 operator protection, fanless passive cooling, aluminum housing with anti-corrosion treatment, and a wide 9–36V DC isolated power input. Optional vehicle functions include ignition on/off control, GPS, WWAN/WLAN and GPIO/CANbus; an optional high-brightness panel (up to 1000 nits) improves sunlight readability.

Key Features

• 15" display, 1024 × 768 resolution (300 nits default; 1000 nits optional)
• Intel® Core™ i5-1235U (12th Gen)
• Wide operating temperature: -10°C to +55°C
• Aluminum enclosure with anti-corrosion treatment; fanless (passive) cooling
• 9 ~ 36V DC isolated wide-range power input; optional ignition on/off control
• Resistive touch or protection glass (anti-reflective) options
• Front IP65 protection (excluding I/O)
• Optional shock & vibration compliance to MIL-STD-810F/G
• Optional GPS, WWAN/WLAN, GPIO or CANbus per configuration

Certifications

• CE
• FCC

Design & Ruggedness
The front IP65 rating protects the operator-facing side from dust and water splashes, making the unit suitable for harsh vehicle cabins. The aluminum die-cast housing with anti-corrosion treatment improves durability in industrial environments. Fanless passive cooling reduces maintenance and increases reliability in dusty and vibration-prone conditions.

I/O and Expandability
The R15IAD3S-VMC3(HB) offers a comprehensive I/O set for vehicle integration: multiple USB ports, serial ports (RS232/422/485), dual 2.5 Giga LAN, optional HDMI, M.2 expansion for NVMe SSD and Wi‑Fi module, and terminal-block options for DIDO or CANbus interfaces. Status LEDs and front controls support onboard operation and diagnostics.

Typical Applications

• Vehicle-mounted operator stations (forklifts, warehouse vehicles)
• Logistics control screens and mobile industrial platforms requiring a robust 15" display and automotive power handling

Technical Specifications

• Model: R15IAD3S-VMC3(HB)
• Brand: Winmate
• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 1 x SO-DIMM DDR5 4800 MHz, 8GB default (16GB / 32GB optional)
• Storage: 1 x M.2 2280 M-Key NVMe SSD 256GB default (512GB / 1TB / 2TB optional)
• Ethernet: 2 x 2.5 Giga LAN (Intel® Ethernet Controllers)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / BT / WWAN: optional
• Touch / Glass: Resistive touch (optional) or protection glass without touch (optional)
• Display size: 15.0 inches; Resolution: 1024 × 768; Brightness: 300 nits (default) / 1000 nits (optional); Contrast: 2000:1; View angles: 88/88/88/88
• Active area: 304.1 × 228.1 mm
• Dimensions: 398 × 308 × 58 mm
• Weight: 4.2 kg
• Mounting: VESA mount (default); Yoke mount optional
• Enclosure: Aluminum housing with anti-corrosion treatment
• Cooling: Fanless passive cooling
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 55°C; Storage temperature: -30°C to 70°C
• Shock / Vibration: MIL-STD-810G (optional)
• IP rating: Front IP65 (except I/O)
• USB: 2 x USB3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: Power LED; Storage LED
• DIDO: Terminal block digital 4 in / 4 out (either DIDO or CANBUS)
• CANBUS: Terminal block 2-channel (either DIDO or CANBUS)
• Power input: 1 x 9~36V DC via 3-pin terminal block
• Buttons / Controls: Power, Reset, Front Lock/Unlock, Auto Dimming/Manual, Day/Night mode, Brightness Up/Down, LED indicator brightness adjust, Light sensor
• Accessories (included): Open wire cable with terminal block connector, VESA screws
• Optional accessories: Yoke mount stand; 100~240V AC to DC 120W adapter with power cord
