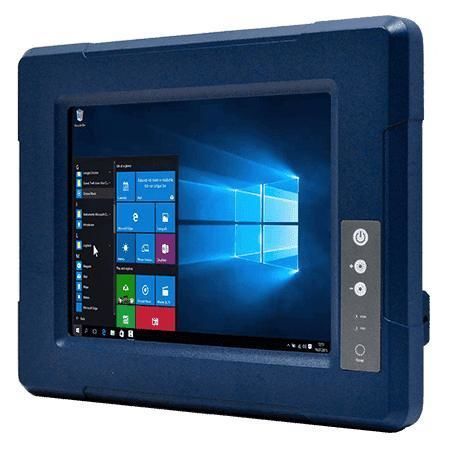

LCD panel PC R10IAD3S-VMT2(HB)

resistive touch screen1000 nits10.4"

Overview
Winmate R10IAD3S-VMT2(HB) is a 10.4″ vehicle-mount panel PC built for mobile industrial platforms such as forklifts, warehouse vehicles and rolling stock. It features an aluminum housing with anti-corrosion treatment, fanless passive cooling, front IP65 protection (except I/O), wide-range isolated 9–36V DC input and EN50155 design readiness for vehicle/rail applications.

Key Features

• 10.4″ 1024×768 display, 350 nits (optional 1000 nits high-brightness)
• 12th Gen Intel® Core™ i5-1235U processor (up to 4.40 GHz)
• Wide operating temperature: -10°C to +55°C
• Aluminum housing with anti-corrosion treatment; fanless (passive) thermal design
• Wide-range isolated 9–36V DC input; optional ignition on/off delay
• Resistive touch or protection glass (anti-reflective option)
• Front IP65 protection (except I/O parts)
• Shock & vibration compliance (MIL-STD referenced; optional MIL-STD-810G Method 516.6 Procedure I)

Certifications

• CE
• FCC

Product Highlights

• Front IP65 protects the operator-facing side from dust and water splash in vehicle environments
• Fanless passive cooling reduces noise and maintenance while improving reliability in dusty or vibration-prone settings
• Comprehensive I/O and expansion (USB, serial, 2.5G LAN, M.2 slots) for vehicle peripherals and networking
• Rugged aluminum die-cast enclosure with anti-corrosion treatment for extended field durability

Technical specifications

• Model: R10IAD3S-VMT2(HB)
• Brand: Winmate
• Series: G-WIN VM Series (Vehicle Mount Panel PC)
• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 1 x SO-DIMM DDR5 4800 MHz, 8GB default; options: 16GB, 32GB
• Storage: 1 x M.2 2280 M-Key NVMe SSD 256GB default; options: 512GB, 1TB, 2TB
• Ethernet: 2 x Intel® Ethernet Controller (2.5 Gbps, RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• Wireless: M.2 2230 E-Key slot for WLAN; Bluetooth optional
• Display: 10.4″, 1024×768, 350 nits (1000 nits option), contrast 1000:1, viewing angles 88/88/88/88
• Touch/Glass: Resistive touch or protection glass (anti-reflective option)
• Dimensions: 315 x 250 x 67 mm; Weight: 2.9 kg
• Mounting: VESA mount default; Yoke mount optional
• Environmental: Operating humidity 10%–90% RH non-condensing; operating temperature -10°C to 55°C; storage -30°C to 70°C
• Shock & Vibration: MIL-STD referenced (optional MIL-STD-810G Method 516.6 Procedure I)
• IP Rating: Front IP65 (except I/O)
• Power Input: 1 x 9~36V DC, 3-pin terminal block, isolated
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators & Buttons: Power LED, Storage LED; Power, Reset, Brightness Up/Down buttons
• Included accessories: Open wire cable with terminal block connector; VESA screws
• Optional accessories: Yoke mount; 100–240V AC to DC 120W adapter with cord
• Design compliance: EN50155 readiness for vehicle/rail applications
