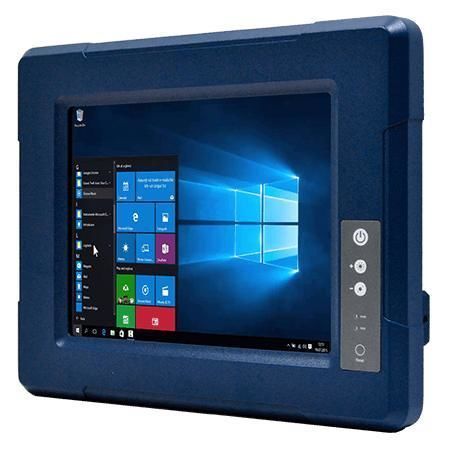

LCD panel PC R10IT3S-VMT2(HB)

resistive touch screentouch screen1000 nits

Overview
The Winmate R10IT3S-VMT2(HB) is a 10.4" vehicle-mount Panel PC engineered for in-vehicle industrial computing (forklifts, warehouse vehicles and mobile platforms). It features an Intel® Core™ i5-1135G7 CPU, front IP65 protection (excluding I/O), fanless cooling and 9–36V DC wide-range power input with optional ignition on/off control. Designed to meet EN50155 and shock/vibration resilience (MIL‑STD‑810F/G).

Key features

• 10.4" 1024×768 display (sunlight-readable/high-brightness options)
• Intel® Core™ i5-1135G7 processor
• Wide operating temperature: -10°C to +55°C
• Aluminum anti-corrosion housing; fanless passive cooling
• 9–36V DC isolated input; optional ignition on/off control
• Resistive touch or protection glass options
• Front IP65 (except I/O)
• MIL‑STD‑810F/G shock & vibration compliance
• EN50155 vehicle/rail design

Certifications

• CE
• FCC

Product details
Front-facing sealed bezel for operator-side protection, die-cast aluminum enclosure with anti-corrosion treatment, passive cooling fins and comprehensive I/O tailored for industrial integration and vehicle installations.

System specification

• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz — 4GB default (options: 8/16/32GB)
• Storage: 1 x M.2 2280 M-Key NVMe SSD 128GB default (options to 2TB)
• Ethernet: 2 x Intel® 2.5 Gbps controllers
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04
• WLAN / Bluetooth: optional (M.2 2230 E-Key)

Display

• Size: 10.4"; Resolution: 1024 x 768
• Touch/Glass: Resistive touch or protection glass (optional)
• Brightness: standard and high-brightness options (page lists 350 / 500 / 1000 nits depending on config)
• Contrast: 1000:1; View angles: 88/88/88/88; Active area: 210.4 x 157.8 mm

Mechanical

• Dimensions: 315 x 250 x 67 mm
• Weight: 2.9 kg
• Mounting: VESA (standard); Yoke mount optional
• Enclosure: Aluminum housing
• Cooling: Fanless (passive)

Environment

• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: -10°C to 55°C; Storage: -30°C to 70°C
• Shock: MIL‑STD‑810G Method 516.6 Proc I (optional)
• Vibration: MIL‑STD‑810G Method 514.6 Proc I
• IP rating: Front IP65 (except I/O)

IO ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: HDMI 2.0 (optional)
• Expansion: M.2 2230 E-Key slot (Wi‑Fi)
• Indicators: Power LED; Storage LED
• Power input: 9–36V DC via 3-pin terminal block

Control

• Buttons: Power, Reset, Brightness Up, Brightness Down

Accessories

• Included: Open wire cable with terminal block connector; VESA screws
• Optional: Yoke mount; 100–240V AC to DC 120W adapter with power cord

Product FAQs (summary)

• Typical use: vehicle-mounted industrial computing for forklifts, warehouse vehicles and mobile platforms.
• Fit: suitable for standard vehicle control panels and cabin-side HMIs.
• Benefits: sealed front IP65, fanless operation, wide DC input and optional ignition control for vehicle environments.

Technical specifications

• Model: R10IT3S-VMT2(HB)
• Brand: Winmate
• CPU: Intel Core i5-1135G7
• Memory: SO-DIMM DDR4 up to 32GB
• Storage: M.2 NVMe up to 2TB
• Display: 10.4" 1024×768
• Power: 9–36V DC isolated input; optional ignition control
• Network: 2 x 2.5G LAN; optional Wi‑Fi/BT
• Ruggedization: Front IP65; MIL‑STD‑810G (shock/vibration options); EN50155 design
• Certifications: CE, FCC
