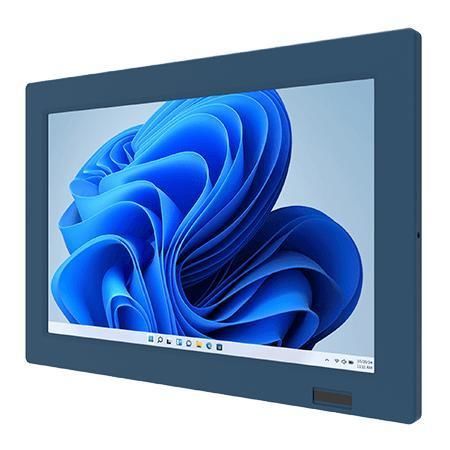

LCD panel PC W12IAN3S-VMM9(HB)

resistive touch screen5-wire resistive touch screentouch screen

Overview
The G-WIN VM Series Panel PC W12IAN3S-VMM9(HB) is a 12.1-inch vehicle mount panel PC built for mission-critical industrial and vehicle-mounted applications. It features an Intel® Processor N100 platform with fanless design for reliable 24/7 operation in harsh environments. The product emphasizes MIL-STD shock and vibration resistance, wide-range isolated 10–60V DC power input with optional ignition control, and IP65-rated front protection to withstand dust and water exposure.

Key Features

• Intel® Processor N100 platform (up to 3.40 GHz, 6M Cache), fanless design
• High-quality 12.1-inch panel, 1280 x 800 resolution
• Front IP65 dust and water resistant protection (except I/O parts)
• Aluminum housing with anti-corrosion treatments
• MIL-STD-810H level shock and vibration resistance
• 5-wire resistive touchscreen (optional) and anti-reflection protection glass (optional)
• WLAN with antenna (optional)
• Isolated wide-range 10–60V DC power input; optional ignition on/off control

Certifications

• CE
• FCC

Product Details
System Specification

• Processor: Intel® Processor N100 (6M Cache, up to 3.40 GHz)
• Memory: 8 GB (Default); 16 GB (Optional)
• Storage: 128 GB SSD (Default); options: 256 GB, 512 GB, 1 TB, 2 TB, 4 TB SSD
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet controllers
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro 64-bit (Optional); Linux Ubuntu 24.04 (Optional; does not support Wake on Touch)
• WLAN: Optional support
• Bluetooth: Optional support

Display

• Size: 12.1 inches
• Touch / Glass: Resistive touch screen (optional); protection glass without touch function (optional)
• Optional: High-brightness panel for sunlight readability
• Resolution: 1280 x 800
• Panel Brightness: 400 nits
• Contrast Ratio: 1000:1
• View Angles: 88/88/88/88
• Active Area: 261.12 x 163.2 mm

Mechanical

• Dimension: 310 x 215 x 52.7 mm
• Weight: 2.8 kg
• Mounting: VESA mount
• Enclosure: Aluminum housing
• Cooling System: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 55°C
• Storage Temperature: -30°C to 70°C
• Shock: Meets MIL-STD-810G Method 516.6 Procedure I (optional)
• Vibration: Meets MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65

I/O Ports

• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (supports DP Alt Mode)
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0b (optional)
• Expansion: 1 x M.2 2230 E-Key slot (for Wi-Fi module)
• Indicators: 1 x LED for power; 1 x LED for storage
• Power Input: 1 x 10~60V DC, 3-pin terminal block

Control

• Buttons: 1 x Power, 1 x Reset, 1 x Brightness Up, 1 x Brightness Down

Accessories

• Included accessory: Open wire cable with terminal block connector; VESA screws
• Optional accessory: 100~240V AC to DC 84W adapter with power cord

Application Notes / Overview Highlights

• Designed for vehicle-mounted industrial computing in logistics and manufacturing (forklifts, warehouse vehicles, mobile industrial platforms)
• Suitable for larger in-vehicle dashboards and richer warehouse workflows using a purpose-built vehicle panel PC
• Fanless cooling reduces noise and maintenance in dusty or vibration-heavy vehicle environments
• Wide DC input and optional ignition control match mobile equipment power behavior

caractéristiques / spécifications techniques

• Model: W12IAN3S-VMM9(HB)
• Brand: Winmate
• Processor: Intel® Processor N100, up to 3.40 GHz, 6M Cache
• Memory: 8 GB (default), up to 16 GB (optional)
• Storage: 128 GB SSD (default), multiple SSD options up to 4 TB
• Display: 12.1-inch, 1280 x 800, 400 nits
• Touch: 5-wire resistive touchscreen (optional)
• Power Input: 10–60V DC isolated, 3-pin terminal block; optional ignition on/off control
• Network: 2 x 2.5 Giga LAN; optional Wi-Fi/Bluetooth via M.2 E-Key
• Ruggedization: Front IP65; MIL-STD-810G/810H shock and vibration standards
• Operating Temp: -10°C to 55°C
• Dimensions / Weight: 310 x 215 x 52.7 mm / 2.8 kg
• Mount: VESA; Enclosure: Aluminum housing with anti-corrosion treatment
• Certifications: CE, FCC
