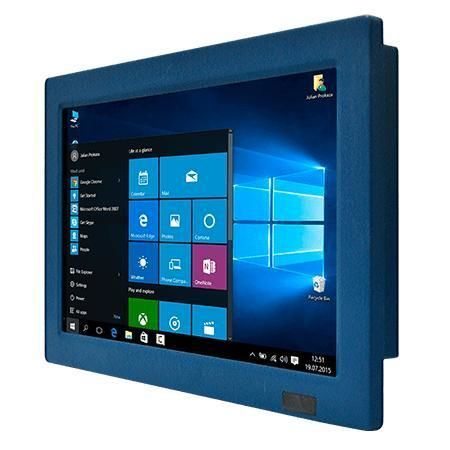

LCD panel PC W12IAD3S-VMM9(HB)

resistive touch screen1000 nits12.1"

Overview
The Winmate W12IAD3S-VMM9(HB) is a 12.1" vehicle-mount panel PC for in-vehicle industrial computing (forklifts, warehouse vehicles, mobile platforms). It integrates a 12th Gen Intel® Core™ i5-1235U, fanless cooling, die-cast aluminum enclosure with anti-corrosion treatment, front IP65 protection (except I/O), and isolated 9–36V DC input. Optional high-brightness display and ignition on/off delay are available.

Key Features

• 12.1" panel, 1280 x 800 resolution, 400 nits (optional 1000 nits)
• Intel® Core™ i5-1235U (12th Gen)
• Operating temperature: -10°C to +55°C
• Die-cast aluminum housing with anti-corrosion treatment; fanless design
• Wide-range isolated 9–36V DC input; optional ignition on/off delay
• Resistive touch or anti-reflective protection glass options
• Front IP65 (except I/O)
• MIL-STD-810F/G shock and vibration compliance

Certifications

• CE
• FCC

Design & Ruggedization Highlights
Front IP65 protects the operator-facing side against dust and water splash for vehicle cabins and harsh environments.

Fanless passive cooling minimizes maintenance and improves reliability in dusty or high-vibration environments.

Comprehensive I/O supports industrial peripherals and connectivity requirements typical for logistics and manufacturing vehicles.

Robust die-cast aluminum construction with anti-corrosion treatment enhances durability in exposed settings.

Product Details

• Target applications: vehicle-mounted industrial computing (logistics, warehousing, manufacturing), forklifts, warehouse vehicles
• Form factor: 12.1" vehicle-mount panel PC, VESA mountable

Caractéristiques / spécifications techniques

• Model: W12IAD3S-VMM9(HB)
• Processor: Intel® Core™ i5-1235U, 3.3 GHz (up to 4.40 GHz)
• Memory: 1 x SO-DIMM DDR5 4800 MHz — 8GB (default), 16GB/32GB optional
• Storage: 1 x M.2 2280 M-Key NVMe SSD — 256GB (default); options 512GB/1TB/2TB
• Ethernet: 2 x Intel® Ethernet Controller (2.5 Gbps)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 22.04 (no Wake on Touch)
• WLAN/BT: optional (M.2 2230 E-Key)
• Display: 12.1" 1280 x 800, 400 nits (optional 1000 nits), contrast 1000:1, view angles 88/88/88/88
• Dimensions: 310 x 215 x 52.7 mm; Weight: 2.8 kg
• Mounting: VESA mount
• Enclosure: Die-cast aluminum, anti-corrosion treatment
• Cooling: Fanless (passive)
• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: -10°C to 55°C; Storage: -30°C to 70°C
• Shock/Vibration: MIL-STD-810G (optional)
• IP rating: Front IP65 (except I/O)
• I/O: 2 x USB 3.2 Gen2x1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; 2 x 2.5G LAN RJ45; 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: power LED, storage LED
• Power input: 1 x 9–36V DC, 3-pin terminal block
• Buttons: power, reset, brightness up, brightness down
• Accessories: open wire cable with terminal block connector; VESA screws. Optional: 100–240V AC to DC 120W adapter
