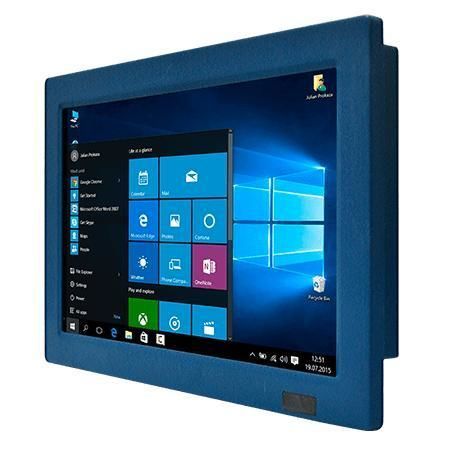

LCD panel PC W12IT3S-VMM9(HB)

resistive touch screen1000 nits12.1"

Overview
The W12IT3S-VMM9(HB) is a 12.1-inch vehicle-mount panel PC engineered for industrial mobile applications such as forklifts, warehouse vehicles and mobile HMI stations. It combines an Intel® Core™ i5-1135G7 CPU with a fanless, die-cast aluminum enclosure, front IP65 protection and wide-range vehicle DC input for reliable in-vehicle operation.

Key Features

• 12.1-inch display, 1280 x 800 resolution; 400 nits standard (option for 1000 nits high-brightness)
• Intel® Core™ i5-1135G7 (Tiger Lake UP3)
• Wide operating temperature: -10°C to +55°C
• Aluminum housing with anti-corrosion treatment; fanless passive cooling
• 9–36V DC isolated wide-range power input; optional ignition on/off control
• Resistive touch or protection glass (anti-reflective) options
• Front IP65 protection (except I/O)
• MIL-STD shock and vibration compliance (optional)

Certifications
CE and FCC certified; EN50155 noted for vehicle applications (see product page for details).

Product details / Highlights
The unit is optimized for vehicle HMI use where ruggedness, vibration tolerance and dependable power handling are required. Fanless thermal design lowers maintenance needs and increases reliability in dusty and vibration-prone environments. Flexible I/O and optional communication modules enable integration into fleet systems and OEM solutions.

Configuration & Expandability

• Memory: 1 x SO-DIMM DDR4 3200 MHz (4GB default; options 8GB/16GB/32GB)
• Storage: 1 x M.2 2280 M-Key NVMe SSD (128GB default; up to 2TB optional)
• Ethernet: 2 x Intel® Ethernet controllers (2.5 Gbps)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu 22.04 (optional)
• Optional wireless: WLAN/BT modules via M.2 2230 E-Key

Ruggedization & Mechanical
Die-cast aluminum enclosure with anti-corrosion treatment, VESA mount support and passive cooling fins for efficient heat dissipation. Designed to meet MIL-STD shock and vibration tests for vehicle use.

IO & Control

• 2 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Optional video: HDMI 2.0
• Expansion slots: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: Power LED, Storage LED
• Power input: 1 x 9–36V DC via 3-pin terminal block; Buttons: Power, Reset, Brightness Up/Down

Accessories

• Included: open wire cable with terminal block connector, VESA screws
• Optional: 100–240V AC to DC 120W adapter with power cord

Environmental specifications
Operating humidity: 10%–90% RH non-condensing. Operating temperature: -10°C to +55°C. Storage temperature: -30°C to +70°C. Front IP rating: IP65 (except I/O). Optional MIL-STD-810G shock & vibration compliance.

Use cases

• Vehicle-mounted industrial computing for logistics and manufacturing (forklifts, warehouse vehicles)
• In-vehicle dashboards for route management, multi-window HMI and fleet operations
• OEM fleet integrations requiring wide-range DC input and ignition control

Technical specifications

• Model: W12IT3S-VMM9(HB)
• Manufacturer: Winmate
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz up to 4.2 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz (4GB default)
• Storage: M.2 2280 NVMe SSD (128GB default)
• Display: 12.1-inch, 1280 x 800, brightness 400 nits (option up to 1000 nits)
• Dimensions: 310 x 215 x 52.7 mm; Weight: 2.8 kg
• Power Input: 9–36V DC via 3-pin terminal block
• Certifications: CE, FCC, EN50155 (as applicable)
