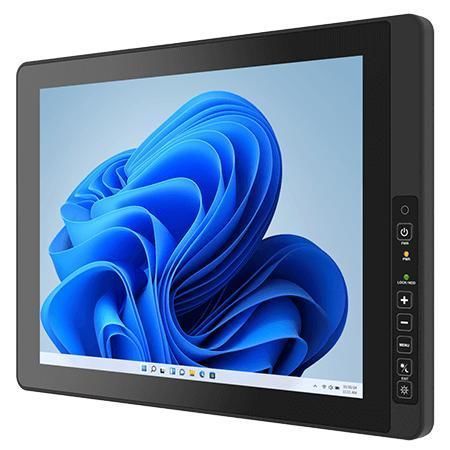

PCAP touchscreen panel PC R15IMT3S-VMC3-P(HB)

multitouch screen5-wire resistive touch screen1000 nits

Overview
The R15IMT3S-VMC3-P(HB) is a 15.0-inch vehicle-mount Panel PC engineered for industrial and in-vehicle edge computing. It integrates an Intel® Core™ Ultra 5 Processor 125U, optical bonding with an optional 1000 nits high-brightness panel, integrated Edge BMC for out-of-band remote management, an aluminum die-cast housing with anti-corrosion treatment and MIL-STD-810F/G compliance. Front panel protection is IP65 (except I/O).

Key Features

• 15.0 inch panel, 1024 x 768 resolution; 300 nits standard, optional 1000 nits with optical bonding
• Intel® Core™ Ultra 5 Processor 125U, 12M Cache, up to 4.30 GHz
• Projected capacitive multi-touch (P-Cap); optional true-flat 5-wire resistive touch
• Optional anti-reflective protection glass; built-in ambient light sensor and auto-dimming
• 1 x 2.5 Giga LAN and 1 x Gigabit LAN (dual LAN) with Edge BMC support for OOB management
• Wide input 9–36V DC with isolation; optional Ignition On/Off delay for vehicle power protection
• Aluminum die-cast housing with anti-corrosion treatment; MIL-STD-810F/G shock and vibration compliance
• Front panel IP65 (except I/O); fanless design; operating temperature -10°C to 55°C

Certifications

• CE
• FCC

Remote management and applications

• Edge BMC provides out-of-band remote management: monitoring, reset and remote power control even if the OS is unresponsive
• Suitable for vehicle HMI, mobile control stations, fleet telemetry and industrial edge AI inference
• Optical bonding and high-brightness option improve readability in direct sunlight and in changing lighting conditions

Technical specifications

• Model: R15IMT3S-VMC3-P(HB)
• Brand: Winmate
• Processor: Intel® Core™ Ultra 5 125U, 12M Cache, up to 4.30 GHz
• Memory: 1 x SO-DIMM DDR5 5600 MHz — 8GB default; optional 16GB, 32GB
• Storage: 1 x M.2 2280 M-Key NVMe SSD 128GB default; optional 256GB / 512GB / 1TB / 2TB / 4TB
• Ethernet controller: LAN1 Intel I210 (supports Edge BMC for OOB); LAN2 Intel I226
• Security: TPM 2.0
• Operating systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 24.04
• Display: 15.0 inches, 1024 x 768, active area 304.1 x 228.1 mm
• Touch/Glass: P-Cap multi-touch standard; optional true-flat 5-wire resistive; optional anti-reflective glass; optical bonding available
• Brightness / Contrast: 300 nits standard; 1000 nits optional; contrast ratio 2000:1
• Dimensions & Weight: 379.4 x 278.4 x 58 mm; 3.8 kg
• Mounting: VESA mount; Enclosure: aluminum die-cast with anti-corrosion treatment
• Ports: 2 x USB 3.2 Gen1 Type-A; 1 x RS232/422/485 (default RS232) + 1 x RS232; 1 x 2.5G RJ45; 1 x 1G RJ45; 1 x HDMI 2.0b (optional)
• Expansion: 1 x M.2 2230 E-Key (for Wi‑Fi module)
• Indicators: LED power and LED storage
• Power input: 1 x 9~36V DC, 3-pin terminal block; isolated input; optional AC-DC adapter
• Environment: Operating -10°C to 55°C; Storage -30°C to 70°C; Humidity 10%–90% RH non-condensing
• Shock / Vibration: MIL-STD-810G (options)
• Front IP rating: IP65 (except I/O)
• Accessories: open wire cable with terminal block connector; VESA screws; optional yoke mount; optional 100~240V AC to DC 84W adapter
