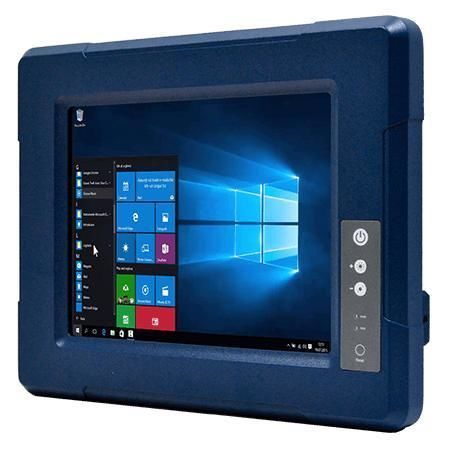

Resistive touch screen panel PC R08IE3S-VMU1

5-wire resistive touch screentouch screen8.4"

Overview
Winmate R08IE3S-VMU1 is an 8.4 in vehicle-mount Panel PC (G-WIN series) powered by an Intel® Celeron® N6211. It is engineered for vehicle-mounted industrial computing—forklifts, warehouse vehicles and other mobile platforms—featuring a fanless design, front IP65 protection (except I/O), 10–60V isolated DC input and optional ignition on/off control. The unit uses an aluminum housing with anti-corrosion treatment and is built to withstand shock and vibration to MIL-STD-810F/G standards. Optional WLAN/BT and multiple I/O interfaces support industrial integration.

Key Features

• Intel® Celeron® N6211 processor (1.5 MB cache, up to 2.60 GHz), fanless design
• 8.4 in display, 800 x 600 resolution, 600 nits brightness
• Front IP65 dust/water protection (except I/O parts)
• Aluminum housing with anti-corrosion treatment
• Shock and vibration compliance to MIL-STD-810F/G
• 5-wire resistive touchscreen (optional) or protection glass (optional)
• Optional WLAN (M.2 2230 E-Key) and Bluetooth
• 10–60V DC isolated wide-range power input; optional ignition on/off control

Certifications

• CE
• FCC

Product Details

• Designed for vehicle-mount use (VM Series) to handle vibration, motion and cabin installations
• Fanless cooling with passive fins for reduced noise and improved reliability
• Comprehensive I/O ports for industrial application integration
• Front bezel optimized for operator-facing protection in harsh and dirty environments
• Mounting options: VESA mount (default); Yoke mount (optional)

Technical specifications

• Model: R08IE3S-VMU1
• Brand: Winmate
• Processor: Intel® Celeron® N6211 (1.5 MB cache, up to 2.60 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz; 4 GB default; 8 GB and 16 GB optional
• Storage: 1 x M.2 2242 B-key SSD 128 GB default; 256 GB and 512 GB optional
• Ethernet controller: 2 x Intel® Ethernet Controller (2.5 GbE)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• WLAN: Optional (M.2 2230 E-Key slot)
• Bluetooth: Optional
• Display Size: 8.4 inches
• Touch / Glass: 5-wire resistive touch (optional); protection glass without touch (optional)
• Resolution: 800 x 600
• Panel Brightness: 600 nits
• Contrast Ratio: 600:1
• Viewing Angles: 75 / 75 / 60 / 70 (typical)
• Active Area: 170.4 x 127.8 mm
• Dimensions: 277 x 219.5 x 59.6 mm
• Weight: 2.2 kg
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Aluminum housing with anti-corrosion treatment
• Cooling System: Fanless (passive cooling)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 55°C
• Storage Temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I (optional)
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65 (except I/O parts)
• Certifications: CE, FCC
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• Indicators: Power LED; Storage LED
• Power Input: 1 x 10~60V DC, 3-pin terminal block (isolated)
• Control Buttons: Power, Reset, Brightness Up, Brightness Down
• Accessories (included): Open wire cable with terminal block connector; VESA screws
• Optional Accessories: Yoke mount; AC 100~240V to DC 84W adapter with power cord
