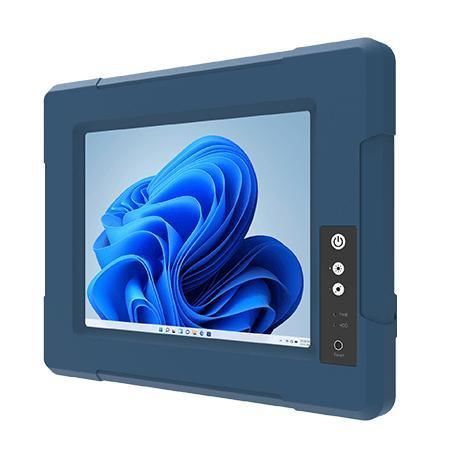

Resistive touch screen panel PC R10IAN3S-VMT2(HB)

5-wire resistive touch screentouch screen10.4"

Overview
The R10IAN3S-VMT2(HB) is a 10.4" G-WIN VM Series vehicle-mount Panel PC for mission-critical industrial and mobile applications. It uses an energy-efficient Intel® Processor N100 platform in a fanless architecture for continuous operation, offers MIL-STD shock and vibration resistance, an IP65-rated front bezel, and isolated 10–60V DC vehicle power with optional ignition control.

Key Features

• Intel® Processor N100, 6M cache, up to 3.40 GHz, fanless design
• 10.4" display, 1024 x 768 resolution, 500 nits
• Front IP65 dust/water protection (except I/O)
• Aluminum housing with anti-corrosion treatment
• MIL-STD-810H level shock and vibration resistance (options)
• 5-wire resistive touchscreen; optional anti-reflection protection glass
• Optional WLAN/BT modules (M.2 2230 E-Key)
• Isolated 10–60V DC input with optional ignition on/off control

Durability & Vehicle Integration
Engineered for vehicular use, the unit withstands heavy shock and vibration and integrates directly with vehicle power systems via an isolated 10–60V DC input. Optional ignition control enables coordinated power management for mobile deployments.

Certifications

• CE
• FCC

System Specification (summary)

• Processor: Intel® Processor N100, 6M Cache, up to 3.40 GHz (spec references to N150 / N100 noted)
• Memory: 8GB default; 16GB optional
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet controllers
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 24.04 (optional)

Display (summary)
Size: 10.4"; Resolution: 1024 x 768; Touch/Glass: resistive touch (optional) or protection glass; Brightness: 500 nits; Contrast: 1000:1; Active area: 210.4 x 157.8 mm.

Mechanical
Dimensions: 315 x 250 x 67 mm; Weight: 2.9 kg; Mounting: VESA (default) / Yoke (optional); Enclosure: aluminum with anti-corrosion treatment; Cooling: fanless.

Environment & Ruggedness
Operating temperature: -10°C to 55°C; Storage: -30°C to 70°C; Operating humidity: 10%–90% RH non-condensing; Shock & vibration: MIL-STD-810 series options; Front IP65.

I/O & Expansion

• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (DP Alt Mode)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0b (optional)
• Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi)
• Power input: 10~60V DC via 3-pin terminal block (isolated)

Controls & Buttons
1 x Power; 1 x Reset; 1 x Brightness Up; 1 x Brightness Down.

Accessories
Included: open-wire cable with terminal block connector; VESA screws. Optional: yoke mount stand; 100~240V AC to DC 84W adapter with power cord.

Technical specifications

• Model: R10IAN3S-VMT2(HB)
• Brand: Winmate
• Display: 10.4" / 1024 x 768
• Processor: Intel® Processor N100 (6M Cache) up to 3.40 GHz
• Memory/Storage: 8GB / 128GB SSD default; expandable options
• Front protection: IP65
• Certifications: CE, FCC
