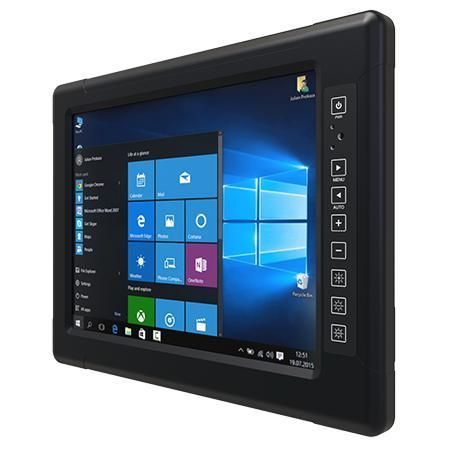

LCD panel PC R15IE3S-VMC3(HB)

5-wire resistive touch screentouch screen1000 nits

Overview
The 15-inch Intel® Celeron® N6211 G-WIN vehicle-mount Panel PC (R15IE3S-VMC3(HB)) is engineered for mobile industrial platforms including forklifts, warehouse vehicles and railway applications. It is designed to meet EN50155 transport requirements and to operate reliably under vibration, shock and harsh environmental conditions. Mechanical protections include a front IP65 bezel, aluminum housing with anti-corrosion treatment, built-in ambient light sensor, fanless cooling and wide-range DC power input with optional ignition on/off control.

Key Features

• Intel® Celeron® N6211 processor, fanless design
• 15.0" panel, 1024 x 768 resolution, 300 nits (optional 1000 nits high-brightness)
• Front IP65 dust/water protection with VESA mount
• Aluminum housing with anti-corrosion treatment
• Built-in ambient light sensor for auto-dimming
• Optional WLAN with antenna and Bluetooth support
• 9 ~ 36V DC isolated wide-range power input; optional ignition on/off control
• 5-wire resistive touch or anti-reflective protection glass options

Certifications

• CE
• FCC

Product Details

• Designed for transportation: EN50155-compliant design for safe deployment in railway and vehicle environments; ideal for IIoT HMI tasks like fleet management, monitoring and control.
• Front IP65 protection: operator-facing side protected against dust and water splashes in vehicle cabins.
• Fanless cooling and low power consumption: passive cooling fins reduce noise and maintenance while improving reliability.
• Comprehensive I/O: industrial interfaces including high-speed LAN, USB3, serial, CANBUS and digital I/O to support diverse integrations.
• Rugged housing: aluminum die-cast enclosure with anti-corrosion treatment and options for MIL-STD shock/vibration testing.

Specifications

• Model: R15IE3S-VMC3(HB)
• Brand: Winmate
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz, 4GB (default); optional 8GB, 16GB
• Storage: 1 x M.2 2242 B-key SSD 128GB (default); optional 256GB, 512GB
• Ethernet controller: 2 x Intel® Ethernet Controller (2.5G each)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• WLAN / Bluetooth: optional (M.2 2230 E-Key slot for Wi‑Fi module)
• Touch / Glass: 5-wire resistive touch (optional) or protection glass without touch (optional)
• Display: 15.0" active area; 1024 x 768; 300 nits (default) / 1000 nits (optional); contrast 2000:1; active area 304.1 x 228.1 mm
• Dimensions: 398 x 308 x 58 mm
• Weight: 4.2 kg
• Mounting: VESA mount (default); Yoke mount optional
• Enclosure: Aluminum housing with anti-corrosion treatment
• Cooling system: Fanless design (passive cooling fins)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 55°C
• Storage temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I (optional)
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65
• USB: 2 x USB3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2230 E-Key slot for Wi‑Fi module
• Indicators: 1 x LED power; 1 x LED storage
• DIDO: Terminal block with digital 4 in / 4 out (either DIDO or CANBUS)
• CANBUS: Terminal block with 2-channel CANBUS (either DIDO or CANBUS)
• Power input: 1 x 9~36V DC, 3-pin terminal block
• Front / Control buttons: Power, Reset, Lock/Unlock front key, Auto Dimming/Manual, Day/Night mode, Brightness Up/Down, LED indicator brightness adjustment, built-in light sensor
• Accessories: Open wire cable with terminal block connector and VESA screws included; optional Yoke mount; optional 100~240V AC to DC 84W adapter with power cord
