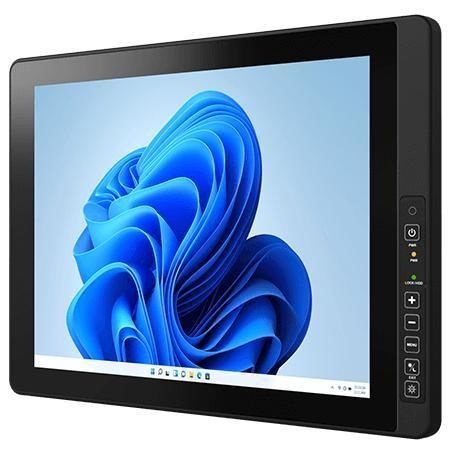

PCAP touchscreen panel PC R15IAN3S-VMC3-P(HB)

multitouch screen5-wire resistive touch screen15"

Overview
The Winmate R15IAN3S-VMC3-P(HB) is a 15" G-WIN vehicle-mount panel PC engineered for rugged vehicle and industrial deployments. It integrates optical bonding for improved readability, a front face rated IP65 (I/O excluded), MIL-STD-810F/G shock and vibration compliance, an aluminum die-cast housing with anti-corrosion treatment, isolated 9–36V DC input and optional Ignition On/Off delay for vehicle stability. The platform is fanless and supports VESA mounting.

Key Features

• 15.0" display, 1024 x 768 resolution; standard 300 nits, optional 1000 nits high-brightness
• Intel® Processor N100 (headline) / Intel® Processor N150 referenced in detailed specs
• Projected-capacitive (P-cap) multi-touch; optional True Flat 5‑wire resistive touch
• Optical bonding (standard) and optional anti‑reflective protection glass
• Aluminum die-cast enclosure with anti-corrosion treatment; fanless cooling
• Built-in ambient light sensor for automatic brightness adjustment
• Front IP65 (except I/O); MIL-STD-810F/G compliant for shock & vibration
• Isolated 9–36V DC input (3-pin terminal); optional ignition control; power protections for vehicle use

Certifications

• CE
• FCC

Product Highlights

• Designed for vehicle integration: isolated wide-range power input and optional ignition delay prevent data loss during engine start/stop
• Enhanced outdoor visibility via optical bonding and optional 1000 nits panel with ambient light sensor
• Rugged hardware: IP65 front protection, aluminum die-cast housing and MIL-STD shock/vibration compliance
• Flexible installation and expansion: VESA mount, M.2 slot for Wi‑Fi, multiple storage options and professional I/O including 2 x 2.5GbE

Detailed Technical Specifications

• System: CPU: Intel® Processor N100 (header) / Intel® Processor N150 (spec); Memory: 8GB default / 16GB optional; Storage: 128GB SSD default (up to 4TB optional); Ethernet: 2 x Intel® 2.5GbE; Security: TPM 2.0; OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 24.04 (optional).
• Display: 15.0"; P-cap multi-touch with optical bonding; Resolution 1024 x 768; Panel brightness up to 1000 nits (optional); Contrast 2000:1; Active area 304.1 x 228.1 mm.
• Mechanical: Dimensions 379.4 x 278.4 x 58 mm; Weight 3.8 kg; VESA mount; Aluminum die-cast housing; Fanless design.
• Environment: Operating temperature -10°C to 55°C; Humidity 10%–90% RH non-condensing; Front IP65 (I/O excluded); Shock/Vibration MIL-STD-810F/G.
• IO: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (DP Alt Mode); 2 x 2.5GbE RJ45; 1 x RS232/422/485 + 1 x RS232; optional HDMI 2.0b; M.2 2230 E-Key for Wi‑Fi.
• Power & Controls: 1 x 9–36V DC isolated (3-pin terminal block); optional Ignition On/Off delay; Power, Reset, Lock/Unlock, Auto Dimming, Day/Night, Brightness controls and ambient light sensor.
• Accessories: Included: open wire cable with terminal block, VESA screws. Optional: yoke mount stand, 100–240V AC to DC 84W adapter.

Product FAQs (summary)

• Processor listing: product header shows Intel® N100; detailed spec may reference Intel® N150.
• Readability: optical bonding removes air gap to reduce reflections; 1000 nits option and ambient light sensor improve outdoor legibility.
• Vehicle suitability: isolated 9–36V DC input and optional ignition delay provide protection during vehicle start/stop.
• Ingress protection: front panel IP65 (I/O excluded).
• Ruggedness: MIL-STD-810F/G compliance for shock and vibration as listed.

Technical specifications

• Model: R15IAN3S-VMC3-P(HB)
• Brand: Winmate
• Processor: Intel® Processor N100 (header) / Intel® Processor N150 (spec)
• Display: 15", 1024x768, P-cap, optical bonding, up to 1000 nits
• Memory: 8GB default / 16GB optional
• Storage: 128GB SSD default; up to 4TB optional
• Power Input: 9–36V DC isolated; optional ignition control
• Operating Temp: -10°C to 55°C; Front Protection: IP65 (except I/O)
• Rugged Standards: MIL-STD-810F/G
• Dimensions / Weight: 379.4 x 278.4 x 58 mm / 3.8 kg
