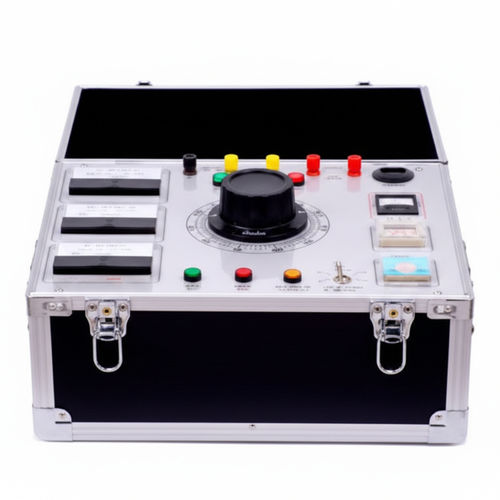

Power control panel XC/TC

automaticcompact

Product Introduction
The XC/TC Series Test Transformer Control Box (Control Console) is an auxiliary device designed for use with XC/TC test transformers. It provides straightforward operation, easy maintenance and reliable protection for on-site electrical testing in utilities, industrial plants, metallurgical facilities, power stations and railways.

Technical Parameters

• Ambient temperature: 0–40°C
• Altitude: < 100 m
• Relative humidity: < 85%
• Insulation resistance after long storage: ≥ 0.5 MΩ (measured with 500 V megohmmeter)

Use and Maintenance

• During acceptance, verify main control-circuit wiring is secure and the voltage regulator brush has good contact.
• After long storage, measure insulation resistance with a 500 V megohmmeter before use; value must be ≥ 0.5 MΩ.
• Ensure supply voltage matches the input value on the cabinet nameplate.
• Cabinet includes overcurrent protection preset at 80% of rated current; for low-load testing, adjust to match the tested product's rated current.
• After operation, close the cabinet cover to keep the interior clean.

Product Characteristics

• Real-time monitoring of output current, instrument voltage, null-reading indicator, closing indicator and timing status.
• Integrated protection: overcurrent protection, high-accuracy current relay and automatic timer.
• New-generation time relay offering a wide timing range for flexible test settings.
• High-accuracy current relay for precise protection of personnel and equipment.
• Compact, portable design suitable for on-site testing and maintenance.

Specifications

• Series / Model: XC/TC
• Application: Auxiliary control console for XC/TC series test transformers
• Factory-set overcurrent protection: 80% of rated current (adjustable)
• Monitoring functions: output current, instrument voltage, null-reading cross pointer, closing indicator, timing status
• Protection devices: overcurrent protection, high-accuracy current relay, automatic timer
