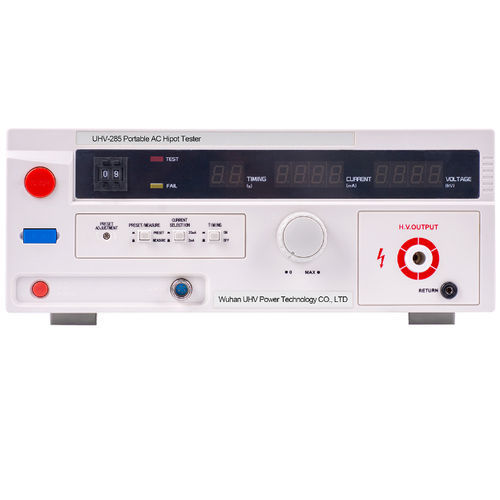

High-voltage hipot tester UHV-285

portableAC

Product Introduction
The UHV-285 portable AC withstand-voltage (Hipot) tester performs on-site dielectric withstand tests by applying controlled AC high voltage to electrical equipment while monitoring leakage current to verify insulation integrity and compliance with safety requirements.

Product functions

• Precise leakage-current measurement: real-time monitoring and automatic pass/fail evaluation against programmable limits.
• Adjustable alarm threshold with high-precision sampling: user-set alarm current triggers audible/visual alarm and HV shut-off on exceedance.
• Multiple protections: built-in overcurrent, leakage-current limit and high-voltage output-abnormality protections with fast automatic response.

Product features

• High-brightness digital display with wide viewing angle for clear readout.
• Real-time display of leakage current and test voltage during operation.
• Preset timer with countdown and automatic output cut-off at timeout for safe interruption.
• 50 Hz sine-wave output with stable waveform quality.
• Critical components use imported parts to support measurement accuracy and service life.
• Compact one-piece chassis for field portability; output power 1000 VA.

Technical parameters

• Model: UHV-285
• Test voltage (AC): 0.5 kV – 5 kV ±5%
• Leakage current range (AC): 0.2 mA – 200 mA (adjustable)
• Leakage current accuracy: ±5%
• Output waveform: 50 Hz sinusoidal
• Output power: 1000 VA
• Time control: 1–99 s ±5% (manual ∞ and preset options)
• Power supply: AC 220 V ±10%, 50 Hz ±2 Hz
• Operating environment: 0°C–40°C; relative humidity ≤75% RH
• Static power consumption: <30 VA

Application scenarios

• Industrial HV equipment maintenance: preventive withstand tests on motors, busbars, switchgear and power cables.
• Commissioning of renewable-energy plants: on-site tests for substations, collector lines and cable systems.
• Rail and transit power inspections: field testing of traction substations and HV switchgear.
• Power maintenance and emergency repairs: rapid verification after repairs or replacements.
• Manufacturing and factory testing: production checks for switchgear, cable accessories and insulation components.

FAQ

• What is this tester for? — Field AC withstand-voltage testing to verify insulation and leakage current before commissioning or after maintenance.
• How to choose a suitable model? — Consider nominal test voltage, output capacity, equipment type, on-site power and future testing needs.
• Advantages versus bench equipment? — Modular, lightweight, fast on-site setup and smaller footprint for improved test efficiency.
