Product overview

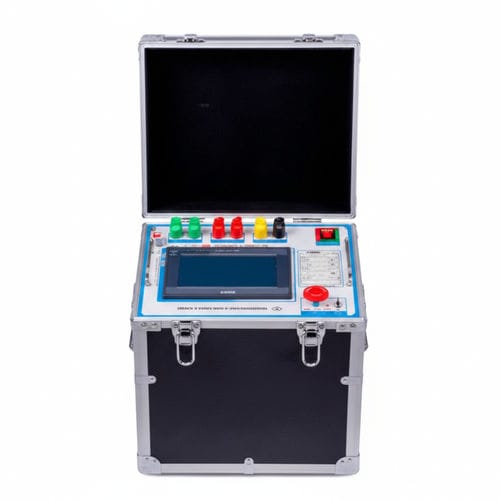

This fully automated transformer control cabinet is designed to support power-frequency withstand-voltage tests in accordance with GB/T16927.1-2001. It integrates a control board and a voltage regulator in a compact, mobile enclosure for repeatable field and workshop testing.

Technical parameters

• Capacity: 3 kVA
• Input voltage range: 0–220 V
• Transformer ratio: 500:1 (configurable to match step-up transformer)
• Output voltage range: 0–250 V
• Measured (instrument terminal) voltage: 0–100 V
• Voltage measurement accuracy: 1.0 % FS ±3 digits
• Current measurement accuracy: 1.0 % FS ±3 digits
• Timing range: 0–9999 s (special long-duration mode available)
• Supply: AC 220 V ±10%, 50 Hz ±2 Hz
• Operating environment: 0–50 °C; relative humidity ≤85% RH

Product features

• 7‑inch high‑resolution LCD shows real‑time voltage, current, time, system status and prompts.
• Localized on‑screen interface for in‑field operation.
• Tactile push‑button controls for secure configuration and operation.
• Digital calibration replaces potentiometers for repeatable field adjustments (password protected).
• Programmable test transformer ratios (button‑configurable) to support multi‑voltage testing with one console.
• Guided workflow with status prompts enables intuitive operation without consulting manuals.
• Auto‑Timing mode: automatic timing at target voltage, result display and auto‑reset.
• Manual Timing mode: operator‑initiated timing with auto‑reset on test completion.
• Manual voltage ramp control with automatic limit detection and overvoltage protection; ramp speed configurable (default 1 kV/s).
• Hybrid hardware/software noise suppression for industrial stability and EMI immunity.

Additional specifications and safety

• Model name: GY Control Cabinet (Automatic)
• Interface: 7‑inch LCD plus tactile buttons (touchscreen support depending on variant)
• Protections: password‑protected settings, overvoltage protection, automatic limit detection
• Mechanical: compact, mobile cabinet suitable for workshop and field use
• Compliance: designed for tests per GB/T16927.1-2001
