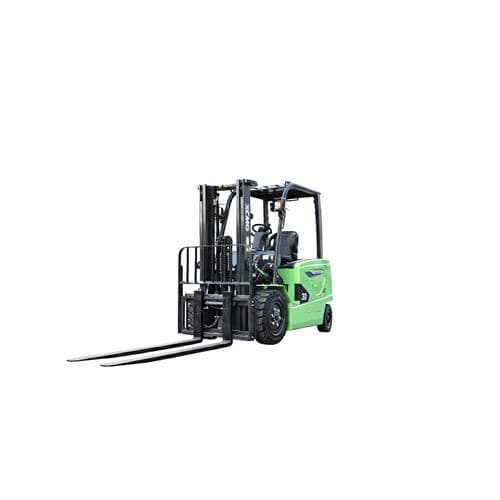

Electric forklift XCB30-L6-Sride-onfor warehouseindustrial
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling, industrial, for warehouse
- Other characteristics
- 4-wheel, counterbalanced, pneumatic tire, with AC motor
- Carrying capacity
3,000 kg
(6,613.9 lb)- Lifting height
3 m
(9'10" )- Overall width
1,250 mm
(49.2 in)- Overall length
3,615 mm
(142.3 in)- Load center distance
500 mm
(19.7 in)- Weight without load
4,500 kg
(9,920.8 lb)- Axle loading with maximum load front
6,695 kg
(14,759.9 lb)- Axle loading with maximum load rear
805 kg
(1,774.7 lb)- Axle loading without load front
2,020 kg
(4,453.3 lb)- Axle loading without load rear
2,480 kg
(5,467.5 lb)- Track width front
1,006 mm
(39.6 in)- Track width rear
986 mm
(38.8 in)- Free lift
155 mm
(6.1 in)- Overall height with mast raised
4,217 mm
(166 in)- Height to top of overhead guard
2,180 mm
(85.8 in)- Seat height
1,204 mm
(47.4 in)- Tow couplig height
332 mm
(13.1 in)- Length to fork face
3,615 mm
(142.3 in)- Fork carriage width
1,148 mm
(45.2 in)- Ground clearance under mast with load
130 mm
(5.1 in)- Ground clearance at center of wheelbase with load
135 mm
(5.3 in)- Turning circle radius
220 mm
(8.7 in)- Travel speed
14 km/h
(8.7 mph)- Lifting speed
Min.: 0.31 m/s
(1.017 ft/s)Max.: 0.43 m/s
(1.411 ft/s)- Lowering speed
Min.: 0.47 m/s
(1.542 ft/s)Max.: 0.5 m/s
(1.64 ft/s)- Rated drawbar pull
1,400 daN
- Gradeability
Min.: 15 %
Max.: 20 %
- Rated output
12 kW
(16.3 hp)- Maximum operating pressure
175 bar
(2,538.2 psi)
Description
Electric 3‑ton counterbalanced forklift designed for medium‑duty material handling, featuring a removable lithium battery for multi‑shift operation and simplified maintenance. The operator area is ergonomically arranged and the machine supports PES three‑gear mode switching to adapt speed and acceleration to different applications.
Key features
Specifications
Logistics & after-sales
Key features
- High efficiency: Kunpeng single‑drive S‑type powertrain with high overall performance.
- Removable lithium battery (Kunlun S‑type) accessible from below for fast replacement — ideal for multi‑shift operations or sites with limited charging facilities.
- Maintenance‑friendly design: base plate pad and counterweight cover are easy to remove; major service points positioned for clear front and rear access.
- Wide applicability: PES three‑gear mode switching meets varied speed and acceleration requirements.
- Operator comfort and ergonomics: wide‑view mast with reduced blind area; USB port, cup holder and phone holder; generous head and foot room.
Specifications
- Model number: XCB30-L6-S
- Rated loading capacity: 3 Ton
- Max lifting height (h3): 3000 mm
- Type: Forklift (counterbalanced, electric)
- Brand name: XCMG
- Place of origin: Jiangsu, China
- Deadweight (with battery): 4500.000 kg
- Overall dimensions (L×W×H): 3615 × 1250 × 2070 mm
- Overall length with forks (l1): 3615 mm
- Overall length without forks (l2): 2545 mm
- Overall width (b1): 1250 mm
- Fork size (s/e/l): 45 / 122 / 1070 mm
- Fork arm carrier (ISO2328): 3A
- Fork arm carrier width (b3): 1148 mm
- Load center distance (c): 500 mm
- Front overhang (x): 477 mm
- Axle base (y): 1750 mm
- Wheelbase front/rear (b10 / b11): 1006 mm / 986 mm
- Wheel type front/rear: pneumatic / solid
- Tire size front: 28×9-15-14PR
- Tire size rear: 18×7-8
- Ground clearance at door frame, full load (m1): 130 mm
- Ground clearance at axle center, full load (m2): 135 mm
- Free lifting height (h2): 155 mm
- Maximum working height with load backrest (h4): 4217 mm
- Height of overhead guard (h6): 2180 mm
- Seat slip point height to floor (h7): 1204 mm
- Traction pin height (h10): 332 mm
- Right‑angle stacking aisle width, pallet 1000×1200 cross (Ast): 3897 mm
- Right‑angle stacking aisle width, pallet 800×1200 along (Ast): 4097 mm
- Outside turning radius (Wa): 220 mm
- Travel speed full load / no load: 14 / 14 km/h
- Lifting speed full load / no load: 0.31 / 0.43 m/s
- Lowering speed full load / no load: 0.47 / 0.5 m/s
- Maximum traction, full load: 14,000 N
- Maximum climbing capacity, full load / no load: 15% / 20%
- Acceleration time (10 m), full load / no load: 6.2 / 5.8 s
- Traction motor power (S2‑60min): 12 kW
- Lifting motor power (S3‑15%): 16 kW
- Battery capacity (V / Ah): 80 / 206 (V/Ah)
- Battery weight (±5%): ≈ 260 kg
- Controller type: MOS tube / AC
- Attachment operating pressure: 17.5 MPa
- Full axle load Front/Rear: 6695 / 805 kg
- No axle load Front/Rear: 2020 / 2480 kg
- Seat type: standard seat
- Forklift configuration / power type: Lithium battery (standard)
- Warranty: One Year
Logistics & after-sales
- Min. order quantity: 1 Unit
- Delivery time: In stock (within 7 days); Production (15–20 days); Customization (negotiated)
- Shipping: Sea freight · Land freight · Air freight
- After‑sales service: online samples/specs/manuals; video support for application/troubleshooting/maintenance; overseas engineers available (fees may apply if not covered by contract)
