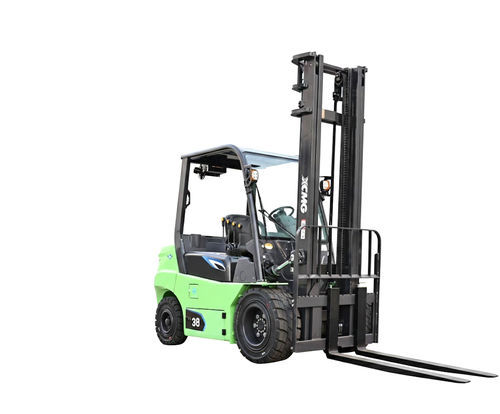

Electric forklift XVB25-QL8-C

ride-oncounterbalancedwaterproof

XCMG XVB25-QL8-C is a 2.5-ton dedicated electric counterbalance forklift from XCMG's Peacock Series, designed for high-voltage lithium battery applications with advanced electric control and robust protection. It features automotive-grade battery packs, intelligent vehicle scheduling and performance comparable to internal combustion forklifts.

Main Technical Parameters

• Model: XVB25-QL8-C
• Rated lifting capacity: 2500 kg
• Outer turning radius: 2250 mm
• Travel speed (loaded/unloaded): 22 / 23 km/h
• Maximum gradability (loaded): 25%
• Battery capacity: 153.6 V / 150 Ah

Technical Configuration

• 160V high-voltage permanent magnet synchronous drive system
• IPX5 vehicle-level water protection
• Liquid cooling for three key systems: battery, motor and electronic control
• 2-spool hydraulic control valve
• 2-stage mast with 3 m lifting height
• Fork length: 1070 mm
• Pneumatic tires (all wheels)
• Battery heating (standard)
• 1C fast charging support

Performance Features

• Automotive-grade lithium battery packs and standard national charging gun compatibility
• Small turning radius, large ground clearance and strong load-bearing capacity
• Travel, gradability and lifting performance comparable to internal combustion forklifts
• Designed for high protection and operator comfort

Caractéristiques / spécifications techniques

• Brand: XCMG
• Model number: XVB25-QL8-C
• Rated loading capacity: 2.5 t (2500 kg)
• Battery: 153.6 V / 150 Ah (high-voltage lithium)
• Travel speed (loaded/unloaded): 22 / 23 km/h
• Outer turning radius: 2250 mm
• Maximum gradability (loaded): 25%
• Fork length: 1070 mm
• Mast: 2-stage, 3 m lifting height
• Protection: Three-electric (battery, motor, electronic control) protection IP67; vehicle-level water protection IPX5
• Tires: Pneumatic (all wheels)
• Weight (listed on page): 25000.000 kg
• Place of origin: Xuzhou, Jiangsu, China
