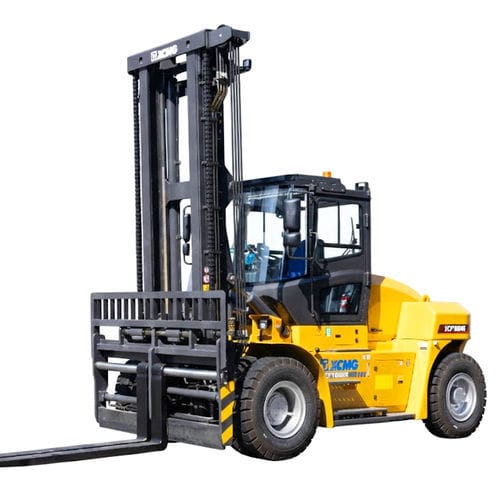

Diesel forklift XCF50KTride-onharborindustrial
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- harbor, industrial, for warehouse, for the steel industry
- Other characteristics
- for medium loads, counterbalanced, pneumatic tire
- Carrying capacity
5,000 kg
(11,023.1 lb)- Lifting height
3 m
(9'10" )- Overall width
1,500 mm
(59.1 in)- Overall length
4,245 mm
(167.1 in)- Load center distance
500 mm
(19.7 in)- Weight without load
6,800 kg
(14,991.4 lb)- Axle loading with maximum load front
10,364 kg
(22,848.7 lb)- Axle loading with maximum load rear
1,436 kg
(3,165.8 lb)- Axle loading without load front
2,840 kg
(6,261.1 lb)- Axle loading without load rear
3,960 kg
(8,730.3 lb)- Track width front
1,196 mm
(47.1 in)- Track width rear
1,190 mm
(46.9 in)- Height of mast when lowered
2,280 mm
(89.8 in)- Free lift
150 mm
(5.9 in)- Length to fork face
1,070 mm
(42.1 in)- Ground clearance under mast with load
180 mm
(7.1 in)- Turning circle radius
2,860 mm
(112.6 in)- Travel speed
Max.: 27.5 km/h
(17.1 mph)Min.: 25 km/h
(15.5 mph)- Lifting speed
Max.: 0.58 m/s
(1.903 ft/s)Min.: 0.53 m/s
(1.739 ft/s)- Gradeability
25 %
- Rated output
65 kW
(88.4 hp)- Rated speed
2,200 rpm
(13,823 rad.min-1)
Description
Overview
The XCMG XCF50KT is a 5 t diesel internal-combustion counterbalanced forklift engineered for medium-heavy industrial and logistics operations. It is part of XCMG's K series and incorporates proprietary core components to provide reliable performance across varied climates and working environments.
Key features
Technical details
Applications
The XCMG XCF50KT is a 5 t diesel internal-combustion counterbalanced forklift engineered for medium-heavy industrial and logistics operations. It is part of XCMG's K series and incorporates proprietary core components to provide reliable performance across varied climates and working environments.
Key features
- Rated loading capacity: 5 t, designed for medium-heavy material handling.
- Power: diesel internal-combustion engine delivering high torque for extended operating periods.
- Operator ergonomics: ergonomic cabin layout with a smaller steering wheel, increased legroom and interior space to reduce operator fatigue.
- Noise and vibration control: metal hood fitted with heat- and sound-insulation materials; steering axle-to-frame connection supported by shock-absorbing rubber to reduce whole-vehicle vibration.
- Mobility and tyres: pneumatic tyres and a minimum turning radius of 2860 mm for maneuverability in confined areas.
Technical details
- Model number: XCF50KT
- Brand: XCMG
- Place of origin: Jiangsu, China
- Rated loading capacity: 5 t
- Max lifting height (standard): 3000 mm
- Load center distance: 500 mm
- Operating weight: 6800 kg
- Overall dimensions (L×W×H): 4245 × 1500 × 2280 mm
- Wheelbase: 2050 mm
- Axle load, loaded (front/rear): 10364 / 1436 kg
- Axle load, unloaded (front/rear): 2840 / 3960 kg
- Tyre type: Pneumatic
- Tread, front / rear: 1196 mm / 1190 mm
- Free lifting height: 150 mm
- Height, mast lowered: 2280 mm
- Fork size (L/W/T): 1070 / 150 / 50 mm
- Ground clearance: 180 mm
- Min turning radius: 2860 mm
- Travel speed (loaded/unloaded): 25 / 27.5 km/h
- Lift speed (loaded/unloaded): 0.530 / 0.580 m/s
- Gradeability: 25 %
- Engine rating: 65 kW / 2200 rpm
- Engine torque: 350 N·m / 1320–1650 rpm
Applications
- Designed for ports, docks, freight yards, steel mills and warehouses in medium-heavy logistics and industrial environments.
