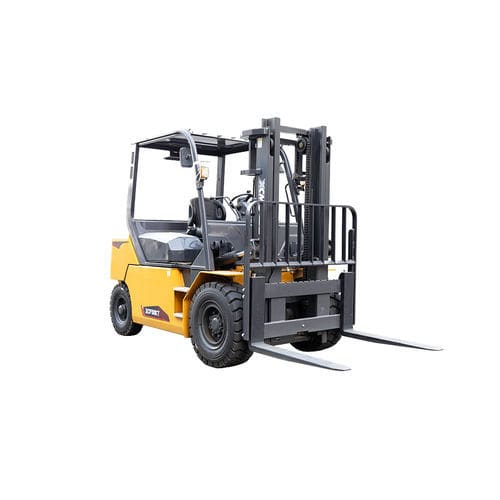

Diesel forklift XCF1606Kride-onindustrialcounterbalanced
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- industrial
- Other characteristics
- counterbalanced, heavy-duty, pneumatic tire, for heavy loads
- Carrying capacity
16,000 kg
(35,274 lb)- Lifting height
Max.: 4 m
(13'01" )Min.: 3 m
(9'10" )- Overall width
2,570 mm
(101.2 in)- Overall length
6,265 mm
(246.7 in)- Load center distance
600 mm
(23.6 in)- Weight without load
19,845 kg
(43,750.7 lb)- Axle loading with maximum load front
32,271 kg
(71,145.4 lb)- Axle loading with maximum load rear
3,574 kg
(7,879.3 lb)- Axle loading without load front
9,403 kg
(20,730.1 lb)- Axle loading without load rear
10,442 kg
(23,020.7 lb)- Height of mast when lowered
3,385 mm
(133.3 in)- Free lift
85 mm
(3.3 in)- Overall height with mast raised
4,865 mm
(191.5 in)- Fork carriage width
2,490 mm
(98 in)- Ground clearance under mast with load
265 mm
(10.4 in)- Turning circle radius
4,480 mm
(176.4 in)- Travel speed
Max.: 30 km/h
(18.6 mph)Min.: 28 km/h
(17.4 mph)- Lifting speed
Max.: 0.4 m/s
(1.312 ft/s)Min.: 0.35 m/s
(1.148 ft/s)- Lowering speed
0.4 m/s
(1.312 ft/s)- Rated drawbar pull
14,500 daN
- Gradeability
23 %
- Rated output
126 kW
(171.3 hp)- Rated speed
2,000 rpm
(12,566.4 rad.min-1)
Description
Overview

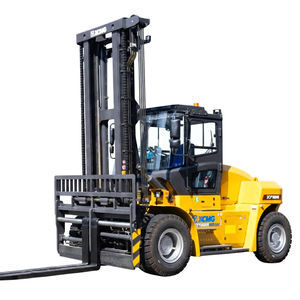

The XCMG XCF1606K is a heavy-duty diesel counterbalanced forklift designed for industrial, port and logistics operations with a 16-ton rated load capacity. It features a robust chassis, full-hydraulic systems and K-series ergonomics for improved visibility and operator comfort.
Key product highlights
After-sales & warranty
Commercial / logistic information
Technical specifications
The XCMG XCF1606K is a heavy-duty diesel counterbalanced forklift designed for industrial, port and logistics operations with a 16-ton rated load capacity. It features a robust chassis, full-hydraulic systems and K-series ergonomics for improved visibility and operator comfort.
Key product highlights
- Advanced electronic control and intelligent communication systems to increase operational efficiency and support attachment interchangeability.
- Multiple safety protection mechanisms and emergency braking systems to safeguard personnel and cargo.
- Proven engine options with optimized power matching and a full-hydraulic power-priority steering system with load sensing for flexible handling.
- Design focused on reducing total cost of ownership through energy-conservation measures.
After-sales & warranty
- Warranty: One year.
- After-sales service: Engineers available for overseas service. Service formats include online support (samples, technical specifications, operation manuals, spare parts), video support (application guidance, troubleshooting, maintenance guidance) and on-site overseas service (subject to contract terms and any applicable service fees).
Commercial / logistic information
- Minimum order quantity: 1 Unit.
- Delivery time: In stock (within 7 days); Production (within 15–20 days); Customization (delivery time to be negotiated).
- Shipping support: Sea freight · Land freight · Air freight.
Technical specifications
- Model: XCF1606K
- Rated loading capacity: 16 Ton (16000 kg)
- Power source / Drive: Diesel (Diesel Forklift)
- Service weight: 19845 kg
- Overall dimensions (L×W×H): 6265 × 2570 × 3355 mm
- Overall length (forks excluded): 4895 mm
- Overall width: 2570 mm
- Overall ROPS cab height: 3355 mm
- Mast lowered height: 3385 mm
- Maximum height when mast is raised: 4865 mm
- Standard maximum lifting height: 3000 mm
- Max lifting height (listed summary): 4000 mm
- Free lifting height: 85 mm
- Wheelbase: 3250 mm
- Front overhang: 795 mm; Rear overhang: 850 mm
- Load center distance: 600 mm
- Fork size (L×W×T): 1370 × 200 × 85 mm
- Fork carriage width (b2): 2490 mm
- Fork outer spread adjustment range (Max./Min.): 2370 / 500 mm
- Front wheel tread (b10): 1888 mm; Rear wheel tread (b11): 2120 mm
- Ground clearance under mass at full load: 265 mm
- Min turning radius (Wa): 4480 mm
- 1000×1200 and 800×1200 pallet aisle widths: not specified
- Tire type: Pneumatic tires; Tire size (front/rear): 12.00-20-20PR
- Traveling speed (loaded/unloaded): 28 / 30 km/h
- Lifting speed (loaded/unloaded): 350 / 400 mm/s
- Lowering speed (loaded/unloaded): 400 / 400 mm/s
- Full-load traction force: 145 kN
- Gradeability (loaded/unloaded): 23 %
- Driving brake / Parking brake: Hydraulic / Hydraulic
- Rated power / RPM: 126 kW / 2000 rpm
- Torque / RPM: 746 N·m / 1200 rpm
- Number of cylinders: 6
- Bore × Stroke: 107 × 124 mm
- Emission stage: Stage III
- Full-loaded axle load (front / rear): 32271 / 3574 (kg)
- Unloaded axle load (front / rear): 9403 / 10442 (kg)
