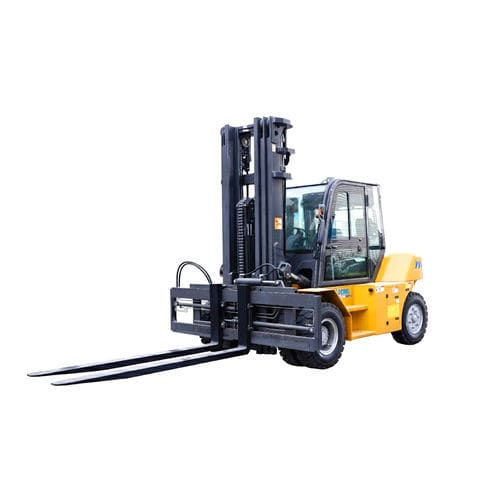

Diesel forklift XCF706Kride-onfor warehousehandling
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- for warehouse, handling, transport, for the steel industry, harbor, industrial
- Other characteristics
- heavy-duty, counterbalanced, pneumatic tire
- Carrying capacity
7,000 kg
(15,432.4 lb)- Lifting height
3 m
(9'10" )- Overall width
1,995 mm
(78.5 in)- Overall length
4,770 mm
(187.8 in)- Load center distance
600 mm
(23.6 in)- Weight without load
9,600 kg
(21,164.4 lb)- Axle loading with maximum load front
14,710 kg
(32,430 lb)- Axle loading with maximum load rear
1,890 kg
(4,166.7 lb)- Axle loading without load front
4,122 kg
(9,087.5 lb)- Axle loading without load rear
5,478 kg
(12,076.9 lb)- Track width front
1,470 mm
(57.9 in)- Track width rear
1,700 mm
(66.9 in)- Height of mast when lowered
2,480 mm
(97.6 in)- Free lift
140 mm
(5.5 in)- Fork carriage width
1,220 mm
(48 in)- Ground clearance under mast with load
175 mm
(6.9 in)- Turning circle radius
3,460 mm
(136.2 in)- Travel speed
Min.: 27 km/h
(16.8 mph)Max.: 30 km/h
(18.6 mph)- Lifting speed
Min.: 0.43 m/s
(1.411 ft/s)Max.: 0.51 m/s
(1.673 ft/s)- Gradeability
25 %
- Rated output
85 kW
(115.6 hp)
Description
This 7-ton diesel counterbalanced forklift is engineered for heavy-duty outdoor and industrial logistics operations such as ports, docks, freight yards, steel mills and warehouses. The optimized frame and component layout focus on structural reliability, high stability and extended steering tyre/service life.
Key design & features:
Applications:
Technical specifications:
Key design & features:
- Counterbalanced internal combustion forklift configured for outdoor industrial logistics.
- Robust integral hood and internal frame rib-plate structure for increased strength and rigidity.
- Frame constructed from manganese steel for enhanced durability and dependable service life.
- Short wheelbase to improve lift performance at rated capacity while reducing load on the steering axle.
- Pneumatic tyres for industrial traction and outdoor use.
Applications:
- Ports and docks
- Freight yards
- Steel mills
- Warehouses and heavy logistics operations
Technical specifications:
- Rated loading capacity: 7 T (7000 kg)
- Max lifting height (standard): 3000 mm
- Power source: Diesel
- Service weight: 9600 kg
- Overall dimensions (L × W × H): 4770 × 1995 × 2480 mm
- Wheelbase: 2250 mm
- Load center distance: 600 mm
- Axle load, loaded (front/rear): 14710 / 1890 kg
- Axle load, unloaded (front/rear): 4122 / 5478 kg
- Tyres type: Pneumatic
- Tread, front / rear: 1470 mm / 1700 mm
- Free lifting height: 140 mm
- Height, mast lowered: 2480 mm
- Overall length: 4770 mm
- Overall width: 1995 mm
- Fork size (L/W/T): 1220 / 150 / 65 mm
- Ground clearance: 175 mm
- Min turning radius: 3460 mm
- Travel speed, loaded / unloaded: 27 / 30 km/h
- Lift speed, loaded / unloaded: 430 / 510 mm/s (as listed)
- Gradeability: 25 %
- Engine rating: 85 kW / 2200 rpm
- Engine torque: 500 N·m / 1320–1650 rpm
- Condition: New
- Place of origin: Jiangsu, China
