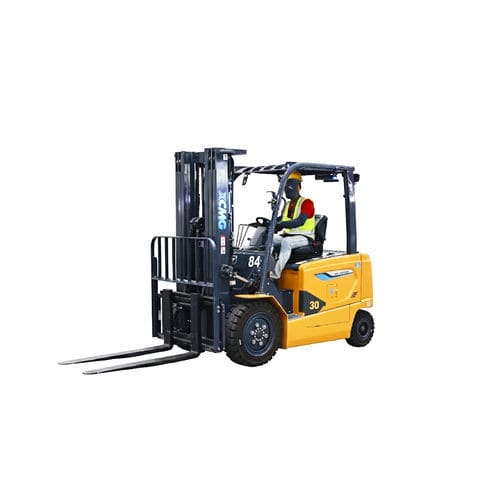

Electric forklift XCB30-Cride-onpalletfor warehouse
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling, for warehouse, pallet
- Other characteristics
- counterbalanced
- Carrying capacity
3,000 kg
(6,613.9 lb)- Lifting height
4,217 mm
(166.02 in)- Overall width
1,250 mm
(49.2 in)- Overall length
3,610 mm
(142.1 in)- Load center distance
500 mm
(19.7 in)- Weight without load
4,900 kg
(10,802.7 lb)- Axle loading with maximum load front
7,080 kg
(15,608.7 lb)- Axle loading with maximum load rear
820 kg
(1,807.8 lb)- Axle loading without load front
2,340 kg
(5,158.8 lb)- Axle loading without load rear
2,560 kg
(5,643.8 lb)- Free lift
155 mm
(6.1 in)- Overall height with mast raised
4,217 mm
(166 in)- Height to top of overhead guard
2,180 mm
(85.8 in)- Seat height
1,204 mm
(47.4 in)- Length to fork face
2,540 mm
(100 in)- Ground clearance under mast with load
130 mm
(5.1 in)- Ground clearance at center of wheelbase with load
135 mm
(5.3 in)- Turning circle radius
2,220 mm
(87.4 in)
Description
Overview
Electric counterbalanced forklift XCMG XCB30-C designed for mid-to-high-end material handling. Rated capacity 3 t, integrates Kun‑Peng core technologies and supports flexible battery solutions for multi‑shift or off‑grid operations.
Key features
Technical specifications
Ordering & support
Electric counterbalanced forklift XCMG XCB30-C designed for mid-to-high-end material handling. Rated capacity 3 t, integrates Kun‑Peng core technologies and supports flexible battery solutions for multi‑shift or off‑grid operations.
Key features
- Kun‑Peng Single Drive Type C design for improved overall efficiency compared with traditional electric forklifts.
- Unlimited cruising ability: supports fast replacement of lead‑acid and lithium batteries for continuous operation across multiple shifts or in areas without charging stations.
- Easy maintenance: removable floor pad and counterweight covers; main maintenance parts positioned for simple access.
- Driving modes: PSE three‑gear switch to adapt speed and acceleration to application needs.
- Operator ergonomics: wide‑view mast, USB port, cup holder, phone holder and a spacious cabin layout.
- Warranty and support: One‑year warranty; engineers available for overseas service.
Technical specifications
- Rated loading capacity: 3 Ton (3000 kg)
- Max lifting height (mast max height): 4217 mm
- Mast retraction height (h1): 2070 mm
- Mast free lifting height (h2): 155 mm
- Mast max height (h4): 4217 mm
- Overall length (including forks) l1: 3610 mm
- Overall length (without forks) l2: 2540 mm
- Overall width b1: 1250 mm
- Fork size (thickness/width/length) s/e/l: 45/122/1070 mm
- Fork carriage: ISO2328 3A
- Load centre distance c: 500 mm
- Front overhanging distance x: 477 mm
- Wheelbase y: 1750 mm
- Weight (including battery): 4900 kg
- Axle full load (front/rear): 7080 / 820 kg
- Axle rear load (front/rear): 2340 / 2560 kg
- Tyres (front): 28*9-15-14PR
- Tyres (rear): 18×7-8
- Mast tilting angle (front/rear) α/β: 6° / 12°
- Roof protection height (h6): 2180 mm
- Seat to ground height (h7): 1204 mm
- Traction pin height (h10): 332 mm
- Width of rack (b3): 1148 mm
- Mast ground clearance, full-load (m1): 130 mm
- Wheelbase centre ground clearance, full-load (m2): 135 mm
- Right angle aisle width, pallet 1000×1200 (Ast): 3897 mm
- Right angle aisle width, pallet 800×1200 (Ast): 4097 mm
- Outside turning radius (Wa): 2220 mm
- Battery capacity: 80V / 280 Ah
Ordering & support
- Minimum order quantity: 1 Unit
- Delivery time: In Stock (within 7 days) / Production (15–20 days) / Customization (negotiated)
- Warranty: One‑year; overseas engineering support available.
