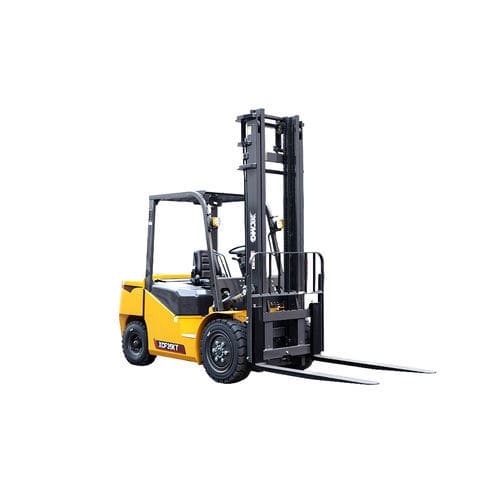

Diesel forklift XCF2512Kride-onexteriorcounterbalanced
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- exterior
- Other characteristics
- counterbalanced, heavy-duty, pneumatic tire, for heavy loads
- Carrying capacity
25,000 kg
(55,115.6 lb)- Lifting height
4 m
(13'01" )- Overall width
3,035 mm
(119.5 in)- Overall length
8,790 mm
(346.1 in)- Load center distance
1,200 mm
(47.2 in)- Weight without load
38,150 kg
(84,106.4 lb)- Axle loading with maximum load rear
6,300 kg
(13,889.1 lb)- Axle loading without load front
18,030 kg
(39,749.3 lb)- Axle loading without load rear
19,928 kg
(43,933.7 lb)- Track width rear
2,512 mm
(98.9 in)- Height of mast when lowered
3,995 mm
(157.3 in)- Free lift
110 mm
(4.3 in)- Length to fork face
2,440 mm
(96.1 in)- Ground clearance under mast with load
270 mm
(10.6 in)- Turning circle radius
5,817 mm
(229 in)- Travel speed
Max.: 24 km/h
(14.9 mph)Min.: 22 km/h
(13.7 mph)- Lifting speed
Max.: 0.31 m/s
(1.017 ft/s)Min.: 0.28 m/s
(0.919 ft/s)- Gradeability
25 %
- Rated output
194 kW
(263.8 hp)- Rated speed
2,200 rpm
(13,823 rad.min-1)
Description
The XCMG XCF2512K is a heavy-duty 25 t diesel counterbalance forklift engineered for outdoor operations on pneumatic tyres. Part of XCMG's K-series heavy-duty range, it is designed for reliable operation, simplified maintenance and enhanced operator protection.
Key features
Technical specifications
Key features
- Heavy-duty K-series design with verified structural strength and stiffness (finite element analysis and optimization).
- Advanced electronic control system and intelligent communication to improve operational efficiency.
- Attachment replacement system and a variety of optional accessories and mast configurations to suit different working conditions.
- Multiple safety protection mechanisms and emergency braking systems to safeguard personnel and cargo.
- Engineered for ease of maintenance and long service life; supports customer-specific configurations and a product range from 10 t to 46 t.
Technical specifications
- Model Number: XCF2512K
- Brand Name: XCMG
- Type / Product type: Diesel Forklift
- Power Source: Diesel
- Rated Loading Capacity: 25 T (25,000 kg)
- Load center distance: 1200 mm
- Max Lifting Height (standard): 4000 mm
- Free lifting height: 110 mm
- Height, mast lowered: 3995 mm
- Overall length: 8790 mm
- Overall width: 3035 mm
- Wheelbase: 4250 mm
- Fork size (Length×Width×Thickness): 2440×250×110 mm
- Ground clearance: 270 mm
- Min turning radius: 5817 mm
- Tread, front: 2202 mm; tread, rear: 2512 mm
- Tyres type: Pneumatic
- Service Weight / Weight: 38150 kg
- Axle load, loaded front/rear: 56658 / 6300 kg
- Axle load, unloaded front/rear: 18030 / 19928 kg
- Travel speed, loaded/unloaded: 22 / 24 km/h
- Lift speed, loaded/unloaded: 280 / 310 (as shown)
- Gradeability: 25 %
- Engine rating (Rating/RPM): 194 kW / 2200 rpm
- Engine torque (Torque/RPM): 1175 N·m / 1350 rpm
- Place of Origin: Jiangsu, China
- Warranty: One Year
- Min Order Quantity: 1 Unit
- Delivery Time: In Stock (Within 7 days); Production (Within 15 to 20 days); Customization (negotiated delivery time)
- After-sales service: Engineers available to service machinery overseas; online, video and overseas service available (service charges may apply without clear contract clause)
- Shipping support: Sea freight · Land freight · Air freight
