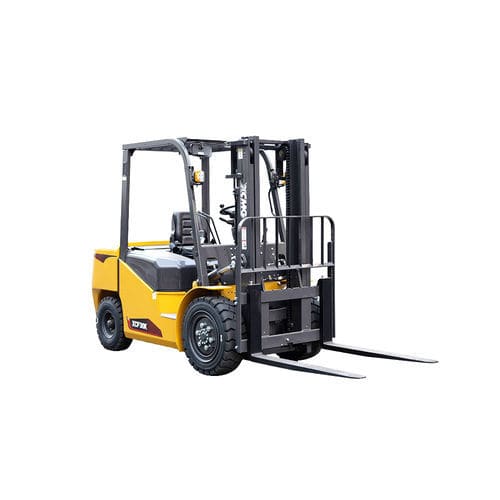

Diesel forklift XCF1006Kride-onindustrialhandling
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- handling, transport, industrial
- Other characteristics
- counterbalanced, heavy-duty, pneumatic tire, for heavy loads, custom
- Carrying capacity
10,000 kg
(22,046.2 lb)- Lifting height
3 m
(9'10" )- Overall width
2,169 mm
(85.4 in)- Overall length
5,423 mm
(213.5 in)- Load center distance
600 mm
(23.6 in)- Weight without load
12,750 kg
(28,108.9 lb)- Axle loading with maximum load front
20,560 kg
(45,327 lb)- Axle loading with maximum load rear
2,190 kg
(4,828.1 lb)- Axle loading without load front
5,810 kg
(12,808.9 lb)- Axle loading without load rear
6,940 kg
(15,300.1 lb)- Track width front
1,600 mm
(63 in)- Track width rear
1,720 mm
(67.7 in)- Height of mast when lowered
2,850 mm
(112.2 in)- Free lift
140 mm
(5.5 in)- Ground clearance under mast with load
250 mm
(9.8 in)- Turning circle radius
3,940 mm
(155.1 in)- Travel speed
Min.: 29 km/h
(18 mph)Max.: 32 km/h
(19.9 mph)- Gradeability
20 %
- Rated output
85 kW
(115.6 hp)- Rated speed
2,200 rpm
(13,823 rad.min-1)
Description
Overview
The XCF1006K is a heavy-duty 10-ton counterbalanced diesel forklift manufactured by XCMG, engineered for reliable high-capacity material handling in industrial and logistics operations. It is part of the K-series (10–46 t) and supports customization with multiple mast and accessory options to match different working conditions.
Key product highlights
Technical specifications
The XCF1006K is a heavy-duty 10-ton counterbalanced diesel forklift manufactured by XCMG, engineered for reliable high-capacity material handling in industrial and logistics operations. It is part of the K-series (10–46 t) and supports customization with multiple mast and accessory options to match different working conditions.
Key product highlights
- Rated loading capacity: 10 tonnes for heavy-duty operations.
- Customizable configuration with various masts and accessory options to suit specific tasks.
- Structure and major components optimized using finite element analysis and strength/stiffness validation for extended service life.
- Advanced electronic control and intelligent communication systems to improve operational efficiency and support attachment replacement.
- Multiple safety protections and emergency braking systems to protect personnel and cargo.
Technical specifications
- Model: XCF1006K
- Brand: XCMG
- Rated loading capacity: 10 T
- Power source: Diesel
- Type: Diesel Forklift (counterbalanced)
- Condition: New
- Place of origin: Jiangsu, China
- Service weight: 12,750 kg
- Overall dimensions (L×W×H): 5423 × 2169 × 2850 mm
- Overall length: 5423 mm
- Overall width: 2169 mm
- Height, mast lowered: 2850 mm
- Max lift height (standard): 3000 mm
- Free lifting height: 140 mm
- Fork size (L/W/Thickness): 1220 / 175 / 80 mm
- Load center distance: 600 mm
- Wheelbase: 2775 mm
- Ground clearance: 250 mm
- Minimum turning radius: 3940 mm
- Tread, front/rear: 1600 mm / 1720 mm
- Tyre type: Pneumatic
- Axle load (loaded front/rear): 20560 / 2190 kg
- Axle load (unloaded front/rear): 5810 / 6940 kg
- Travel speed (loaded/unloaded): 29 / 32 km/h
- Lift speed (loaded/unloaded): 330 / 350 (unit as provided)
- Gradeability: 20 %
- Engine rating / RPM: 85 kW / 2200 rpm
- Engine torque / RPM: 500 N·m / 1320–1650 rpm
- Weight (listed): 12750.000 kg
- Warranty: One Year
- After-sales service: Engineers available to service machinery overseas
- Shipping support: Sea freight · Land freight · Air freight
