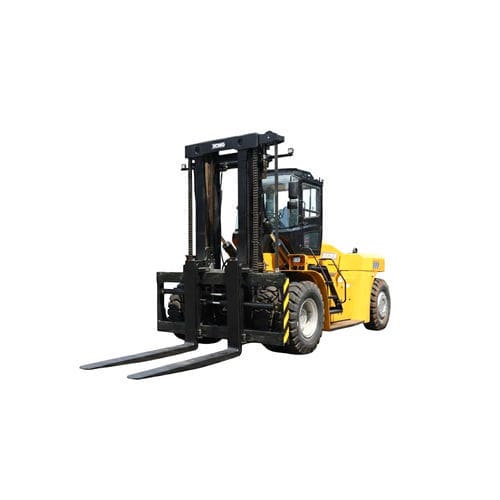

Diesel forklift XCF30KTride-onfor warehousehandling
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- handling, transport, storage, for warehouse
- Other characteristics
- pneumatic tire, for medium loads
- Carrying capacity
3,000 kg
(6,613.9 lb)- Lifting height
3 m
(9'10" )- Overall width
1,225 mm
(48.2 in)- Overall length
3,806 mm
(149.8 in)- Load center distance
500 mm
(19.7 in)- Weight without load
4,360 kg
(9,612.2 lb)- Axle loading with maximum load front
6,560 kg
(14,462.3 lb)- Axle loading with maximum load rear
800 kg
(1,763.7 lb)- Axle loading without load front
1,885 kg
(4,155.7 lb)- Axle loading without load rear
2,475 kg
(5,456.4 lb)- Track width front
1,000 mm
(39.4 in)- Track width rear
953 mm
(37.5 in)- Height of mast when lowered
2,070 mm
(81.5 in)- Free lift
155 mm
(6.1 in)- Overall height with mast raised
4,217 mm
(166 in)- Height to top of overhead guard
2,132 mm
(83.9 in)- Length to fork face
2,736 mm
(107.7 in)- Fork carriage width
1,100 mm
(43.3 in)- Ground clearance under mast with load
120 mm
(4.7 in)- Turning circle radius
2,400 mm
(94.5 in)- Travel speed
Max.: 20 km/h
(12.4 mph)Min.: 18 km/h
(11.2 mph)- Lifting speed
Max.: 0.46 m/s
(1.509 ft/s)Min.: 0.44 m/s
(1.444 ft/s)- Lowering speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0.45 m/s
(1.476 ft/s)- Rated drawbar pull
1,680 daN
- Gradeability
Max.: 20 %
Min.: 19 %
- Rated output
36.8 kW
(50 hp)- Rated speed
2,500 rpm
(15,708 rad.min-1)
Description
Overview
Key product highlights
Summary (key functions / use):
Technical specifications:
- 3-ton diesel hydraulic forklift engineered for warehouse, storage and material handling operations.
- Designed for continuous industrial use with focus on operator ergonomics, safety and easy maintenance.
Key product highlights
- Comfortable operation: ergonomic cab layout with increased legroom, reduced steering-wheel size, sound- and heat-insulated integral metal hood and shock-absorbing mounts to lower vibration and operator fatigue.
- Safety: high-strength integral frame (manganese steel) and reinforced rib plate structure for improved stability and reduced steering-axle load to extend tire life.
- Maintenance & repair: integrated electrical control box, wide maintenance access, hood with large opening angle and standard fault-code display for faster troubleshooting.
- Solid structural design: finite element analysis and design optimization applied to key structural components to increase strength and stiffness.
Summary (key functions / use):
- Application: diesel forklift for storage, logistics and material transfer.
- Rated lifting capacity: 3 t.
- Power source: Diesel.
- Max lifting height (standard): 3000 mm.
- Place of origin: Jiangsu, China.
Technical specifications:
- Rated loading capacity: 3 Ton
- Max lifting height (standard): 3000 mm
- Free lifting height: 155 mm
- Mast height (lowered): 2070 mm
- Mast height (extended, incl. backrest): 4217 mm
- Height of overhead guard (cabin): 2132 mm
- Overall length: 3806 mm
- Length to face of forks: 2736 mm
- Overall width: 1225 mm
- Fork size (L/W/T): 1070 / 122 / 45 mm
- Fork carriage: ISO3A
- Fork-carriage width: 1100 mm
- Ground clearance (loaded, below mast): 120 mm
- Wheelbase: 1750 mm
- Tread (front): 1000 mm
- Tread (rear): 953 mm
- Min turning radius: 2400 mm
- Fork adjustment range (outside) max/min: 1100 / 244 mm
- Service (operating) weight: 4360 kg
- Weight (repeated): 4360 kg
- Load center distance: 500 mm
- Axle load (laden/unladen, front/rear): 6560 / 800 kg (laden/unladen)
- Axle load (unladen/laden, front/rear): 1885 / 2475 kg
- Tyres: pneumatic
- Tyre size (front): 28×9-15-14PR
- Tyre size (rear): 6.50-10-10PR
- Mast tilt angle (front/rear): 6° / 12°
- Aisle width for pallets 1000×1200 (crossways): 4147 mm
- Aisle width for pallets 800×1200 (lengthways): 4277 mm
- Travel speed (laden/unladen): 18 / 20 km/h
- Lift speed (laden/unladen): 440 / 460 mm/s
- Lowering speed (unladen/laden): 450 / 500 mm/s
- Drawbar pull (laden): 16.8 kN
- Gradeability (laden/unladen): 19 / 20 %
- Service / parking brake type: Hydraulic / Mechanical
- Engine model: 4D29G31
- Engine manufacturer: Xinchai
- Engine rating: 36.8 kW @ 2500 rpm
- Engine torque: 155 N·m @ 1700-1900 rpm
- Number of cylinders: 4
- Bore × Stroke: 93 × 105 mm
- Emission: Stage III
- Transmission type: Hydraulic
- Transmission manufacturer: Zhongchai
- Number of gears (front/rear): 1 / 1
