Diesel forklift XCF35KT
ride-onharborexterior

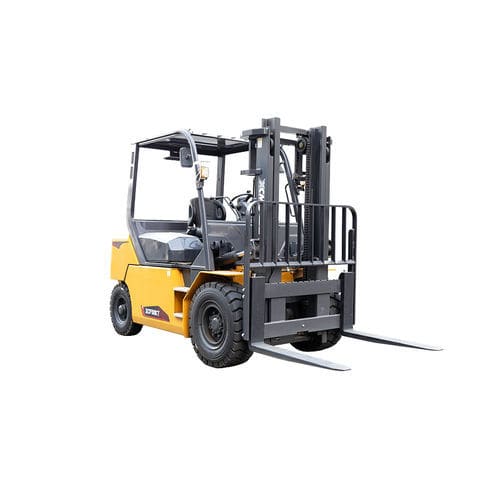

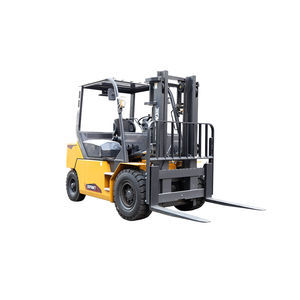

Diesel forklift - XCF35KT - XCMG - ride-on / harbor / exterior
Diesel forklift - XCF35KT - XCMG - ride-on / harbor / exterior
Diesel forklift - XCF35KT - XCMG - ride-on / harbor / exterior - image - 2
Add to favorites
Compare this product
Go to the XCMG website for more information

Characteristics

Motor type
diesel
Operator
ride-on
Applications
industrial, for the steel industry, harbor, for warehouse, exterior
Other characteristics
counterbalanced, heavy-duty, pneumatic tire, for heavy loads
Carrying capacity

3,500 kg
(7,716.2 lb)

Lifting height

3 m
(9'10" )

Overall width

1,225 mm
(48.2 in)

Overall length

3,868 mm
(152.3 in)

Load center distance

500 mm
(19.7 in)

Weight without load

4,608 kg
(10,158.9 lb)

Axle loading with maximum load front

7,211 kg
(15,897.5 lb)

Axle loading with maximum load rear

897 kg
(1,977.5 lb)

Axle loading without load front

1,747 kg
(3,851.5 lb)

Axle loading without load rear

2,861 kg
(6,307.4 lb)

Track width front

1,000 mm
(39.4 in)

Track width rear

953 mm
(37.5 in)

Height of mast when lowered

2,120 mm
(83.5 in)

Free lift

160 mm
(6.3 in)

Ground clearance at center of wheelbase with load

120 mm
(4.7 in)

Turning circle radius

2,450 mm
(96.5 in)

Travel speed

Max.: 20 km/h
(12.4 mph)

Min.: 18 km/h
(11.2 mph)

Gradeability

19 %

Rated output

36.8 kW
(50 hp)

Description

Overview
The XCMG XCF35KT is a 3.5-ton diesel counterbalanced forklift engineered for heavy-duty logistics operations in ports, docks, freight yards, steel mills and large warehouses. It integrates a high-strength manganese steel frame and an integral hood to improve structural rigidity and component life while maintaining stable lift performance.

Key features
  • Powertrain: Diesel engine suitable for outdoor and industrial environments.
  • Robust frame: High-strength manganese steel internal rib plate structure and integral hood for increased rigidity.
  • Operational adaptability: Designed for varied climates and demanding working conditions.
  • Applications: Ports, docks, freight yards, steel mills, warehouses and other logistics areas.

Specifications / Technical data
  • Model number: XCF35KT
  • Brand: XCMG
  • Place of origin: Jiangsu, China
  • Rated loading capacity: 3.5T (3500 kg)
  • Load center distance: 500 mm
  • Wheelbase: 1750 mm
  • Service weight: 4608 kg
  • Axle load, loaded (front/rear): 7211 / 897 kg (as listed)
  • Axle load, unloaded (front/rear): 1747 / 2861 kg (as listed)
  • Tyre type: Pneumatic
  • Tread, front: 1000 mm
  • Tread, rear: 953 mm
  • Free lifting height: 160 mm
  • Height, mast lowered: 2120 mm
  • Max lift height (standard): 3000 mm
  • Overall length: 3868 mm
  • Overall width: 1225 mm
  • Fork size (L/W/T): 1070 / 122 / 50 mm
  • Ground clearance: 120 mm
  • Min turning radius: 2450 mm
  • Travel speed, loaded / unloaded: 18 / 20 km/h
  • Lift speed, loaded / unloaded: 360 / 380 m/s (value shown on page)
  • Gradeability: 19 %
  • Engine rating: 36.8 kW / 2500 rpm
  • Engine torque: 155 N·m / 1700-1900 rpm
  • Net / service weight listed: 4608 kg
