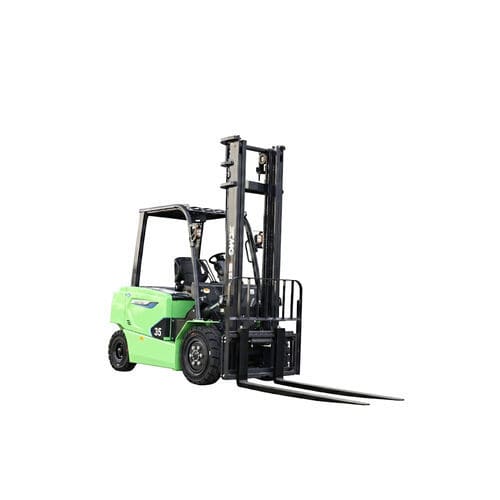

Electric forklift XCB35-L6-S

ride-onexteriorfor warehouse

Overview
The XCMG XCB35-L6-S is a 3.5 Ton electric counterweight forklift engineered for medium- to heavy-duty material handling. It combines AC traction and MOS/AC control with an optional removable Kunlun S-type 80 V / 206 Ah lithium battery for rapid swap in multi-shift operations, plus ergonomic cab features and simplified service access.

Key product highlights

• High efficiency: Kunpeng single-drive S-type traction system with high comprehensive performance.
• Removable battery: Kunlun S-type 80 V / 206 Ah battery removable from below for quick replacement (suitable for multi-shift or no on-site charging environments).
• Serviceability: Base plate pad and counterweight cover are easy to remove; main maintenance points accessible at front and rear.
• Drive modes: PES three-gear switching adapts speed and acceleration to different working conditions.
• Operator ergonomics: Wide-view mast, USB interface, cup and phone holders, and spacious cab for operator comfort.

Summary

• Rated capacity: 3.5 Ton
• Max lifting height: 3000 mm
• Power source: Electric (AC)
• Type: Electric forklift (counterweight)
• Brand: XCMG
• Place of origin: Jiangsu, China

Selected specifications

• Model: XCB35-L6-S
• Weight (with battery): 4500 kg (deadweight)
• Battery: 80 V / 206 Ah (removable Kunlun S-type), battery weight ≈ 260 kg
• Traction motor: 12 kW; Lifting motor: 16 kW
• Controller: MOSFET / AC
• Fork dimensions (s/e/l): 45 / 122 / 1070 mm; fork carriage: ISO2328 3A
• Tires: front 28×9-15-14PR (pneumatic) / rear 18×7-8 (solid option)
• Overall length (with forks): 3615 mm; overall width: 1250 mm; axle base: 1750 mm
• Travel speed (full/no load): 14 / 14 km/h; Lifting speed (full/no load): 0.31 / 0.43 m/s
• Turning radius Wa: 220 mm; Right-angle aisle (1000×1200 cross-fork) Ast: 3897 mm
• Maximum traction (full load): 14000 N; Maximum gradeability (full/no load): 15% / 20%
• Attachment operating pressure: 17.5 MPa

Applications & options

• Intended for warehouses, distribution centers, manufacturing and outdoor loading where a 3.5 Ton electric counterweight forklift is required.
• Removable battery option supports continuous multi-shift operation and use where on-site charging is restricted.
• Available options: pneumatic or solid tires, different mast heights and attachments, chargers and after-sales service packages.
