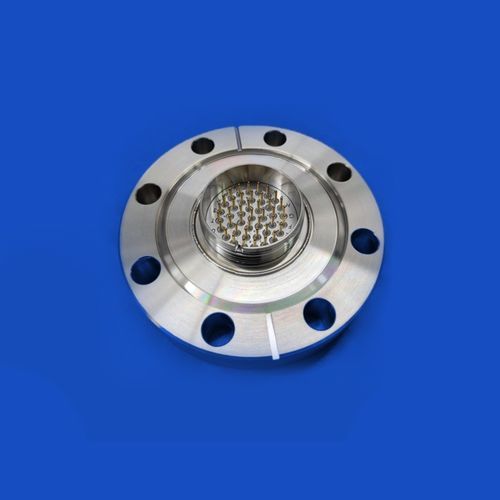

Vacuum feedthrough multiple-elementhermetically-sealedcorrosion-resistant
Add to favorites
Compare this product
Characteristics
- Product applications
- vacuum
- Configuration
- multiple-element
- Protection level
- hermetically-sealed, gas-tight, corrosion-resistant
- Domain
- for the vacuum industry
- Other characteristics
- vacuum, high-voltage, high-current, high wire density, adjustable, modular
Description
Product Overview
INNOVACERA supplies a circular multipin vacuum feedthrough engineered for reliable electrical feedthrough in high and ultra-high vacuum systems. The unit supports a customizable number of conductor pins and adjustable pin sizes to match required current ratings. Designed for stable sealing performance under pressure and across a wide temperature range, it offers high insulation resistance and low leakage rate.
Key Points
CF35 flange with weldable installation. Supports up to 41 pins. Insulation 1000MΩ. Withstand voltage 1500V. Rated current per pin up to 5A. Constructed in SUS304 and suitable for UHV applications.
Technology Data
Flange Type: CF35
Installation: Weldable
Pin number: 41Pin
Electric current: 5A
Withstand voltage: 1500V
Insulation: 1000MΩ
Temperature: (-100℃~+200℃)
Pressure: 5MPa
Leakage rate: <1*109Pa·m/s
Material: SUS304
Vacuum Application: UHV
Specifications
INNOVACERA supplies a circular multipin vacuum feedthrough engineered for reliable electrical feedthrough in high and ultra-high vacuum systems. The unit supports a customizable number of conductor pins and adjustable pin sizes to match required current ratings. Designed for stable sealing performance under pressure and across a wide temperature range, it offers high insulation resistance and low leakage rate.
Key Points
CF35 flange with weldable installation. Supports up to 41 pins. Insulation 1000MΩ. Withstand voltage 1500V. Rated current per pin up to 5A. Constructed in SUS304 and suitable for UHV applications.
Technology Data
Flange Type: CF35
Installation: Weldable
Pin number: 41Pin
Electric current: 5A
Withstand voltage: 1500V
Insulation: 1000MΩ
Temperature: (-100℃~+200℃)
Pressure: 5MPa
Leakage rate: <1*109Pa·m/s
Material: SUS304
Vacuum Application: UHV
Specifications
- Flange Type: CF35
- Installation: Weldable
- Pin number: 41Pin (customizable conductor pin quantity)
- Electric current rating: 5A (pin sizes adjustable to support different currents)
- Withstand voltage: 1500V
- Insulation resistance: 1000MΩ
- Operating temperature range: -100℃ to +200℃
- Pressure rating: 5MPa
- Leakage rate: <1*109Pa·m/s
- Material: SUS304
- Intended for UHV (Ultra-High Vacuum) applications
