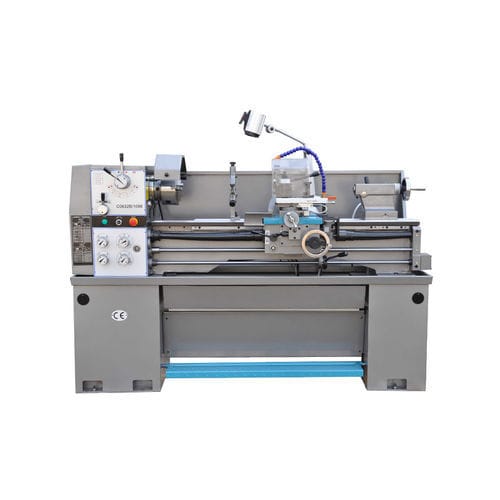

Manual lathe C0632B/C0636B

horizontalhigh-performancehigh-productivity

Precision ground and hardened bed ways. Spindle speed range 70-2000RPM.Headstock gears are made of high quality steel,ground and hardened. Easy operating gear box has various feeds and threadcutting function. Item - Unit - C0632B - C0636B Processing - - - Max. swing Dia. over bed - mm - Ø330 - Ø360 Max. swing Dia. in gap - mm - Ø476 - Ø508 Max. swing Dia. over slide - mm - Ø185 - Ø215 Width of bed - mm - 186 - 186 Max. length of workpiece - mm - 750/1000 - 750/1000 Spindle - - - Spindle nose - - D4 - D4 Spindle bore - mm - Ø38 - Ø38 Taper of spindle bore - - M.T.No.5 - M.T.No.5 Steps of spindle speed - - 8 - 8 Range of spindle speed - rpm - 70~2000 - 70~2000 Thread - - - Inch thread range & No. - - 40~2¼T.P.I. /20 - 40~2¼T.P.I. /20 Metric thread range & No. - - 0.45~10mm/28 - 0.45~10mm/28 Feed - - - Range of longitudinal feed - mm/r - 0.026~0.491 - 0.026~0.491 Range of cross feed - mm/r - 0.007~0.133 - 0.007~0.133 Tailstock - - - Max travel of tailstock quill - mm - 95 - 95 Taper of tailstock quill - - M.T.No.3 - M.T.No.3 Others - - - Power of main motor - kW - 1.5 - 1.5 1 m net weight - kg - 495 - 520 Overall dimensions (L×W×H) - mm - 1545/1795×695×1270 - 1545/1795×695×1286 Coolant pump motor power - kW - 0.04 - 0.04
