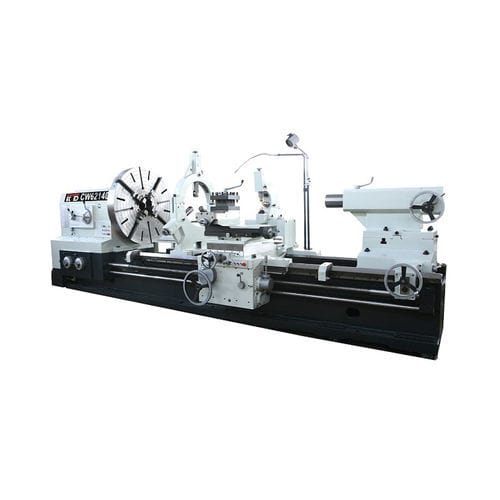

Manual lathe CW61140/62140/61160/62160

horizontalprecisionhigh-performance

The surface of the bedways is supersonic frequency handened and precision grinding, long life, low noise.The spindle system is high in rigtidy and accuracy. Rapid feed structure is available on apron. Item - Unit - CW61140/CW62140 - CW61160/CW62160 Processing 　 - 　 - 　 Width of bed - mm - 970 Effective length of gap - mm - 590 Max. Weight of work piece( between centers) - kg - 6000 Spindle - 　 - 　 - 　 Spindle nose - 　 - A₂-15 Spindle bore - mm - Ф130 Taper of bore - 　 - MetricФ140 1:20 Steps of spindle speed　 - 24(Normal) 12(Reverse) Pitch & Dia. of longitudinal ball screw mm - 12/Ф70 Number of longitudinal and cross feeds - 　 - 97 Feed - 　 - 　 - 　 Range of longitudinal feedmm/r - 0.1~12 Range of cross feedmm/r - 0.05~6 Range of middle tool post feedmm/r - 0.025~3 Thread cutting - 　 - 　 - 　 Metric range/No. - 　 - 1~120mm/45 Inch range/No - 　 - 30~1/4T.P.I/42 D.P.Range/No. - 　 - 1/2~60D.P/48 Module range/No. - 　 - 0.5~60M.P/46 Rapid traverse - 　 - 　 - 　 Longituding - mm/min - 3740 Cross - mm/min - 1870 Tailstock - 　 - 　 - 　 External Dia. - mm - Ф160 Taper of bore - mm - Metric Ф80 Max. traverse - mm - 300 Vertical distance from spindle center to installing basis - mm - 51 Travel of compound rest - mm - 400 Swing angle of tool post - Deg. ±90 Max.travel of cross slide - mm - 840 - 900 Max. size of tool shank (W×H) - mm - 50×50 Power of main motor - kW - 22 Rapid feed motor power - kW - 1.5 Coolant pump power - w - 0.25 3m machine overall dimensions(L×W×H) - mm - 6100×2080×2130 - 6100×2130×2300 3m Net weight - kg - 14100 - 15100
