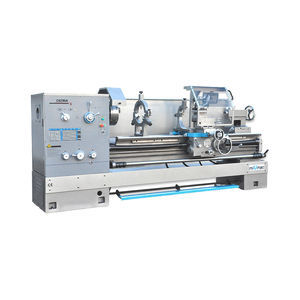

Manual lathe C6140ZK/6240ZK/6146ZK/6246ZK

horizontalhigh-performancehigh-productivity

The guideways and all gears in the headstock are hardened and precision ground.The spindle system is high in rigidity and accuracy.The machines have powerful headstock gear train, high rotating accuracy and smooth running with low noise. Item - Unit - C6140ZK - C6240ZK - C6146ZK - C6246ZK Processing 　 - 　 - 　 - 　 - 　 Width of bed - mm - 312 - Effective gap length - mm - 200 Spindle - 　 - 　 - 　 - 　 - 　 Spindie nose - 　 - D6 - Spindle bore - mm - Φ52 - Taper of bore - 　 - M.T.No.6 - Steps of spindle speed　 - 12 - Thread cutting - 　 - 　 - 　 - 　 - 　 Metric range/No. - 　 - 0.5～20mm/24 - Inch range/No. - 　 - 72~1⅝T.P.I/61 D.P.Range/No. - 　 - 96~3¼D.P/45 - Module range/No. - 　 - 0.25~10M.P/20 - Range of feeds - 　 - 　 - 　 - 　 - 　 Longitudinal - mm - 0.04~2.46 - Cross - mm - 0.03~1.23 Tailstock sleeve - 　 - 　 - 　 - 　 - 　 External Dia. - mm - Φ60 - Φ60 - Φ60 - Φ60 Taper of bore - 　 - M.T.No.4 - M.T.No.4 - M.T.No.4 - M.T.No.4 Max.traverse - mm - 120 - 120 - 120 - 120 Max.travel of compound rest - mm - 130 - 130 - 130 - 130 Max.cross slide travel - mm - 240 - 240 - 240 - 240 Max. size of tool shank(WxH) - mm - 25×25 - 25×25 - 25×25 - 25×25 Power of main motor(double speeds) - kW - 4/5.5 - 4/5.5 - 4/5.5 - 4/5.5 Overall dimensions(L×W×H) - mm - 2140/2360/2860×1000×1230 - 2140/2360/2860×1000×1230 - 2140/2360/2860×1000×1250 - 2140/2360/2860×1000×1250 Net weight - kg - 1650/1730/1890 - 1730/1810/1970 - 1700/1780/1940 - 1780/1860/2020
