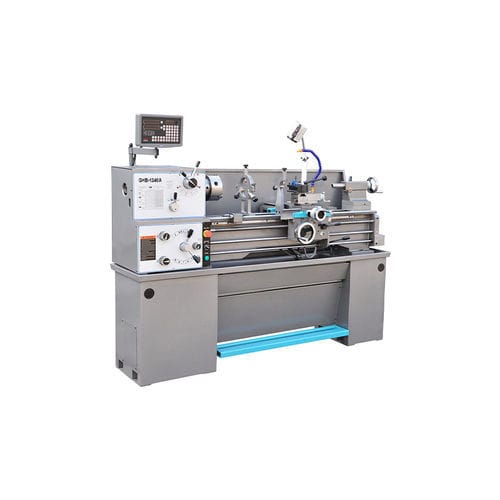

Manual lathe GHB-1340A
horizontalhigh-performancehigh-productivity

Manual lathe - GHB-1340A - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity
Manual lathe - GHB-1340A - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity
Manual lathe - GHB-1340A - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity - image - 2
Manual lathe - GHB-1340A - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity - image - 3
Add to favorites
Compare this product
Go to the Zhejiang KAIDA Machine Tool CO., LTD. website for more information

Characteristics

Control type
manual
Spindle orientation
horizontal
Performance
high-performance, high-rigidity, high-productivity, high-capacity, high-efficiency
Diameter

198 mm, 330 mm, 476 mm
(7.8 in, 12.99 in, 18.74 in)

Spindle speed

Min.: 70 rpm
(439.823 rad.min-1)

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Maximum part length

1,000 mm
(39 in)

Nominal power

1.5 kW
(2 hp)

Overall lenght

1,905 mm
(75 in)

Overall width

695 mm
(27 in)

Overall height

1,200 mm
(47 in)

Weight

650 kg
(1,433 lb)

Description

Precision ground and supersonic frequency hardened bed ways. The spindle is supported with precision roller bearings. Headstock gears are made of high quality steel,ground and hardened.Spindle speed range 70--2000RPM. Item - Unit - GHB-1340A Processing - - Width of bed - mm - 186 Spindle - - Spindle nose - - D4 Spindle bore - mm - Ø38 Taper of spindle bore - - M.T.No.5 Steps of spindle speed - - 8 Thread - - Inch thread range & No. - - 3½~80T.P.I/38 Metric thread range & No. - - 0.45~10mm/23 Feed - - Range of longitudinal feed - mm/r - 0.037~0.8 Range of cross feed - mm/r - 0.01~0.22 Tailstock - - Max travel of tailstock quill - mm - 95 Taper of tailstock quill - - M.T.No.5 Others - - Coolant pump motor power - kW - 0.04 Power of main motor - kW - 1.5 Net weight - kg - 650 Overall dimensions (L×W×H) - mm - 1905×695×1200
