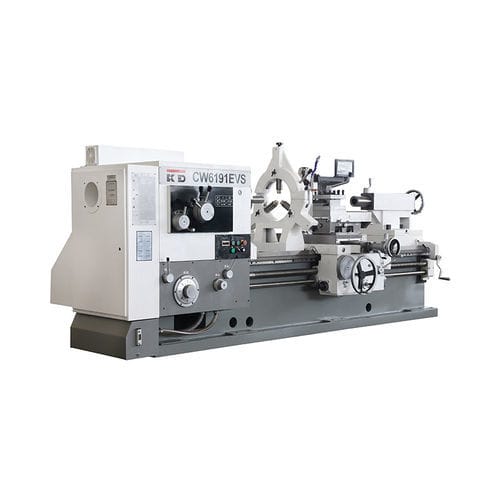

Manual lathe CW6191B EVS

horizontalprecisionhigh-productivity

The surface of the bedways is supersonic frequency handened and precision grinding, long life, low noise.The spindle system is high in rigtidy and accuracy. Rapid feed structure is available on apron. Item Unit - CW6191 EVS Spindle - - Spindle nose - - D11 Spindle bore - mm - Φ105 Dia. and taper of spindle hole - - MetricΦ120 1：20 Steps of speed - - 4 gears (stepless in each) Feed - - Number of longitudinal feed - - 56 Range of longitudinal feed(1：1） - mm/r - 0.1~1.52 Range of longitudinal feed(8：1） - mm/r - 0.8~12.16 Range of longitudinal feed (using change gears） - mm/r - 0.065~0.76 Number of cross feed - - 56 Range of cross feeds - - Half of the longitudinal feeds Longitudinal rapid movement speed - mm/ min - 4000 Cross rapid movement speed - mm/ min - 2000 Threading range & number - - Metric thread - - 1 ~ 120mm/43 Inch thread - - 14 ~ 1T.P.I/26 Module thread - - 0.5 ~ 60mm /45 D.P. thread - - 28 ~ 1 DP/24 Pitch of longitudinal screw - mm - 12 Travel - - Distance from spindle center to tool support surface - mm - 33 Max. size of tool shank (W×H) - mm - 32×32 Max. cross slide travel - mm - 550 Max. swing angle of middle tool post - - ±90° Max. travel of compound rest - mm - 200 Max. cross traverse of tailstock - mm - ±15 Tailstock sleeve - - Taper of bore - - M.T.No.6 Max. traverse - mm - 250 External Dia. - mm - 100 Others - - Power of main motor - kW - 15 Rapid feed motor power kW - 1.1 Coolant pump power - W - 90 Overall dimensions (L×W×H) - mm - 3660/4155/5155×1450×1510 Net weight - kg - 4950/5250/5900
