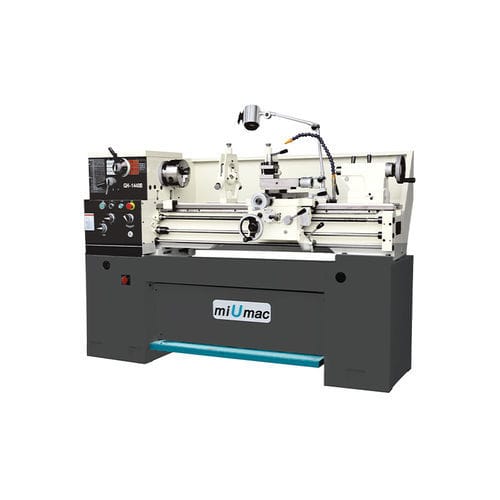

Manual lathe GH-1440B
horizontalhigh-performancehigh-productivity

Manual lathe - GH-1440B - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity
Manual lathe - GH-1440B - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity
Manual lathe - GH-1440B - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity - image - 2
Manual lathe - GH-1440B - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity - image - 3
Add to favorites
Compare this product
Go to the Zhejiang KAIDA Machine Tool CO., LTD. website for more information

Characteristics

Control type
manual
Spindle orientation
horizontal
Performance
high-performance, high-rigidity, high-productivity, high-capacity, high-efficiency
Diameter

220 mm, 356 mm, 506 mm
(8.66 in, 14.02 in, 19.92 in)

Maximum part length

750 mm, 1,000 mm
(30 in, 39 in)

Nominal power

1.5 kW, 2.4 kW
(2 hp, 3.3 hp)

Overall lenght

1,820 mm
(72 in)

Overall width

740 mm
(29 in)

Overall height

1,240 mm
(49 in)

Weight

750 kg
(1,653 lb)

Description

1. Foot brake giving rapid braking. Emergency stop button equipped on the front of head-stock. 2. Jog button for easy gear engagement and inching spindle. Open type chip pan easily to remove chips. 3. Extra safety switch shuts down machine automatically for changing belt or gear for thread cutting. Item - Unit - GH-1440B Processing - - Width of bed - mm - 206 Spindle - - Spindle nose - - D4 Spindle bore - mm - Ø38 Taper of spindle bore - - M.T.No.5 Steps of spindle speed - - 16 Thread - - Inch thread range & No. - - 4~56T.P.I/28 Metric thread range & No. - - 0.4~7mm/45 Feed - - Range of longitudinal feed - mm/r - 0.043~0.653 Range of cross feed - mm/r - 0.021~0.327 Tailstock - - Max travel of tailstock quill - mm - 120 Dia. of tailstock quill - mm - Ø45 Taper of tailstock quill - - M.T.No.3 Others - - Coolant pump motor power - kW - 0.04 Net weight - kg - 750 Overall dimensions (L×W×H) - mm - 1820×740×1240 Coolant pump motor power - kW - 0.04
