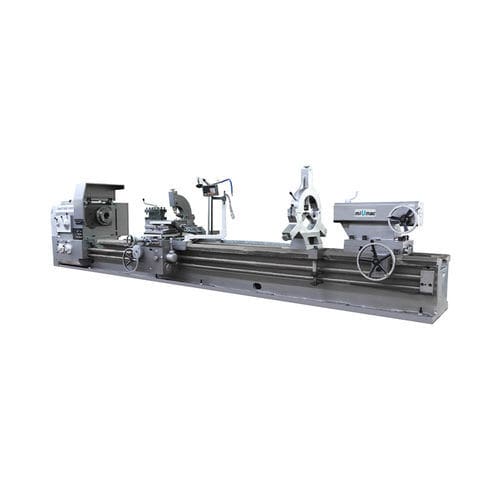

Manual lathe CW series

horizontalhigh-performancehigh-productivity

The surface of the bedways is supersonic frequency handened and precision grinding, long life, low noise. The spindle system is high in rigtidy and accuracy. Rapid feed structure is available on apron. Item - Unit - CW61100C/CW62100C - CW61125C/CW62125C - CW61140C/CW62140C Processing 　 - 　 - 　 - 　 Width of bed - mm - 755 Effective length of gap - mm - 590 Max. Weight of work piece(between centers) - kg - 5000 Spindle - 　 - 　 - 　 - 　 Spindle nose - 　 - A₂-15 Spindle bore - mm - Ф130 Taper of bore - 　 - Metric Ф140 1:20 Step of spindle speed 　 - 24(Normal) 12(Reverse) Pitch & Dia. of longitudinal ball screw mm - 12/Ф70 Number of longitudinal and cross feeds - 　 - 97 Feed - 　 - 　 - 　 - 　 Range of longitudinal feed mm/r - 0.1～12 Range of cross feed mm/r - 0.05~6 Range of middle tool post feed mm/r - 0.025~3 Thread cutting - 　 - 　 - 　 - 　 Metric range/No. - 　 - 1~120mm/45 Inch range/No - 　 - 30～1/4T.P.I/42 D.P.Range/No. - 　 - 0.5~60D.P/48 Module range/No. - 　 - 1/2~60M.P/46 Rapid traverse - 　 - 　 - 　 - 　 Longituding - mm/min - 3740 Cross - mm/min - 1870 middle tool post - mm/min - 935 Tailstock - 　 - 　 - 　 - 　 External Dia. - mm - Ф160 Taper of bore - 　 - Metric Ф80 Max. traverse - mm - 300 Vertical distance from spindle center to installing basis - mm - 41 - 51 Swing angle of tool post - Deg. ±90 Max. travel of middle tool post - mm - - - 400 Max. travel of top slide - mm - 200 - 200 Max. travel of cross slide - mm - 720 Max. size of tool shank (W×H) - mm - 40×40 - 50×50 Power of main motor - kW - 22 Rapid feed motor power - kW - 1.5 Coolant pump power - kW - 0.25 3m machine overall dimensions(L×W×H) - mm - 6000×1860×1700 - 6000×1860×1825 - 6000×1860×1900 3m Net weight - kg - 11200 - 12000 - 12500
