Manual lathe GH-1440K
horizontalhigh-performancehigh-productivity

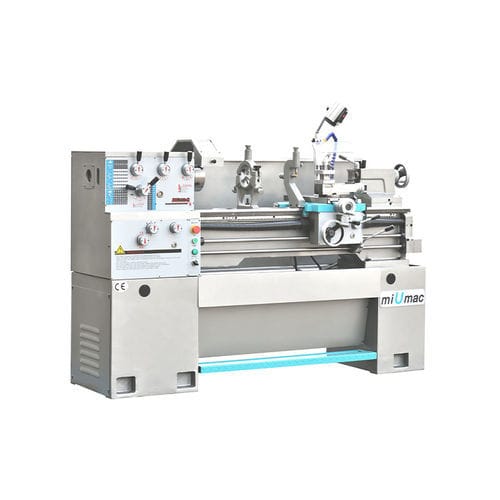

Manual lathe - GH-1440K - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity
Manual lathe - GH-1440K - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity
Manual lathe - GH-1440K - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity - image - 2
Manual lathe - GH-1440K - Zhejiang KAIDA Machine Tool CO., LTD. - horizontal / high-performance / high-productivity - image - 3
Add to favorites
Compare this product
Go to the Zhejiang KAIDA Machine Tool CO., LTD. website for more information

Characteristics

Control type
manual
Spindle orientation
horizontal
Performance
high-performance, high-rigidity, high-productivity, high-capacity, high-efficiency
Diameter

210 mm, 356 mm, 508 mm
(8.27 in, 14.02 in, 20 in)

Maximum part length

750 mm, 1,000 mm
(30 in, 39 in)

Nominal power

2.2 kW
(3 hp)

Overall lenght

1,900 mm
(75 in)

Overall width

765 mm
(30 in)

Overall height

1,185 mm
(47 in)

Weight

1,250 kg
(2,756 lb)

Description

1. Foot brake giving rapid braking. Emergency stop button equipped on the front of head-stock. 2. Jog button for easy gear engagement and inching spindle. 3. Extra safety switch shuts down machine automatically for changingbelt or gear for thread cutting. Item - Unit - GH-1440K Processing - - Width of bed - mm - 260 Spindle - - Spindle nose - - D4 Spindle bore - mm - Ø40 Taper of spindle bore - - M.T.No.5 Steps of spindle speed - - 12 Thread - - Inch thread range & No. - - 4~56T.P.I/28 Metric thread range & No. - - 0.4~7mm/37 Feed - - Range of longitudinal feed - mm/r - 0.043~0.653 Range of cross feed - mm/r - 0.024~0.359 Tailstock - - Max travel of tailstock quill - mm - 120 Dia. of tailstock quill - mm - Ø45 Taper of tailstock quill - - M.T.No.3 Others - - Coolant pump motor power - kW - 0.04
