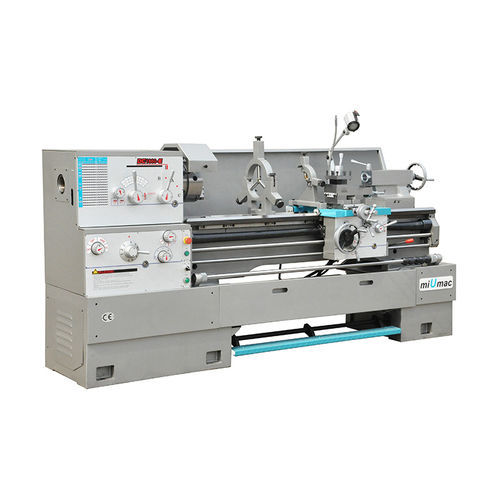

Manual lathe C6236ZX/6240ZX/6246ZX/6250ZX

horizontalhigh-performancehigh-productivity

1. The guide rail of the bed is finely ground after ultra-light audio quenching, and has a long service life. The gears are precision ground, and the noise of the whole machine is low. 2. The spindle bore size is 80mm. The spindle system is high in rigitdy and accuracy. 3. There is no need for change gear.The machine can turn about 150 kinds of metric, Inch, Module, and D.P. threads. Item - Unit - C6236ZX - C6240ZX - C6246ZX - C6250ZX Processing - 　 - 　 - 　 - 　 - 　 Width of bed - mm - Ф336 Effective gap length - mm - 200 - Spindle - 　 - 　 - 　 - 　 - 　 Spindle nose - 　 - D8 - Spindle bore - mm - Ф80 - Taper of bore - 　 - M.T.N0.7 - Steps of spindle speed - 　 - 12 - Ranges of spindle speed - rpm - 42-1800 - 25-1800 - Thread cutting - 　 - 　 - 　 - 　 - 　 Metric range/No. - 　 - 0.5~20mm/24 Inch range/No. - 　 - 72~1⅝T.P.I/61 - Module threads - 　 - 96~3¼D.P/45 - Module range/No. - 　 - 0.25~10 M.P/20 - Feed - 　 - 　 - 　 - 　 - 　 Range of longitudinal feedmm/r - 0.04~2.46 - Range of cross feed mm/r - 0.02~1.23 Tailstock - 　 - 　 - 　 - 　 - 　 External Dia. - mm - Ф75 - Ф75 - Ф75 - Ф75 Taper of bore - 　 - M.T.NO.4 - M.T.NO.4 - M.T.NO.5 - M.T.NO.5 Max. traverse - mm - 130 - 130 - 130 - 130 Max.travelof compound rest - mm - 130 - 130 - 130 - 130 Max.cross slide travel - mm - 280 - 280 - 280 - 310 Max. size of tool shank(W×H) - mm - 25×25 - 25×25 - 25×25 - 25×25 Power of main motor - kW - 5.5 - 5.5 - 5.5 - 5.5 Overall dimensions(L×W×H) - mm - 2310/2810×1050×1310 - 2310/2810×1050×1340 - 2310/2810/3320×1050x1370 - 2310/2810/3320×1050x1390 Net weight - kg - 2250/2550 - 2300/2600 - 2350/2650/2900 - 2750/3000/3250
