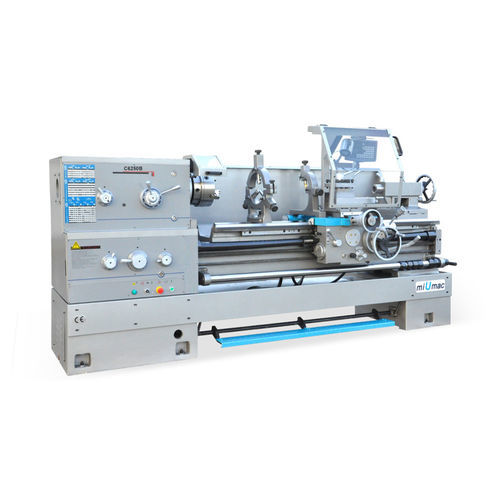

Manual lathe C6140W/6250B/6256B/6266B

horizontalhigh-performancehigh-productivity

Hardened and ground bed way and gears in head-stock are with long life and low noise .Spindle system is of high rigidity and precision.Rapid feed structure is available on Apron.Headstock adopts clutch structure. Item - Unit - C6140W - C6250B - C6256B - C6266B Processing - - - - - Length of gap - mm - 200 Width of bed - mm - 405 Spindle - 　 - 　 - 　 - 　 - 　 Spindle nose - 　 - C6 - D8 - Spindle bore - mm - Ф56 - Ф80 Spindle bore taper - 　 - M.T.No.6 - M.T.NO.7 - Steps of spindle speed 24 - Thread - 　 - 　 - 　 - 　 - 　 Metric thread - - 0.5~224mm/48 - Inch thread - 　 - 72~1/8T.P.I/48 - D.P. thread - 　 - 56~1/4D.P/45 - Module thread - 　 - 0.5~112M.P/42 Feed - 　 - 　 - 　 - 　 - 　 Range of longitudinal feed mm - 0.028~6.43 - 0.063~6.43 - 0.063~6.43 - 0.063~6.43 Range of cross feed mm - 0.012~2.73 - 0.027~2.73 - 0.027~2.73 - 0.027~2.73 Max. size of tool shank(W×H) - mm - 25×25 - 25×25 - 25×25 - 25×25 Travel of compound rest - mm - 145 - 145 - 145 - 145 Max. cross slide travel - mm - 320 - 340 - 　 - 360 Z rapid movement speed m/min - 4.5 - 4.5 - 4.5 - 4.5 X rapid movement speed m/min - 1.9 - 1.9 - 1.9 - 1.9 Tailstock - 　 - 　 - 　 - 　 - 　 bore taper - 　 - M.T.No.5 - M.T.No.5 - M.T.No.5 - M.T.No.5 Max. travel - mm - 150 - 150 - 150 - 150 External Dia. - mm - Ф75 - Ф75 - Ф75 - Ф75 Others - 　 - 　 - 　 - 　 - 　 Power of main motor - kW - 7.5 - 7.5 - 7.5 - 7.5 Overall dimensions(L×W×H) - mm - 2500/3000/3500×1000×1285 - 2500/3000/3500/4500× 1280/1070x1290 - 2500/3000/3500/4500× 1280/1070×1350 - 2500/3000/3500/4500× 1280/1070×1450 Net weight - kg - 2550/2750/2950 - 2750/3000/3250/3600 - 2400/2650/2900/3250 - 3000/3200/3400/3900
