Mixing tank

emulsificationfruit juicefor milk

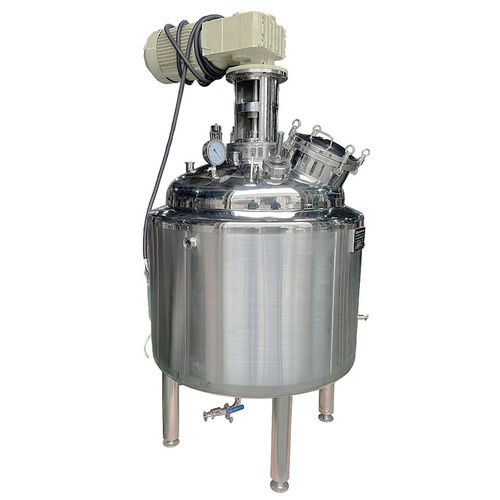

High Speed super-fine emulsifying tank is the most advanced blending equipment in the fields of dairy products, beverages, fruit juice and foods etc. When the high-speed super-fine emulsification paddle works, it throws the materials in the center of rotor to stator at a high speed, then through teeth clearance oof stator and shearing, collision and crushing between rotor and stator, the super-fine emulsification is realized. Therefore, it is an integrated equipment comprising multi-function such as blending , emulsifying, homogenizing, solving and smashing etc. Feature Volume: 100L-5000L and multiple specification, also can design and manufacture according to customers’ requirement. The connection adopts Tri-clamp, and the tanks’ inner layer use 304 or 316L. The inner surface mirror polishing Ra<0.28 um~ 0.6um. Outer surface can be polished, wire drawn and sand blasted according to customers’ requirement. According to the requirements of production and processing, it can be designed with low heating, cooling, high-speed mixing system, sealing pressure system, vacuum system, measuring system and so on. According to different mixing materials and requirements to the mixing effect, the structure of impeller can be the turbine type, paddle, anchor type, frame type, screw conveyor and so on. Application Can be used as storage tank, mixing tank, temporary storage tank, mixing tank, etc., Used in liquid materials’ mixing and storage such as medicine, food,fruit juice beverage, dairy products, seasoning, brewing, beer, pharmaceutical, chemical and biological engineering.
