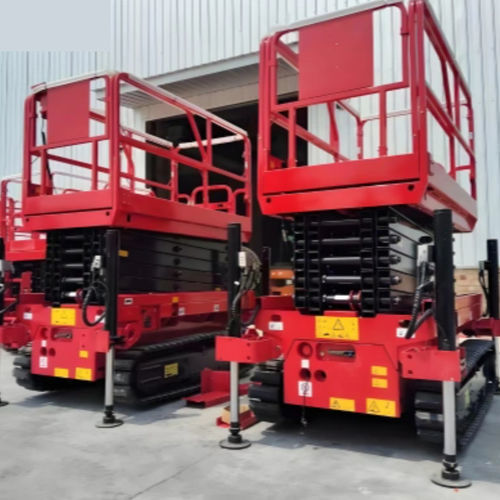

Mobile scissor lift YG series

trackdieselelectric

Overview
When job sites are defined by mud, gravel, or uneven surfaces, traditional wheeled lifts fall short. The tracked scissor lift is designed for outdoor and heavy construction use, providing lift stability and rough-terrain mobility. Tracked platforms expand access for construction, agriculture, industrial maintenance, infrastructure, landscaping and energy applications.

Key Off-Road Performance Features

• Gradeability: approximate 30° on standard 8m tracked models.
• Safe tilt: some models can operate safely on longitudinal slopes up to 15°.
• Integrated self-leveling system that automatically corrects platform angle in under 5 seconds.
• Average ground pressure: ≈5 psi (low ground pressure suitable for grass, historical sites or paved areas).
• Typical track width: ~250 mm.

Power Options

• Diesel: provides continuous runtime and raw engine power suited to large, remote rough-terrain sites; supports stable platform capacity even at maximum working heights.
• Electric: ideal for semi-open sites with strict noise and emission regulations.

Platform & Versatility

• Platforms available in multiple sizes; standard platform size approximately 2.1m × 1.1m.
• Tracked chassis enables platform heights from around 8 m up to about 14 m for tracked models.
• Typical applications: bridge inspection, transmission line maintenance, orchards/landscaping, solar and wind facility installation in remote or mountainous areas.

Operational Advantages & Ground Impact

• Low ground pressure (~5 psi) minimizes damage to surfaces compared with many wheeled all-terrain lifts (which can exert up to ~10 psi).
• Tracks provide superior mobility on mud, gravel and uneven terrain, reducing the need for extensive site preparation such as ground mats.

Success Case (example)

• A utility contractor operating on muddy, unpaved sites adopted a 10 m tracked scissor lift with ~5 psi ground pressure; result: elimination of ground protection mats, 2 days saved in preparation time and approximately 12% reduction in project cost.

Tracked Scissor Lift Parameter
Model | Up(m) | Load(kg) | Platform size(m) | Outline dimensions/guardrail folding(m) | Lifting motor | Weight(kg)
YG0608SP | 5.8 | 230 | 1.67*0.74 | 1.86*0.76*1.84 | 24v/3.3kw | 1580
YG0608 | 6 | 450 | 2.27*1.12 | 2.48*1.19*1.66 | 24v/3.3kw | 2170
YG0810NP | 8 | 230 | 2.27*0.81 | 2.48*0.83*1.99 | 24v/3.3kw | 2260
YG0810 | 8 | 450 | 2.27*1.12 | 2.48*1.19*1.78 | 24v/3.3kw | 2360
YG1012 | 10 | 320 | 2.27*1.12 | 2.48*1.19*1.91 | 24v/3.3kw | 2640
YG1214 | 11.8 | 320 | 2.27*1.12 | 2.48*1.19*2.03 | 24v/4.5kw | 2980
YG1416 | 13.7 | 230 | 2.64*1.12 | 2.85*1.25*2.105 | 24v/4.5kw | 3600

Technical specifications

• Brand: YG Machinery.
• Available models: YG0608SP, YG0608, YG0810NP, YG0810, YG1012, YG1214, YG1416 (see parameter table for per-model details).
• Working heights: typical tracked models from ~5.8 m up to ~13.7 m; tracked models commonly max around 14 m.
• Platform sizes: standard approx 2.1 m × 1.1 m; some models with platform sizes down to 1.67 × 0.74 m or up to 2.64 × 1.12 m.
• Rated loads vary by model (examples in table: 230 kg, 320 kg, 450 kg).
• Lifting motor: common configuration 24 V with 3.3 kW or 4.5 kW depending on model.
• Weights: model-dependent (range example: 1,580 kg to 3,600 kg).
• Gradeability: approximately 30° for standard 8 m tracked model.
• Safe longitudinal slope operation: up to ~15° on specific models.
• Self-leveling: automatic system corrects platform angle in under 5 seconds to maintain stability and safety factor.
• Ground pressure: average ≈5 psi for tracked platforms (lower than many wheeled all-terrain lifts).
• Track width (typical): ~250 mm.
