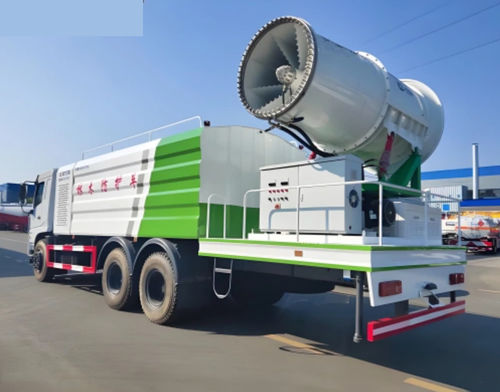

Temperature control fog cannon YG series

for disinfectiondust controlmobile

Overview
Fog cannon dust suppression systems of the YG series provide targeted dust control for industrial and municipal applications. The system captures and agglomerates airborne particulates using micron-sized droplets (typically 30–200 μm), achieving dust reduction rates above 90% in appropriate conditions. Configurations cover short to very long ranges (10–150 m) and allow multi-purpose use (cooling, disinfection, pesticide spraying).

Working Principle
The system uses liquid atomization and air-jet propulsion. A high-pressure pump supplies water to 304 stainless steel nozzles that generate micro-droplets (30–200 μm). These droplets increase collision probability with PM2.5/PM10 particles, causing capture and settling by agglomeration and weight.

Core Parameters
Model: YG-30 | YG-40 | YG-50 | YG-60 | YG-100
Horizontal Range: 30 m | 40 m | 50 m | 60 m | 100 m
Fog Size: 40–200 μm | 40–200 μm | 40–200 μm | 40–200 μm | 30–200 μm (YG-100 configurable 30–150 μm for fine dust)
Fan Diameter: 500 mm | 500 mm | 700 mm | 700 mm | 1200 mm
Fan Length: 1.25 m | 1.5 m | 2.1 m | 2.1 m | 2.55 m
Voltage: 380 V standard for all models
Fan Power: 3 kW | 5.5 kW | 15 kW | 18.5 kW | 55 kW
Water Pump Power: 3 kW | 3 kW | 5.5 kW | 5.5 kW | 11 kW
Dimensions: 1.35×1×1.6 m | 1.65×1×1.75 m | 1.8×1.2×2.1 m | 1.8×1.2×2.2 m | 2.7×2×2.3 m

Key Features

• Adjustable range from 10 to 150 meters to suit small workshops through large ports and yards.
• Droplet size typically 30–200 μm (YG-100 option 30–150 μm for fine dust control).
• Power options: fan 3–55 kW and pump 3–11 kW to match site performance requirements.
• Water-efficient atomization: micro-droplet operation reduces water usage compared with conventional sprays (reported ~70–80% savings).
• Movement: 350° horizontal rotation and 0–60° pitch; supports manual or long-distance remote control.
• Multi-function: can be repurposed for cooling, disinfection, or pesticide application by changing spray media.
• Installation modes: fixed (concrete base) or mobile; options for diesel generator power or filtered water in special environments.

Applications

• Industrial sites: mines, quarries, ports and material yards for large-scale dust control to meet regulatory requirements.
• Municipal works and demolition: pre-demolition and active demolition dust mitigation in urban areas.
• Other uses: stadium cooling/humidity control, agricultural spraying, temporary or permanent deployment indoors or outdoors.

Maintenance & Installation Notes

• Fixed installation: concrete foundation recommended (example 1.2 × 1.2 m) for stable operation.
• Mobile installation: ensure ground bearing capacity ≥ 5 tons to withstand vibration and movement.
• Nozzle alignment: align nozzles within 10° of the principal dust dispersion direction for optimal capture.
• Daily: clean nozzles and verify stable water pressure (recommended 0.6–1.5 MPa).
• Monthly: replace filters and inspect fan blades for wear.
• Annual: overhaul pumps and replace aging seals; estimated annual maintenance cost ≈ 3% of equipment price.

Technical specifications

• Commercial designation: YG series (YG-30, YG-40, YG-50, YG-60, YG-100).
• Effective horizontal range: model-dependent 30–100 m (system configurable 10–150 m).
• Droplet size range: typically 30–200 μm (YG-100 configurable finer).
• Fan power range: 3 kW to 55 kW.
• Pump power range: 3 kW to 11 kW.
• Voltage: 380 V standard.
• Main dimensions: from ~1.35×1×1.6 m to ~2.7×2×2.3 m.
• Rotation & tilt: 350° horizontal rotation; 0–60° pitch; remote control supported.
