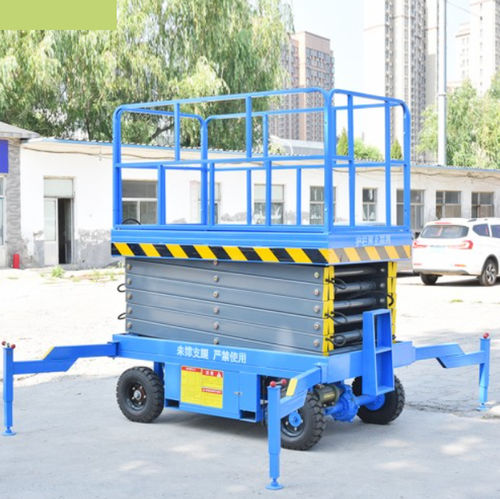

Mobile scissor lift YG series

wheeledself-propelledelectric

Overview
20 ft (approx. 6 m) scissor lifts are used for a wide range of construction, maintenance and installation tasks. Typical units deliver a maximum working height of about 26–27 ft (≈8 m) and platform loads from 230 kg up to 500 kg depending on the model. Available drive and control options include semi-automatic mobile hydraulic versions and fully self-propelled electric units suitable for indoor and outdoor work.

Key Features

• Typical maximum working height: ~26–27 ft (about 8 m).
• Platform capacity: up to 500 kg on lower-height models; reduced to ~320–350 kg on models above ~10 m.
• Drive types: semi-automatic mobile hydraulic (manual positioning), fully self-propelled electric (platform-driven), tracked versions for rough terrain.
• Lift speed: some electric models reach full height in ~60 seconds.
• Battery operation: electric units commonly support a typical 8-hour shift on a full charge, subject to duty cycle and load.
• Semi-automatic models: mechanical outriggers and rapid setup (outriggers deploy within ≈5 minutes).

Spec Breakdown: Working Height Versus Platform Height

• 20 ft typically refers to platform height (≈6 m).
• Maximum working height is generally 26–27 ft (≈8 m).
• Models exceeding 10 m platform height commonly have reduced platform capacity to meet safety limits (≈320–350 kg).

Scissor Lift for Sale Parameter
Model | Up(m) | Load(kg) | Platform size(m) | Outline dimensions/guardrail folding(m) | Lifting motor | Weight(kg)
YG0608SP | 5.8 | 230 | 1.67*0.74 | 1.86*0.76*1.84 | 24v/3.3kw | 1580
YG0608 | 6 | 450 | 2.27*1.12 | 2.48*1.19*1.66 | 24v/3.3kw | 2170
YG0810NP | 8 | 230 | 2.27*0.81 | 2.48*0.83*1.99 | 24v/3.3kw | 2260
YG0810 | 8 | 450 | 2.27*1.12 | 2.48*1.19*1.78 | 24v/3.3kw | 2360
YG1012 | 10 | 320 | 2.27*1.12 | 2.48*1.19*1.91 | 24v/3.3kw | 2640
YG1214 | 11.8 | 320 | 2.27*1.12 | 2.48*1.19*2.03 | 24v/4.5kw | 2980
YG1416 | 13.7 | 230 | 2.64*1.12 | 2.85*1.25*2.105 | 24v/4.5kw | 3600

Budget-Friendly Option — Semi-Automatic Mobile Hydraulic Lift

• Semi-automatic mobile hydraulic lifts are typically the most cost-effective choice; indicative retail pricing often falls below 4,000 USD depending on model and options.
• Manual movement models require physical effort but are easy to reposition for units under ~10 m.
• Mechanical outriggers ensure stable deployment with short setup times.

Full Automation Advantage — Electric Scissor Lift

• Fully self-propelled electric units allow the operator to drive from the platform, improving productivity on larger sites.
• Electric models typically provide faster lift cycles and extended operation when battery management and charging are correctly planned.

Safety: Outrigger Stability and Wind Speed

• Semi-automatic machines must use outriggers for stability; recommended maximum ground slope is ≤ 3° for safe deployment.
• Operating wind limits are commonly certified up to 12.5 m/s; site-specific restrictions may apply.
• Tracked versions improve stability on uneven or loose surfaces.

Site Adaptability

• Wheeled self-propelled models typically offer gradeability around 25% for mild ramps.
• Tracked versions are recommended for rough terrain with stones or potholes.
• Three-wheel mobile hydraulic lifts can be a compact, economical driving alternative in some regions.

Productivity — Lift Speed and Setup Time

• Quick lift designs reduce operator waiting time; semi-automatic lifts enable very fast deployment.
• Fast-deploy outriggers and minimal site preparation improve overall jobsite efficiency.

Application Scenarios

• Indoor renovations commonly use 10 m self-propelled electric scissor lifts.
• Outdoor façade and maintenance work often uses 14 m semi-automatic models.
• Combining a semi-automatic unit (for higher reach) with a fully automatic unit (for mobility) is recommended for mixed-site workflows.

Technical specifications

• Typical working height: up to ≈8 m (26–27 ft).
• Platform height example: 6 m (20 ft) models (YG0608 / YG0608SP).
• Platform capacities: up to 500 kg for lower-height models; 320–350 kg for models above 10 m.
• Available models: YG0608SP, YG0608, YG0810NP, YG0810, YG1012, YG1214, YG1416 (see parameter table above).
• Typical lifting motors: 24v/3.3 kW or 24v/4.5 kW depending on model.
• Weights range from ≈1,580 kg to ≈3,600 kg depending on configuration.
