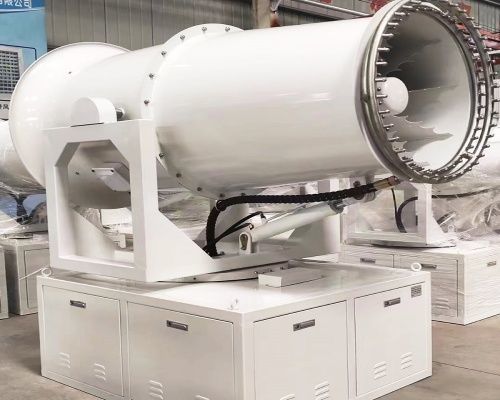

Environment sanitization fog cannon YG series

dust controlfor disinfectionfor odor control

Overview
Many sites face dust, odor and large-area disinfection challenges. The YG series water mist cannon generates a fine mist that covers wide areas and is designed for industrial and municipal projects. The system includes a tank, pipes, high-pressure pump, nozzle set, axial fan, rotation mechanism, control box and remote control. Units can be configured for local voltage and selected pump materials depending on the fluid.

Core Features and Working Principle

• High-pressure plunger pump forces water through stainless-steel nozzles; high-speed flow breaks liquid into droplets (typically 40–200 μm)
• Axial fan projects the mist over long distances to extend coverage
• Complete system: tank, pump, nozzles, fan, rotation mechanism, control box and remote
• Compatible with treated wastewater, pesticides or disinfectants (pump material must be selected according to liquid)
• Available in standard and industrial versions; industrial models may include variable-frequency drives for stable long-range pressure

Key Advantages

• Fine mist with reduced water consumption compared to conventional sprinklers
• Automatic rotation to eliminate blind spots and simplify operation
• Selectable pump materials (stainless steel or ceramic) for chemical resistance
• Optional heavy-duty filters for dusty environments
• Range configurable from 30 m up to and beyond 100 m depending on model

Technical Parameters

• Model: YG series (YG-30, YG-40, YG-50, YG-60, YG-100)
• Horizontal range: 30 m | 40 m | 50 m | 60 m | 100 m
• Fog droplet size: 40–200 μm (YG-100: 30–200 μm)
• Fan diameter: 500 mm | 500 mm | 700 mm | 700 mm | 1200 mm
• Fan length: 1.25 m | 1.5 m | 2.1 m | 2.1 m | 2.55 m
• Voltage: standard 380 V (custom voltages available)
• Fan power: 3 kW | 5.5 kW | 15 kW | 18.5 kW | 55 kW
• Water pump power: 3 kW | 3 kW | 5.5 kW | 5.5 kW | 11 kW
• Dimensions (L×W×H): YG-30 1.35×1×1.6 m; YG-40 1.65×1×1.75 m; YG-50 1.8×1.2×2.1 m; YG-60 1.8×1.2×2.2 m; YG-100 2.7×2×2.3 m
• Materials/options: stainless-steel nozzles; optional ceramic or stainless-steel pumps; optional heavy-duty filters

Applications

• City cleaning and municipal projects
• Dust suppression in mines and quarries
• Agricultural and forestry spraying
• Landfill odor control
• Dust control at steel plants, coal yards and ports
• Public-area disinfection
• Construction site dust suppression

Case Study
At a quarry in Australia a YG-100 industrial water mist cannon with automatic rotation and a filter system was installed. After commissioning, dust levels decreased by over 70%, water consumption fell and site safety improved.

FAQ

• Can the cannon spray disinfectant? — Yes. Use a ceramic pump for most disinfectants; choose a stainless-steel pump for chlorine-based liquids.
• What is the difference between standard and industrial models? — Industrial versions may include a variable-frequency drive, higher range and more stable pressure for continuous long-range operation.
• Are the nozzles durable? — Nozzles are stainless steel; spare nozzles are supplied for hard-water sites.

Technical specifications

• Series: YG series (YG-30, YG-40, YG-50, YG-60, YG-100)
• Range options: 30 m, 40 m, 50 m, 60 m, 100 m
• Fog droplet size: typically 40–200 μm (YG-100: 30–200 μm)
• Fan diameters and powers vary by model
• Water pump power options: 3 kW, 5.5 kW, 11 kW
• Voltage: standard example 380 V; custom voltages available
• Typical dimensions per model listed above
• Materials/options: stainless-steel nozzles, ceramic or stainless-steel pumps, heavy-duty filters
• Components supplied: tank, high-pressure pump, nozzle set, axial fan, rotation system, control box and remote
