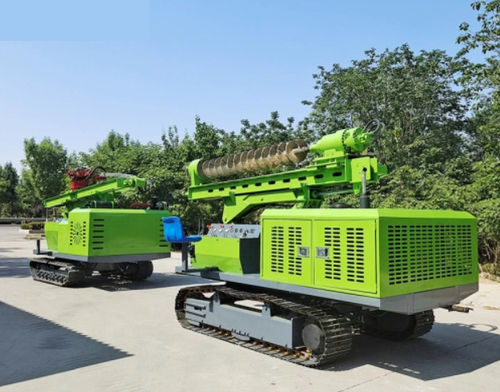

Hydraulic pile driver

for photovoltaic applicationswith H-beam clamp

Overview
The Solar Pile Driver Machine by YG Machinery is designed for high‑productivity ground‑mounted PV installations. It combines precise piling, fuel‑efficient powertrain and options for hydraulic or crawler configurations to match site conditions and pile types.

Key Performance & Efficiency

• Daily production: typical output up to ~450 piles per day under standard working conditions.
• Fuel consumption: efficient engine operation at approximately 8–10 L/hour (stated range).
• Remote diagnostics: built‑in remote monitoring reduces fault finding time and supports faster on‑site recovery.

Hydraulic photovoltaic pile driver (parameters table)
Overall dimensions | 4700*2100*2800 mm
Drill pipe rotational speed | 180 r/min
Track shoe width | 400 mm
Gradability | 30°
Motor | 4108
Rock hardness | 6–20F
Drilling diameter | 80–500 mm
Slide tilt angle | 120°
Drilling depth | 0–6 m
Drill arm swing angle | left and right 150°
Reducer torque | 13000 N·m
Slide swing angle | left and right 40°
Mainstream pump | triple pump
Driving speed | 0–3 km/h
Oil pump | 40/40/32

Crawler photovoltaic pile driver (parameters table)
Overall dimensions | 4700*2200*2800 mm
Hydraulic hammer flow | 50–110 L/min
Track shoe width | 400 mm
Impact frequency | 350–800 BPM
Motor | 4108
Hydraulic system pressure | 25 MPa
Generator power | 88 kW motor
Strong wind for heat dissipation | yes
Drilling depth | 0–6 m
Oil pump | 40/40/32
Drilling diameter | 80–600 mm
Driving speed | 3 km/h

Critical hydraulic & impact data

• High hydraulic system flow (up to ~100 L/min stated) enables increased hammer frequency and stronger impact force for compacted soils and fractured rock layers.
• Hydraulic flow, hammer flow and impact frequency are the primary factors determining piling speed and penetration capability.

Precision & Mast Tilt

• Piling accuracy: positioning tolerance under 2 mm for alignment-critical PV racking.
• Mast tilt: adjustable mast tilt up to 15° to correct verticality on sloped or uneven terrain.

Terrain Adaptability

• Ground clearance / track shoe width: 400 mm to improve mobility on rough or soft ground.
• Drilling depth: nominal 0–6 m; integrated hydraulic drill available for pre‑drilling up to 3 m in specified scenarios.

Applications & Use Cases

• Engineered for large ground‑mounted PV farms, Agri‑PV installations (adjustable pile height for crop clearance) and Fisheries‑PV sites with soft or submerged soils.
• Compatible with multiple pile profiles (H‑beams, C‑channels) to accelerate installation schedules and reduce total cost of ownership.

Maintenance & Serviceability

• Modular component layout allows faster on‑site maintenance and replacement of wear parts.
• Remote diagnostics and monitoring shorten troubleshooting cycles and minimize downtime.

Technical specifications

• Product name: Solar Pile Driver Machine
• Brand: YG Machinery
• Daily production (typical): ~450 piles/day
• Fuel consumption: ~8–10 L/hour (stated range)
• Piling accuracy: error margin < 2 mm
• Mast tilt angle: up to 15°
• Hydraulic system flow (stated): up to 100 L/min; hydraulic hammer flow (crawler): 50–110 L/min
• Impact frequency (crawler): 350–800 BPM
• Hydraulic system pressure: 25 MPa (crawler)
• Reducer torque (hydraulic version): 13000 N·m
• Drive motor reference: 4108
• Generator power (crawler): 88 kW motor
• Drive speed: 0–3 km/h (hydraulic); 3 km/h (crawler)
• Drilling diameter range: 80–500 mm (hydraulic); 80–600 mm (crawler)
• Drilling depth (product parameters): 0–6 m (both variants); integrated hydraulic drill for pre‑drilling up to 3 m in specific contexts
• Overall dimensions: 4700*2100*2800 mm (hydraulic); 4700*2200*2800 mm (crawler)
• Track shoe width / ground clearance: 400 mm
• Main pump (hydraulic): triple pump; oil pump spec: 40/40/32
• Strong‑wind heat dissipation: yes (crawler)
