Environment sanitization fog cannon YG series

dust controlfor disinfection

Overview

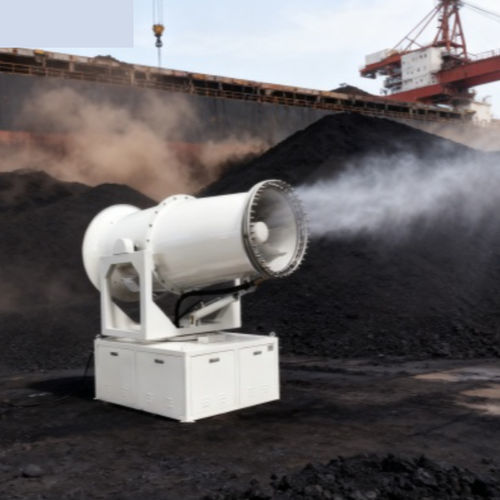

The YG Machinery YG Mist Cannon series is a high-pressure water mist system designed for industrial and municipal dust suppression, including PM10 and PM2.5 control. It uses micro-droplet atomization to generate droplets that collide with airborne particulates, increasing particle mass and accelerating settling. Typical deployment environments include quarries, ports, demolition sites, waste treatment and municipal sanitation.

Key technical and design highlights

• Micro-droplet atomization tuned for PM10 / PM2.5 control (droplet size overlaps target particulate range).
• High-pressure piston water pump for stable, long-hour operation.
• Main body constructed from galvanized pipe; fan blades in aluminum alloy for corrosion resistance.
• Nozzle clogging mitigation: industrial models include filters; spare nozzles supplied to facilitate maintenance.
• Custom motor voltage options available for international deployment.

Micro-Droplet Technology (mechanism)
The system atomizes water into micro-droplets approximating PM10/PM2.5 sizes. These droplets collide and coalesce with suspended particulates, increasing effective mass and causing particles to fall out of suspension, delivering sustained reduction of airborne PM concentrations in the working area.

Durability and maintenance
The product emphasizes pump durability and corrosion resistance: piston pumps provide consistent pressure for extended operation; galvanized piping and aluminum-alloy fan blades increase service life in harsh environments. Nozzle clogging is influenced by water quality; industrial configurations include filtration and spare nozzle kits to reduce downtime.

Applications and typical success cases
Used across environmental protection and industrial production sites. Common applications: stone processing, waste treatment centers, coal storage at ports, demolition projects and municipal sanitation/disinfection.

• Moroccan port: industrial-grade YG Mist Cannons used for continuous dust control over coal storage zones and adjacent communities.
• Construction site (Berlin, Germany): units deployed to meet PM10 / PM2.5 compliance during demolition works.

Frequently Asked Questions (selected)

• How are different voltages supported? Motors can be specified to the customer's local voltage to enable international deployment.
• What is included in the equipment price? Quoted pricing typically covers the equipment plus after-sales support such as remote technical guidance and spare parts supply.
• How is nozzle clogging prevented? Prevention depends on water quality. Industrial models include filters; a filter is recommended where water quality is poor. Spare nozzles are supplied to reduce maintenance interruptions.

Parameters table (extracted from product page)
Model | YG-30 | YG-40 | YG-50 | YG-60 | YG-100
Horizontal Range | 30m | 40m | 50m | 60m | 100m
Fog Size | 40-200μm | 40-200μm | 40-200μm | 40-200μm | 30-200μm
Fan Diameter | 500mm | 500mm | 700mm | 700mm | 1200mm
Fan Length | 1.25m | 1.5m | 2.1m | 2.1m | 2.55m
Voltage | 380V | 380V | 380V | 380V | 380V
Fan Power | 3kw | 5.5kw | 15kw | 18.5kw | 55kw
Water Pump Power | 3kw | 3kw | 5.5kw | 5.5kw | 11kw
Dimension | 1.35*1*1.6m | 1.65*1*1.75m | 1.8*1.2*2.1m | 1.8*1.2*2.2m | 2.7*2*2.3m

Technical specifications

• Series / product family: YG Mist Cannon (models: YG-30, YG-40, YG-50, YG-60, YG-100).
• Horizontal range options: 30 m, 40 m, 50 m, 60 m, 100 m.
• Fog (droplet) size range: typically 40–200 μm (YG-100: 30–200 μm).
• Fan diameters: 500 mm to 1200 mm depending on model.
• Fan power range: 3 kW to 55 kW (model dependent).
• Water pump power: 3 kW to 11 kW (piston pump design for durability).
• Standard voltage shown: 380 V (custom motor voltage options available).
• Key materials: galvanized piping, aluminum-alloy fan blades.
• Maintenance: filter options for industrial models; spare nozzles included to address clogging concerns.
