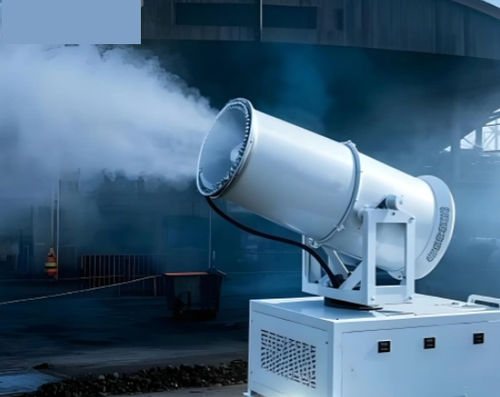

Odor control fog cannon YG series

dust bindingfor environment sanitizationfor disinfection

Overview
A dust control cannon (fog cannon) converts water into a fine mist (typically 30–200 micrometers) using a high‑pressure pump and an industrial fan to project the mist over long distances. High‑performing units reduce airborne dust concentration by over 70% while saving 60%–80% of water compared with traditional sprinklers. The fine mist promotes particle agglomeration and rapid settling without disrupting site operations or increasing worker health risks.

Applications

• Industrial: mining, quarries, steel plants, coal yards and ports — suppression during extraction, stacking, loading/unloading and transport; compatible with corrosion‑resistant pumps and treated wastewater or additives for multi‑purpose use (dust suppression, deodorization, disinfection).
• Municipal & public works: road dust control, park irrigation, large‑venue disinfection and urban cleaning — automatic rotation and adjustable spray angle for wide coverage.
• Agriculture & forestry: pesticide application and wildfire prevention — even coverage with water savings compared with conventional sprayers.

Parameters of Dust Control Cannon

• YG-30 — Horizontal range: 30 m; Fog size: 40–200 μm; Fan diameter: 500 mm; Fan length: 1.25 m; Voltage: 380 V; Fan power: 3 kW; Water pump power: 3 kW; Dimension: 1.35×1×1.6 m.
• YG-40 — Horizontal range: 40 m; Fog size: 40–200 μm; Fan diameter: 500 mm; Fan length: 1.5 m; Voltage: 380 V; Fan power: 5.5 kW; Water pump power: 3 kW; Dimension: 1.65×1×1.75 m.
• YG-50 — Horizontal range: 50 m; Fog size: 40–200 μm; Fan diameter: 700 mm; Fan length: 2.1 m; Voltage: 380 V; Fan power: 15 kW; Water pump power: 5.5 kW; Dimension: 1.8×1.2×2.1 m.
• YG-60 — Horizontal range: 60 m; Fog size: 40–200 μm; Fan diameter: 700 mm; Fan length: 2.1 m; Voltage: 380 V; Fan power: 18.5 kW; Water pump power: 5.5 kW; Dimension: 1.8×1.2×2.2 m.
• YG-100 — Horizontal range: 100 m; Fog size: 30–200 μm; Fan diameter: 1200 mm; Fan length: 2.55 m; Voltage: 380 V; Fan power: 55 kW; Water pump power: 11 kW; Dimension: 2.7×2×2.3 m.

Core Technical Advantages

• Fine mist and water saving: adjustable particle size 30–200 μm; water savings of 60%–80% vs. traditional sprinklers and reduced site waterlogging.
• Automatic operation: ±360° horizontal rotation and -10°–85° tilt; supports remote control and automated schedules.
• Material adaptation: optional stainless‑steel or ceramic pumps for use with corrosive liquids, disinfectants or treated wastewater.
• Flexible customization: range options 30–100 m; voltage and configuration customized per market and industrial requirement.

Success Cases (summaries)

• Case 1 – Australian quarry: installation of YG-100 with automatic rotation and heavy‑duty filtration achieved ~75% reduction in dust levels, lower water use vs. sprinklers, reduced worker sick leave and improved operational efficiency.
• Case 2 – Spanish steel plant: YG unit with stainless‑steel pump and frequency converter stabilized pressure in corrosive conditions, met environmental standards, reduced equipment corrosion and lowered annual maintenance costs.

Technical specifications

• Product family: YG series dust control cannons (models: YG-30, YG-40, YG-50, YG-60, YG-100).
• Effective horizontal range: 30–100 m depending on model.
• Mist size: adjustable, typically 30–200 μm (most models 40–200 μm; YG-100 30–200 μm).
• Fan diameters: 500 mm, 700 mm, 1200 mm.
• Fan power: 3 kW to 55 kW (model dependent).
• Water pump power: 3 kW to 11 kW (model dependent); optional ceramic or stainless‑steel pumps available.
• Standard voltage: 380 V (customizable for other markets).
• Rotation & tilt: full horizontal rotation (±360°) and wide pitch range (-10° to 85°) with remote/automatic control.
• Typical dimensions by model: YG-30 1.35×1×1.6 m; YG-40 1.65×1×1.75 m; YG-50 1.8×1.2×2.1 m; YG-60 1.8×1.2×2.2 m; YG-100 2.7×2×2.3 m.
• Water efficiency: reported savings of 60%–80% vs. traditional sprinklers.
• Multi‑purpose: compatible with disinfectants, pesticides or treated wastewater when appropriate pump materials are selected.
