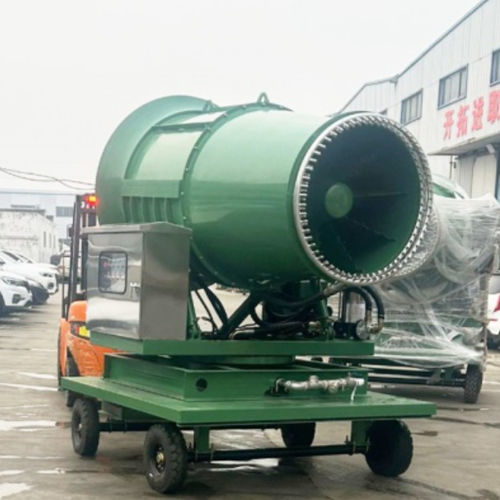

Dust binding fog cannon YG series

for odor controldust controlfor disinfection

Overview
The Dust Suppression Fog Cannon is an industrial misting system engineered to control airborne dust by projecting fine water mist over long distances. The unit atomizes water into micrometre-sized droplets that capture and settle PM10 and PM2.5 particles, rapidly improving air quality on construction sites, quarries, mines and demolition zones.

Working principle
A high-pressure pump feeds fine nozzles while a high-volume fan generates airflow that atomizes the water into micron-sized droplets. The resulting high surface-area mist efficiently binds airborne dust. Standard components include corrosion-resistant stainless steel nozzles and optional ceramic pump units for corrosive liquids or disinfectants.

Technical advantages

• Long-range misting achieved with high-air-volume fans and high-power motors.
• Atomization producing droplets typically in the 30–200 μm range (model dependent) for effective dust capture.
• Durable nozzle materials (stainless steel) and options for full stainless or ceramic construction in corrosive environments.
• Fully automatic variants available with remote control for horizontal and vertical movement.
• Variable Frequency Drives (VFD) available on industrial models for precise fan speed and pump control.
• Motor voltage customizable to match local electrical supply.
• Lower water consumption compared with traditional sprinkling due to efficient atomization.

Parameters (table)
Model | YG-30 | YG-40 | YG-50 | YG-60 | YG-100
Horizontal Range | 30m | 40m | 50m | 60m | 100m
Fog Size | 40–200 μm | 40–200 μm | 40–200 μm | 40–200 μm | 30–200 μm
Fan Diameter | 500 mm | 500 mm | 700 mm | 700 mm | 1200 mm
Fan Length | 1.25 m | 1.5 m | 2.1 m | 2.1 m | 2.55 m
Voltage | 380V | 380V | 380V | 380V | 380V
Fan Power | 3 kW | 5.5 kW | 15 kW | 18.5 kW | 55 kW
Water Pump Power | 3 kW | 3 kW | 5.5 kW | 5.5 kW | 11 kW
Dimension | 1.35×1×1.6 m | 1.65×1×1.75 m | 1.8×1.2×2.1 m | 1.8×1.2×2.2 m | 2.7×2×2.3 m

Q&A (key points)

• Can the unit spray disinfectants? Yes — units can be configured with ceramic pumps and compatible materials for disinfectants and corrosive liquids.
• Why choose fully automatic models? Fully automatic models execute horizontal and vertical movement automatically, improving coverage precision and reducing operator workload.
• How is long-range misting achieved? Long-range performance depends on fan power, air volume and optimized fan design; industrial models use higher power and air throughput. Motors can be adapted to local voltage.

Applications and use cases

• Dust control in mining operations, quarries and coal yards.
• Demolition dust suppression on urban and industrial sites.
• Odour control at landfills and wastewater treatment plants.
• Large-area disinfection and disease prevention when configured with compatible pumps and materials.
• Long-range dust suppression on haul roads and mobile units for demolition where portability and precise coverage are required.

Efficiency and water usage
The fog cannon maximizes droplet surface area to capture dust particles efficiently, enabling high suppression performance with significantly lower water consumption than conventional sprinkling systems—suitable for operations in water-scarce areas.

Automation and control
Control options include remote operation and fully automatic models. Industrial configurations may incorporate VFDs to adjust fan speed and pump operation precisely, reducing manual intervention and enabling fine-tuned coverage patterns.

Specifications

• Models: YG-30, YG-40, YG-50, YG-60, YG-100.
• Horizontal range: 30 m (YG-30) to 100 m (YG-100).
• Fog droplet size: typically 30–200 μm (model dependent).
• Fan diameters: 500 mm, 700 mm, 1200 mm depending on model.
• Fan power range: 3 kW to 55 kW.
• Water pump power: 3 kW to 11 kW.
• Standard voltage: 380 V (motor voltage customizable).
• Dimensions: YG-30 1.35×1×1.6 m; YG-40 1.65×1×1.75 m; YG-50 1.8×1.2×2.1 m; YG-60 1.8×1.2×2.2 m; YG-100 2.7×2×2.3 m.
• Optional materials: stainless steel nozzles standard; ceramic pumps and full stainless construction available for corrosive liquids or disinfectants.
