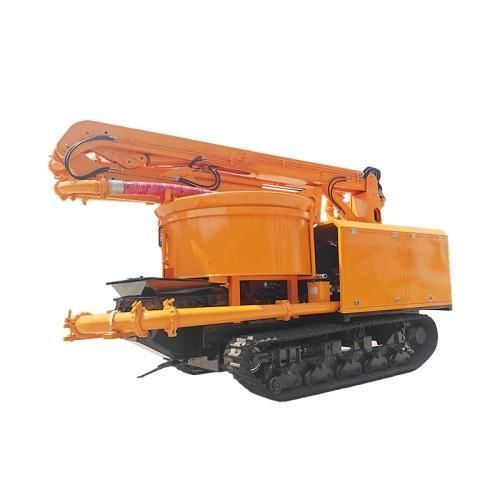

Mixer truck-mounted concrete pump

outdoorrough terrainfor tunnel

Overview
A concrete boom pump places concrete at high elevations or long distances with precision, replacing long manual pipeline setups and significantly reducing site labour. Market options fall into two main groups: truck-mounted concrete pumper trucks and mobile crawler concrete boom pumps.

Key benefits

• Speeds concrete placement and keeps pours continuous to prevent cold joints.
• Remote controls enable accurate targeting of pour locations.
• Integrated mixer options (mixer‑boom pumps) allow on-site batching and placing when ready-mix plants are unavailable.

Why a Concrete Boom Pump is Essential for Modern Construction
A boom pump lets contractors place concrete at high elevations or far distances without long pipeline setups, cutting site labour by a large margin and increasing placing speed and continuity.

Which Job Sites Need a Concrete Boom Pump the Most?
Different job sites demand specific chassis designs and reach heights:

• Urban high-rises & roads: Truck-mounted concrete pumper trucks travel fast on paved highways and move easily between city sites.
• Rural housing & low-rises: Compact 21m to 33m boom pumps with integrated mixers offer fast, self-sufficient pours.
• Muddy grounds & off-road sites: Crawler concrete boom pumps with wide tracks prevent sinking and climb steep slopes.
• Tunnels & bridges: Tracked boom pumps operate in tight spaces and under low clearances, delivering smooth pours.

Practical tips & pro notes

• Check site access roads and ground condition before choosing truck vs crawler — do not select a truck pump if entry roads are unpaved mud.
• For multi‑story buildings, a 5‑section boom (over ~38 m reach) gives notably better placing flexibility.
• Inspect boom welds carefully; high‑quality booms use strong steel plates (example: WELDOX 700) with smooth, even welds.
• Ask for extra wear parts (cutting rings, spectacle plates, rubber hoses) to reduce downtime risk.

Case study summary
A Southeast Asian contractor working in muddy sites replaced truck pumps with a crawler concrete boom pump that included an integrated drum mixer. Results reported: site setup time reduced from ~3 hours to ~20 minutes, overall job efficiency rose by ~40%, and concrete placement cost reduced by about $18 per cubic meter (example outcome from a specific project).

Specifications / technical data

• Typical boom pump output range: 30 to 180 m³/h (standard models vary by configuration).
• Recommended pumping pressure for high‑rise pours: ~8 to 13 MPa.
• Vertical/horizontal reach: choose full boom extension to match highest and farthest pour targets (models available in multiple reach lengths; 38 m and 5‑section booms commonly referenced).
• Hydraulic system: prefer double‑pump, double‑circuit open hydraulics for cooler running and hydraulic cylinder protection.
• Crawler features: wide track shoes to lower ground pressure, improved traction on mud/soft soils, ability to climb steep slopes (tracked chassis for off‑road use).
• Mixer‑boom option: integrated drum mixer enables on‑site batching and placing when ready‑mix supply is limited.
• Structural quality: high‑strength steel plates and high‑quality welds (e.g., WELDOX 700) recommended for boom durability.
