| Electromagnetic disk brake systems - Extremely quiet operation | Effective solution for large braking torques | Mechanical and electrical release | Redundancy capability acc. EN 81 when two or more brakes are used |
|
Positive Stopping. Reliable holding.
Designed for maximum flexibility and long, dependable service, our electric braking is electromagnetically released when voltage is applied and spring-engaged when current is interrupted.
Features include:
• Heavy-duty friction disc for long service life
• Fully epoxy-potted coil
• Easy-to-adjust wear suppliers of bolt compensates for friction surface wear and extends brake life
• Conservatively rated helical springs
• Wall or bearing specification mounted
• Many different voltages available

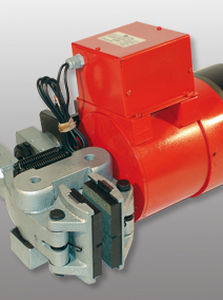

MK Electrically Released Calipers
Powerful floating caliper design can be used on conventional disc or rail applications. The compact spring-applied design provides easy installation and maintenance. Spring force and air gap can be adjusted to match torque requirements.
|
|

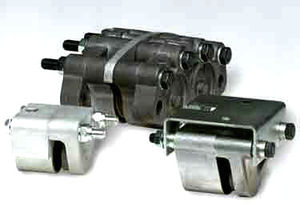

| Seven different styles. Effective piston areas ranging from 1 to over 9 square inches. Aluminum, or iron construction. Maximum pressure ratings between 1000-1500 PSI. Options (depending upon the series selected) include floating bracket, EPR professional seals, retractable piston(s) and sintered metallic friction material. |
|
| Four different styles with maximum lever forces ranging from 225-660 lbs. Aluminum or iron construction. Options (depending upon the series selected) include floating bracket and various lever positions. |
|
| Three different styles with effective piston areas ranging from 1 to 4 square inches. Single and double acting models. Aluminum construction. Rated for a maximum pressure rating of 100 PSI. Optional floating bracket, EPR professional seals and retractable piston(s). |
|
| Five different styles with maximum pressure ratings of 1500 PSI. Selected models are available in aluminum or iron. EPR professional seals are available on most models. |
|
Twiflex offer the largest range of industrial disc professional brake calipers in the world.
Our engineering experience enables us to specify optimum braking solutions from our comprehensive industrial disc brake product range. Each is selected according to the application requirements and is specified in conjuction with a recommended professional brake pad material.
|
|

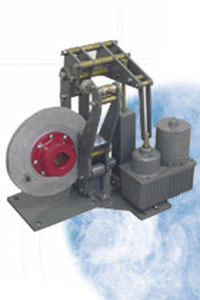

Various designs of electrically operated brakes are available, including the EMX system illustrated. Electrically operated brakes may be used in a variety of applications including; travel motion on cranes, manufacturers of conveyor braking, turbine braking, industrial elevator and escalator braking.
|
|
RINGSPANN- Disc Brakes can be used for various functions, i.e.
as a parking brake it prevents the unintended start of a stationary shaft;
as a stopping brake it brings a rotating shaft to a standstill in a short time, even when this is only in connection with a power failure or emergency stop;
as a control brake it maintains a certain tension in the material.
Brake callipers or brake saddles may be arranged in any position on disc brakes of varying diameters. By using several brake callipers on the same disc it is possible to increase the brake torque without the need to enlarge the installation dimensions to any great extend. All brakes are available with an electric wear indicator and with automatic wear adjustment.
|
|
Most of our industrial brakes are offered in both wet and dry configurations. Variations on shaft and spline sizes are also a common option. In addition, Ausco offers a number of specialty multi-disc brakes for articulated vehicles, mining shuttle cars, etc.
The torque (lib-in) averange from 6000 to 20000
|
|
Wide product range including manual, pneumatic and industrial hydraulic brakes; also available in the failsafe version (spring applied) for safety and emergency applications.
Max. braking force from 150 to 40 000 N. All models equipped with linings wear compensation system, incliend mounting kit and pads self-alignment system.
Available optionals: linings wear indicators, on/off indicator.
SG iron discs available ex stock. |
|
Tried and tested in the past in the aviation and automotive industry and with awareness of operational safety, disc brakes have now become an essential piece of equipment in industrial plants.
RINGSPANN manufacts compact and reliable Disc Brakes for industrial applications with an excellent price level.
Application:
RINGSPANN- Disc Brakes can be used for various functions, i.e.
as a parking brake it prevents the unintended start of a stationary industrial shaft;
as a stopping brake it brings a rotating shaft to a standstill in a short time, even when this is only in connection with a power failure or emergency stop;
as a control brake it maintains a certain tension in the material.
Brake callipers or brake saddles may be arranged in any position on disc brakes of varying diameters. By using several brake callipers on the same disc it is possible to increase the brake torque without the need to enlarge the installation dimensions to any great extend. All brakes are available with an electric wear indicator and with automatic wear adjustment.
|
|
Light to heavy duty braking applications are served by these fast-acting calipers. Sensitive and rapid response to air pressure level also makes them ideal for tension control applications.
Friction pads are secured by quick-release clips.
The MS, MX and GMRP series have spring retraction to insure ample pad clearance when the professional brake is released. The MS and MX series have an interchangeable range of air suppliers of actuators
|
|
Design Features
- Failsafe Protection.
- Long wear life.
- Quick, smooth stopping.
Wichita Spring-Set Air Release Motor Brakes are ideal for failsafe protection of process equipment. Available in foot mounted and C-face options, this improved design has thicker friction discs for longer wear life. The fast acting Spring-Set actuation assures quick, smooth stops.
|
|
With hand drive operation, pneumatic, hydraulic. To slow down, stop, maintain, control. Emergency stop for lack of pressure. Automatic offsetting and continues wear of the trimmings to guarantee a constant air-gap.
Couples to 37.500 Nm.
|
|
| Disc brakes to slow down, stop, maintain, control. Automatic offsetting or manual of the wear of the trimmings to guarantee a constant air-gap. Standard fixing centers horizontal or vertical |
|
Ogura’s multiple disk clutches and brakes come in both a dry or “wet” type. The wet (in oil) type can run approximately 3 times faster than that dry type. This is because the oil helps dissipate heat generated at higher RPMs, but you may find it surprising that the wet type can also produce higher operating torque, both statically and dynamically.
Ogura products are manufactured in Europe, North and South America and Asia. Manufacturing plants are ISO9001, 14001 and TS16949 compliant. Clutches and brakes are RoHS compliant.
UK, European and Scandinavian customers please contact Michel Hehnen at mhehnen@ogura-clutch.com. All other inquiries should go to Jim Andes at jandes@ogura-clutch.com. |
|
Most of our brakes are offered in both wet and dry configurations. Variations on shaft and spline sizes are also a common option. In addition, Ausco offers a number of specialty multi-disc brakes for articulated vehicles, mining shuttle cars, etc.
|
|
SB38
Application:
- Main Supplier of hoist, Boom Hoist
Advantages:
- Low maintenance caused by self centering
- Automatic wear compensator
- Symmetric design
- Compact construction
Technical data:
- Adjustable professional brake torque
- Brake torque 21000-40500 Nm
- Brake disc diameter 710-1250 mm
- Weight 510 kg
|
|
| ... products without technical information |
| |
... see all the products in the category
Brakes
|
Ogura’s multiple disk clutches and brakes come in both a dry or “wet” type. The wet (in oil) type can run approximately 3 times faster than that dry type. This is because the oil helps dissipate heat generated at higher RPMs, but you may find it surprising that the wet type can also produce higher operating torque, both statically and dynamically.
Ogura products are manufactured in Europe, North and South America and Asia. Manufacturing plants are ISO9001, 14001 and TS16949 compliant. Clutches and brakes are RoHS compliant.
UK, European and Scandinavian customers please contact Michel Hehnen at mhehnen@ogura-clutch.com. All other inquiries should go to Jim Andes at jandes@ogura-clutch.com. |
|
|
... see all the products in the category
Clutches
|
|
|
