A user-friendly microprocessor-controlled instrument to determine the bending resistance of paper and paperboard!
The Bending Resistance Tester is designed to determine the bending resistance of paper and paperboard using the 2-point bending method.
SPECIFICATIONS
* Choice of 10N or 1000mN load cell
* Min. force sensitivity: 0.5mN with 1000mN load cell
* Selectable bending angle 5.0-90° and test length 5-50mm
* Meets ISO 2493, AS/NZ 1301-4535, BS 3748, DIN 53121, SCAN P29, TAPPI T556
* RS232 serial data output, printer output and analog signal output
* Can be directly calibrated to traceable National standards
FEATURES
* Direct sample to load cell contact aids accurate measurement
* Easy selection of test pararameters from a comprehensive range through a setup menu
* Motorized test length setting
* Instrument can calculate Taber Stiffness units
* Pneumatic clamps with fast release provide consistent clamping pressures for fast, repeatable results
* Large, clear display showing peak value and the angle at which it was achieved
* Load cell fitted with overload protection
* Analog output (use for X-Y recorder—not included)
|
|
Max impact energy(J): 150, 300, 450, 600, 750, 3000
Features:
The model ZBC2000 series pendulum impact tester comes from SANS pendulum impact testing machines series family, fashionable design and complete assembly with SANS high technology satisfied with impact resistance tests of metal material under dynamic loading, It is widely applied into the following industries: manufacturer of metal material, quality control of products, institutes and colleges, R&D.
Comply with ISO R148, ISO R83, EN10045, ASTM E23
Optional computer with software control is available to realize semiautomatic operation. Operator only need charge specimens. Others can be controlled by software.
Optional specimen feeding system is available. Combined with computer and software, fully automatic operation can be realized.
Optional cooling chamber is available to satisfy cold specimen test down to -100 OC
|
|
|
|
|
|
Impact testers are designed to determine the impact energy required to break a sample. This information is crucial to manufacturers,as the strength and durability of the product will often determine performance characteristics and marketability. The TMI Impact Testing System uses a high resolution optical encoder and data acquisition to determine the impact resistance of rigid materials in accordance with a wide variety of ASTM and ISO test standards. Interchangeable pendulums and specimen holders are available to measure the impact resistance of a variety of materials. Common test methods include Izod, Charpy, Tension and Laminate testing. Environmental chambers are also available to deliver CO2 or N2 allowing the characterization of materials at cold temperatures. Essentially the Impact test is a single point test that measures a materials resistance to impact from a swinging pendulum. The mass and drop height deliver a definable kinetic energy.
APPLICATIONS
Plastics, Rubber, Light Metals, Ceramics, Wood, Laminates, Adhesives
STANDARDS Conforms to
ASTM D256 and ISO 180 for Izod,
ASTM D256 and ISO 179 for Charpy
ASTM D1822 for Tension Impact testing
OPTIONS
A complete line of Izod, Charpy, and Tension Impact accessories are available.
FEATURES
• Digital display, storage and editing of up to 500 readings
• Selectable units (J/m, ft•lb./in., kg•cm/cm, ft•lb/in², kg•cm/cm²,
kJ/m²)
• RS-232, settable limits, statistics-average, standard deviation, and
high/low results
• Classification of specimens according to failure category
• Auto calibration - automatically calibrates for windage and friction
• Hammers are quickly and easily interchangeable
|
|
|
|
|
|
The Falling Dart Impact Tester is intended for the determination of mechanical properties of packaging material such as plastic films, laminates and paper.
The tester comprises a horizontal base-plate on which a vertical column of steel has been erected and which on its top carries a release mechanism in which the falling dart can be inserted.
The dart consists of a hemispherical part of aluminium with polished surface and a diameter of 38.1 mm (1.5 in.), having a vertical shaft in the center of the flat top surface. Around the shaft additional weights can be fitted.
On the base-plate in the vertical center line of the inserted dart, a circular clamping device has been fitted. This clamping device consists of a firm and a movable cylinder, both having an inner diameter of 127 mm (5 in.).
By means of a handle operated excenter, a sample can be clamped slippage free between both cylinders.
The bottom of the firm cylinder has been provided with a 2-3 mm thick disc of soft rubber in order to eliminate damage of the falling dart.
SPECIFICATIONS
Falling Height: 660 mm (26 in.)
Weight of falling dart without additional weights: 50 g ± 0.5%
Additional weights: 5 pcs. of 5 g ± 0.5%
25 pcs. of 15 g ± 0.5%
5 pcs. of 100 g ± 0.5%
Falling speed on sample: Approx. 3.5 m/sec.
Meets ASTM Standard D 1709-62 Procedure A
Commercial Standard CS 227-59
TNO-Standard I.v.V. 2.15 1968
|
|
|
|
|
|
Tear testing measures the force required to continue the tearing of an initial cut in sheet materials. Models and weights are available to test material with a variety of strengths. This is also useful to evaluate strength of perforated materials.
Also known as the Elmendorf test, the tearing test has been performed in the paper industry for more than half century in order to measure the mean internal resistance of cellulose or papers to the propagation of a deliberately initiated tear. It enables rapid determination of the dynamic resistance of materials designed to be subjected to strong shearing loads (e.g. newspaper) or liable to be damaged by sharp or heavy objects (e.g. paper bags, seat belts, protective clothing).
FEATURES
- Automatic specimen notching
- Mechanical-pneumatic clamping avoids sample slippage to ensure repeatable results
- Automatic pendulum reset with lifting device
- Tearing force displayed digitally
- RS-232 data output
- Small, table-top instrument
- Maintaining a uniform quality level
- Safety Hood protects operator from injury while pendulum is in motion.
|
|
|
|
|
|
TEAR TESTING
Tear testing determines the force required to continue the tearing of an initial cut in sheet materials. This is also used to evaluate strength of perforated materials such as postal reply cards.
The Monitor/Tear™ is an automated tear tester equipped with an optical encoder, measuring the angular
position of the pendulum during the tearing operation,
and converting this measurement to tear units.
FEATURES
•Digital display
•Storage and editing of up to 500 readings
•Easily interchangeable pendulums ranging from 200g to 6400g
•Auto calibration of pendulum
•RS-232
•Selectable units (percentage, millinewtons, grams)
•Settable limits, Statistics, Average, Standard deviation,
high/low results
•Grips and pendulum releases are pneumatic
•Clamp pressure in psi and kg/cm2
•Calculates and displays average tearing force for single ply values in millinewtons or gram force
•Report printout with optional printer
APPLICATIONS:
Paper, Foil, Film, Textiles, Nonwovens
PENDULUMS
•200 gram pendulum 83-11-02
•800 gram pendulum 83-11-04
•1600 gram pendulum 83-11-05
•3200 gram pendulum 83-11-06
•6400 gram pendulum 83-11-07
•Universal pendulum 200, 400, 800 & 1600 gram pendulums;
the required calibration weights are included 83-11-08
SPECIFICATIONS
Model: 83-11-01
Air: 600 kPa (instrument quality)
Weight: 10.4 kg (23 lbs)
Dimensions W x D x H: 12 in x 12 in x 20 in
(305 mm x 305 mm x 508 mm)
STANDARDS
Conforms to TAPPI T-414, ASTM D1922 and D1424, ISO 1974, CPPA d.9, AS/NZ 1301.400S, BS 4468 and SCAN P-11
Other Models
Standard Elmendorf Tear Tester (TMI 83-10-00)
|
|
|
|
|
|
A highly versatile range of drop weight impact testers for performing a wide range of medium energy tests on materials, specimens and end products of various geometry
Key features:
Laboratory grade instrumentation and very rigid construction for highest accuracy test results.
Guided mass system to ensure that the impact geometry is correct throughout the test.
Highly accurate and repeatable drop parameters.
Very robust construction stands up to the rigours of dynamic testing to provide high reliability with a minimum of downtime.
Easily interchangeable contact parts simplify maintenance and reduce cost of ownership.
Very high levels of safety employing multiple redundant systems, compliant with 89/392/EEC and 91/368/EEC machinery safety directives.
High quality, easy to use control and analysis software ensures consistency and enhances throughput.
Simple service requirements of single phase mains electricity and compressed air reduce installation costs.
Multiple impact facility for fatigue testing.
Wide range of strikers, anvils, fixtures and jigs available for standard test geometries, and for custom testing.
Optional sample strippers for extracting striker from tough ductile specimens.
Optional second impact prevention system for non-penetrating tests.
Optional high velocity impact option for impact velocities up to 20m/s.
Optional dynamic displacement measurement system for direct measurement of the sample deformation.
Optional high speed, fully integrated video system to provide visualization of specimen failure mode.
Optional temperature conditioning chamber, -70°C to +150°C.
|
|
|
|
|
|
Impact testing is designed to measure the performance of an object under high-rate loading. Instron offers a complete range of proven solutions for impact testing both raw material specimens and finished components. Our family of advanced instruments includes: instrumented drop weight towers, servohydraulic high rate systems, and pendulum testers.
Dynatup® 9200 Series Impact Test Machines
Dynatup® 9200 Series Impact Test Systems are suitable for a wide variety of applications requiring low to high impact energies. Designed for testing both raw material specimens and finished components, the 9200 Series is our most advanced and versatile impact test instrument.
Features
High performance test frames with powerful ball screw and motor drive system-less wear and tear versus traditional hoist and cable or bungee cord style systems.
Easy to use operator control panel for precision manual control.
Clear protective doors and panels on all sides for full viewing of test.
Modular crossheads with interchangeable drop weights-change weights safely in seconds.
High bandwidth DSP (Digital Signal Processing) electronics-for greater accuracy.
Impulse™ data acquisition and analysis software-for collecting, analyzing, and reporting detailed impact performance data
Available full computer test setup and control based on user input: impact velocity, energy, or drop height-less operator errors, higher productivity.
High speed data acquisition rates: up to 5 MHz simultaneous sampling-more data where you need it.
|
|
|
|
|
|
A dedicated system for the multi-axial impact testing of flexible sheet film to defined quality standards: ASTM D1709, DIN53373, BSI 2782 method 352D and ISO EN
7765. The test measures the film’s impact resistance and energy absorption characteristics, typically for quality control purposes. As standard the system accommodates films up to 1mm thick and tests with impact energies of up to 95 Joules.
Key Features:
• Designed for ease of use to reduce operator training time.
• A short, highly automated test cycle results in high throughput.
• Very rugged high reliability design suited to production environments.
• Drop height range 50mm to 1200mm continuously variable.
• Impact velocity range 1m/s to 4.85m/s continuously variable.
• Impact energy range 4J to 95J.
• High quality, laboratory grade instrumentation with traceable calibration.
• High resolution data acquisition.
• Full force vs. deformation graph calculated and stored for each test.
• Automatic calculation of all relevant results including failure deformation, failure energy.
• User-defined documentation information stored with each test.
• Automatic save of all data after each test, either to individual automatically named files, or to a test database.
• On screen reporting of selected test results.
• Standard report print-out.
• Export of results to Excel or a text file for independent analysis.
• Responsive life-time technical support.
|
|
|
|
|
|
The High-Speed Integrated Video option is available for any of the Imatek range of impact testers, to greatly enhance understanding of the behaviour of a specimen as it undergoes an impact.
Imatek offer a fully integrated system under the control of the ImpAcqt software. This is used to both control the camera and analyse the resulting video sequence. Since the camera and the data acquisition share the same trigger, data points and images can be precisely correlated. A video sequence provides a great deal of qualitative information about the impact event, and the software also allows quantitative information to be extracted.
High-speed video offers an advantage in many application areas, but is particularly useful when complex structures are being tested, and for high-rate tensile testing.
Either of Imateks two video systems can be operated in stand-alone mode, independently of the impact tester and ImpAcqt software. This makes them general purpose tools that can be used with a wide range of test apparatus and applications, helping to justify the capital outlay.
As standard the HSV option provides a complete package including C3008 data aquisition, software, camera, choice of lenses, lighting controller, lights and tripods/stands.
info@imatek.co.uk
Tel: +44 (0)1438 821624
www.imatek.co.uk
|
|
Pendulum Type Impulsion Experimental Machine is suitable for testing the impulsion toughness of metallic materials. Model CBD electronic impulsion experimental machine adopts Inter monolithic processor 89C52 and 89C51 as the major CPU to carry out the process control, data processing and printing of impulsion esperiments. The experiment is carried out automatically, so are striking and lifting the pendulum.Miniprinter is equipped so that the test risults are easy to be recorded. Automatically recording test results.It can handle impulsion experiments continually.
Main Specifications:
1. Maximum impact energy: 300J
2. Impact speed: 5.2m/s
3. Presaging angle of the pendulum: 150°
4. Distance from the center of tested specimen: 750mm
5. Arc radius of the impulsion cutter: 2mm
6. Angle of the impulsion cutter: 30°
7. Angle definition: 0.1°
8. Power: 300w 380V ± 10%
9. Weight:900kg
|
|
Impact testing machine for metal and non-metallic
Impact test conforms to ASTM, ISO and GB standards with Charpy Izod and Tensile impact includes analogs, digital and computer. It is also with instrumented to get the curves and characteristic data for impact test.
From the applications, it includes:
- Measuring range from 300J up to 800J for metal
- Measuring range from 1J up to 50J for non-metal
- Charpy, Izod, Tensile impact for metal and non-metal
- Instrumented function can be with the impact test
- Lower temperature bath is optional for environment test
|
|
Tinius Olsen manufactures a range of different pendulum impact testers that can be easily changed from a Charpy configuration to an Izod configuration. These testers come in a couple of capacities and are designed primarily for either plastics or metals impact testing.
All testing hardware is fully complemented by Tinius Olsen developed software that turns your hardware into a sophisticated quality analysis system. Be sure to examine the software products to determine which package is right for your application.
|
|
This impact tester has gained wide acceptance in testing the impact resistance of many types of coatings from paints to varnishes to tough plated, plastic or laminated coatings. It is also widely used to establish quality control standards for resistance to impact surface damage and penetration of many construction materials including plastics, resins, fiberglass, sheet metals, and plywood.
Two models are available:
English Model
- Two and four pound weights included
- Maximum allowable force of 80 and 160 inch-lbs
- Round nose punch, 0.625 in (1.59 cm) diameter
- 40 inch guide tube
Metric Model
- One and two kilogram weights included
- Maximum allowable force of 100 and 200 kg-cm
- Round nose punch, 0.625 in (1.59 cm) diameter
- 100 cm guide tube
|
|
|
Taber's Multi-Finger Scratch / Mar Tester is based on the popular "Ford 5-Finger Scratch and Mar Tester" specified in automotive test requirements. It is typically used to measure the relative resistance or susceptibility of a plastic surface to scratching, marring, gouging, scraping and other similar physical damage. Test samples are mounted to a pneumatically driven, moveable sled which drives the sample at a fixed rate of speed under five (5) scratch pins. A gantry supports the five independent splined-fingers which provide a constant, vertical load on interchangeable scratch pins. Each instrument includes a set of five 1mm hemispherical scratch and 7mm hemispherical mar tools along with a nine piece weight set ranging from a 2N to 20N load (optional weights are also available).
|
|
|
The Taber Shear / Scratch Tester is portable instrument is used to evaluate a material's or coating's resistance to shearing, scratching, gouging, marring, scraping or engraving. Specimens (up to 1/2" thick by 4" square) are affixed to a turntable and then a precision cutting tool, which is attached to a balanced and calibrated scale beam, is placed on the specimen. As the turntable rotates the specimen, the cutting tool will scratch or shear the specimen surface. A sliding weight adjusts the load applied on the scratch tool from 0 - 1000g to determine the point of failure. Optional interchangeable scratch tools include a conical diamond tool; diamond scratch tool; and 1.0 mm hemisphere scratch tip. Using the S-20 tungsten carbide tool (contour shear tool), Taber's Shear / Scratch Tester can also be used to evaluate coating adhesion on a variety of materials.
|
|
The TABER® Linear Abraser - Model 5750 [part# 985750] offers the greatest versatility of any Taber instrument available.
Designed to test virtually any size or shape specimen, the Linear Abraser is ideal for material properties of contoured surfaces and finished products. Initially developed to evaluate wear resistance, this instrument can also be used to evaluate scratch resistance (single or multiple pass), color transfer [commonly referred to as crocking or a crockmeter], and perform coin scrape tests. Plus, with the universal or a custom attachment, 'real world' testing and other forms of material durability can be performed. The Linear Abraser can be used for both wet and dry testing.
|
|
|
|
|
|
|
The Taber V-5 Stiffness Tester incorporates a precision pendulum weighing system to measure the stiffness, rigidity (resistance to bending) and resiliency of flexible materials. Nine (9) distinct ranges permit testing of materials that are extremely lightweight and flexible to items that are very rigid. The instrument outputs the moment load applied to the test specimen in TABER Stiffness Units (g • cm). Test specimens are mounted on the Stiffness Tester using the specimen clamp. Located on the pendulum, the lower faces of the specimen clamp jaws are exactly on the center of rotation to ensure a constant test length and deflection angle. Force is applied to the lower end of the specimen by a pair of rollers, which are attached to a driving disc located directly behind the pendulum. As the driving disc rotates, the rollers push against the test specimen and deflect it from its vertical position. In response, the pendulum applies increasing torque to the specimen as it deflects further from its original position. The test point reading occurs when the pendulum mark aligns with the appropriate driving disc mark (7 ½° or 15°), which points to the stiffness reading on the dial plate. Available as a basic unit (Model 150-B) or automatic tester (Model 150-E).
|
|
Mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This machine can be operated semi-automatically. The pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
It is designed and developed according to national standard GB/T3808-2002 (ISO148-1998) "Pendulum Impact Testing Machine"
|
|
Vibrophores
For fatigue testing of materials or components by applying sinusoid loads Zwick Vibrophores offer an economical alternative using the resonance principle with constant or variable amplitude and mean load.
The Zwick vibrophores combine a maintenance-free system with maximum testing speed at minimum energy requirements.
The wide range of nominal loads (from 5 to 500 kN) enables the widest variety of dynamic tests according to the resonance principle.
With suitable add-ons, testing can be carried out under different environmental conditions (temperature, aggressive media), or torsion or bending tests can be performed. Testing can be performed either force controlled or strain controlled. And, of course, testXpert® will support you with harmonized standard and master test programs.
|
|
The test facilities ElectroPuls are pointed systems which function without hydraulics, intended for the dynamic and static tests of materials and the components. They include/understand an advanced numerical control, the last Console software and improvement of the technology of the tests: count with grooves in T for the flexibility of configuration of the tests, jacks electric for the ordering of the cross-piece and a crowd of other ergonomic functions. They are completely electric and do not require any connection with the compressed air, hydraulics, water nor with any other fluid of service.
E3000:
Dynamic capacity: ±3000 NR (±675 lbf)
Static capacity: ±2100 NR (±472 lbf)
Race: 60 mm (2.36 in)
Space available (max.): 855 mm (33.6 in) maximum with jack with semi-race
Power supply: Single-phase power pack
Configuration: Two columns with jack on higher cross-piece
Adjustment of the cross-piece: Electric elevators and latch bars manual
|
|
|
Dynamic and static testing machine is suitable for materials and components test. Frequency from 0.005 upto 50Hz. Load capacity from 50kN up to 1000kN.
|
|
|
The Link Model 2500 Rotary Fatigue Machine is designed to reproduce the forces acting on wheel and brake components as seen in vehicles by controlling the magnitude of the cornering forces consistently to determine the integrity of the test components. This machine is capable of testing rotors, wheels, bearing packs, axle extenders, etc. by mounting the test components vertically to a rotating table and applying a varying load at an adjustable angle.
|
|
|
|
|
|
Constant Tension Tester, CTT is the only yarn test instrument that is available as a mini textile laboratory. The machine allows more than 10 different yarn quality control tests to be run on the same machine.
The unique CTT design provides the ability to test natural and synthetic yarns as well as the high performance yarns such as carbon, glass or hybrid yarns that cannot be tested with conventional capacitive based systems. The CTT uses dynamic test principle to measure the yarn properties. This means every section of the yarn will be tested as the tension on the yarn remains constant.
The CTT test list includes Dynamic Tensile Strength, Elongation, Shrinkage, Friction (Yarn to Pin and Yarn to Yarn),Stick/Slip, Abrasion, Entanglement Count, Lint and Optical Yarn Evenness for hairiness, thick places, thin places, neps and slub count, which are all done on the same machine using different attachments. Switching from one test to another is very easy and it only takes seconds.
Operation
Maintains a pre-selected tension, between 0.5g and 700g, at a selected speed, up to 360 m/min. This function provides the capability to perform different test configurations. It also eliminates the tension variation of the yarn coming off the package.
Versatility
Any measuring head or testing apparatus can be mounted on the basic CTT unit and inserted into the constant tension zone.
Measures every millimeter of yarn at speeds up to 20 km/hour. The basic unit performs two significant tests:
* A. Dynamic Breaking Strength
* B. Weak Spot Detection
Endusers: Yarn manufacturers, fiber producers, weavers and knitters.
|
|
Model: ZBC1400, ZBC1251
Capacity: 4J, 25J
Features:

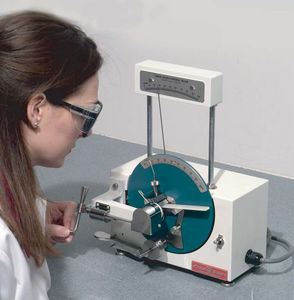

The model ZBC1000 Pendulum Impact Testing Machine is mainly designed to perform special tests for plastic material to determine impact resistance performance under dynamic loading.
It allows continuous impact test for large quantities specimens. Special control panel and display can real-time display impact energy, impact ductility, pendulum raising angels.
Two display methods are available, dial type and digital type (LCD monitor).
It complies with ISO179, ISO180, ASTM D256, ASTM D4812, ASTM D4508, ASTM D950 and other similar standards.
Two models are available
ZBC1400, max Charpy impact energy 4J, max Izod impact energy 2.75J
ZBC1251, max Charpy impact energy 25J, max Izod impact energy 22J
|
|
Model: TVE
- Capacity: Up to 500 Newtons
- Large and removable base plate with various holes for fixture mountings
- Max Tarvel: 297mm from base plate
- Height of upper hook above base plate: 460mm
- Travel distance per knob rotation (stroke): 3.1mm
|
|
- By consistent vertical and horizontal force measuring with the test stand, more accurate measuring becomes possible.
- Select a suitable stand from a wide range of the products according to your requirement.
- Contribute to simplification of testing work and reduction of the labor.
- Recommend to use the stand with the digital force gauges.
|
|
|
|
|
|
FTC STANDARD SHEAR COMPRESSION CELL (CS-1)
The Kramer Shear Cell from Food Technology Corporation is the single most successful test fixture used for food texture measurement as it faithfully reproduces what happens when a product is consumed. The objective measurements made are very closely related to the human experience of chewing foods and is used throughout the world to grade the textural properties of food products ranging from apples to zucchini.
The fixture compresses, shears and extrudes the sample to measure firmness, fibrousness, tenderness and similar mouthfeel properties of food products.
The use of the Kramer Shear Cell means a larger sample size can be tested, which helps to minimise standard deviations in test results, common to tests measuring fewer samples. Particulates, in particular can be easily assessed using this fixture to measure them in bulk rather than more awkwardly in single form.
The FTC Standard Shear Compression Cell or “Kramer” Shear Cell (CS-1) consists of a sample holder, slotted lid and movable blade assembly. The inside of the sample holder measures 2.6” (66mm) wide by 2.6” (66mm) long by 2.5” (64mm) deep, and holds a volume of 16.9 cubic inches (227ml). The cell lid has 10 slots, which accommodate the 10 parallel, 1/8” (3.2mm) thick blades. The movable blades are attached to the load cell and are forced through the test sample producing a force proportional to the sum of both the shear and compression failure point of the test sample.
To find out more about this product, contact FTC now.
|
|
|
|
|
|
TMS LIGHTWEIGHT SHEAR BLADE SET
Food Technology Corporation’s TMS shear blade set has been designed to replicate the specification of the original Warner-Bratzler blade. The test set should be used in conjunction with the TMS standard fixture table on the TMS-Pro or TMS-Console texture analyzers to allow blades to pass completely through samples during shear testing.
Shear blades provide an excellent indication of a cross sectional characteristics. Natural variation
and irregularities present are essentially averaged and accommodated by the blades geometry.
A single blade cuts through the sample creating a combination of shearing, tearing and compression forces. Stress initiates in compression mode until the sample yields and the blades starts to cut into the sample.
Applications include;
• Hardness of nougat bars
• Crumb hardness in fruited cakes
• Stalk softening in frozen broccoli florets
• Ripening changes as indicated by softness in bananas
• Slicing hardness of hard cheeses
• Shear toughness of chicken breast
The test set comprises of a blade holder with 2 locking screws. A central slot allows free movement of the blade to limit friction during analysis. Each blade is manufactured from stainless steel, reversible and 1mm thick. The first blade has a plane flat bottom and a 20mm notched end. The second has a 44mm and a 32mm inverted “V” with small central cut out. The stainless steel blades travel through 35mm high guide arms positioned 50mm apart into a 1.4mm wide slot at the base – these dimensions govern the size of samples used in assembly.
For more information on this and other FTC shearing fixtures, contact us now.
|
|
|
|
|
|
bottle or jar opening tester : ANDITORK EA
The ANDITORK EA bottle or jar opening tester is specially designed to measure opening torques for bottles and jars.
Opening tester with ring securized cap : ANDITORK ST
If the cap has a security ring, the test can be carried out using the ANDITORK ST
Tester for small bottles : MICROTORK
The MICROTORK is specially designed for small bottles, and it is equipped with a small grip plate whose fingers can be used to hold small containers.
Available in Easy and Star versions.
Anditork Security : ANDITORK DL
The ANDITORK DL product is designed to measure opening torques with downward force.This procedure is used to check safety caps.
motorized opening torque measuring instrument : DRIVETORK
The DRIVETORK motorized opening torque measuring instrument is just the right equipment for production teams that have to carry out a lot of opening tests and want to eliminate the variability linked to operators.
Torsion test stand : TWIST
To carry out a precise, repetitive torque measurement,
it is often necessary to use a torsion test
stand.
The TWIST, a 1 to 12 NM torsion test stand
with combined Torque/Angle measurement provides this function.
Torque wrench calibrator : CENTOR Meter W
The CENTOR Meter W torque wrench calibrator enables verification of torque wrenches thanks to a series of reference sensors ranging from 22 to 222 NM.
torque screwdriver calibrator : CENTOR Meter H
A set of low-capacity reference torque sensors enables use of the CENTOR Meter H torque screwdriver calibrator to verify torque screwdrivers from 1 Nm to 6 Nm.
|
|
|
|
